CRL-U.S. Aluminum S250 White KYNAR Offset Pivot Narrow-Stile Pair
CRL-U.S. Aluminum S250 White KYNAR Offset Pivot Narrow-Stile Pair
Regular price
$0.00 CAD
Regular price
Sale price
$0.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CD22252
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview
- Accommodates 1/4” (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit can be installed (glass not included)
- Includes both active and inactive leaf with all standard hardware
- 9-1/2" (241 mm) bottom rail installed for A.D.A. compliance
- Custom fabricated to accept a wide range of optional hardware applications

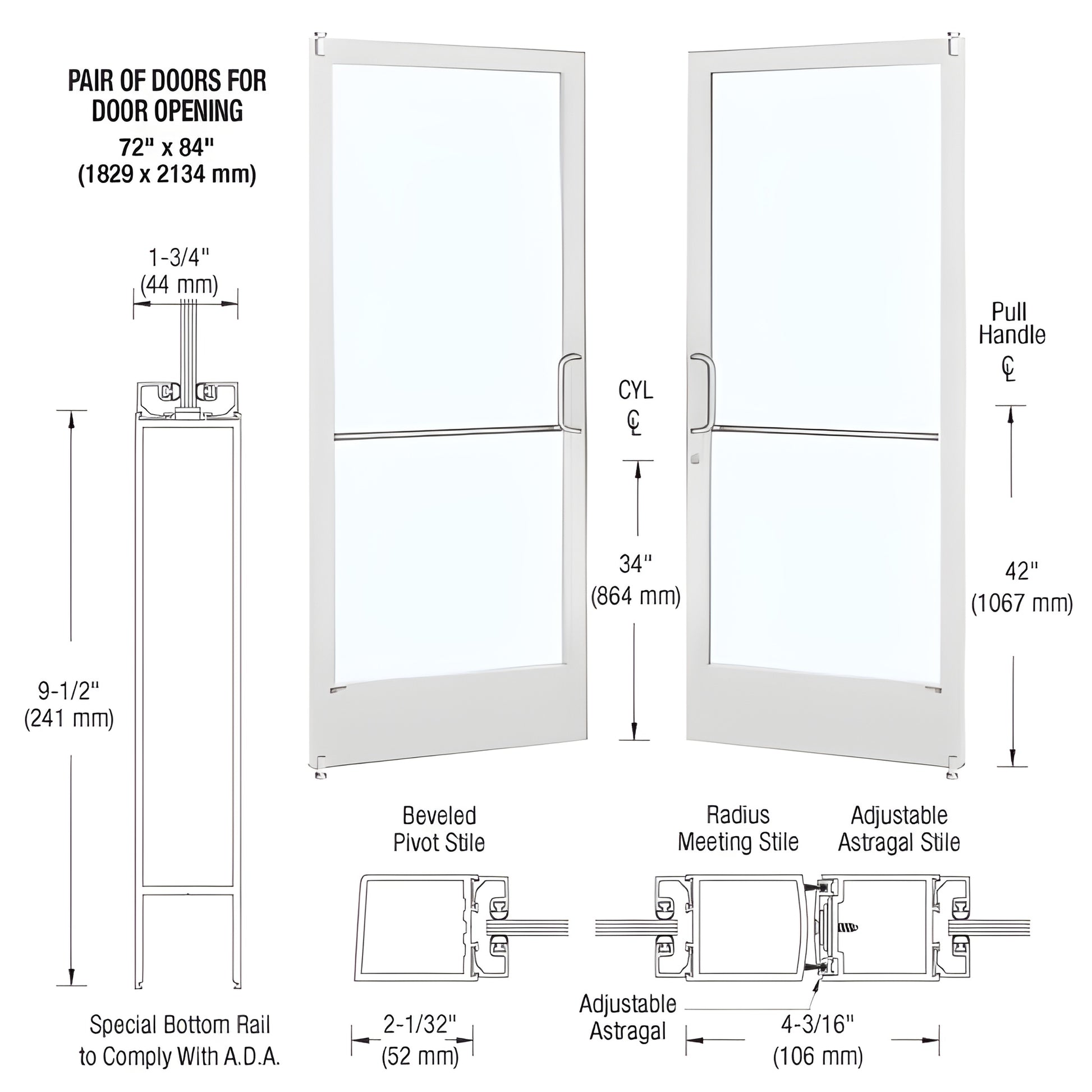

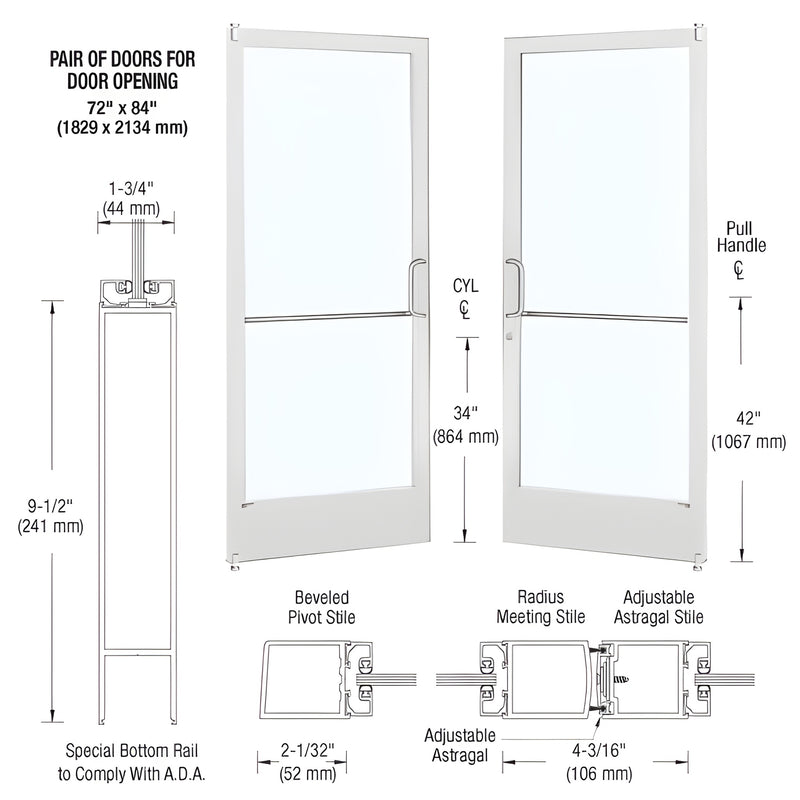

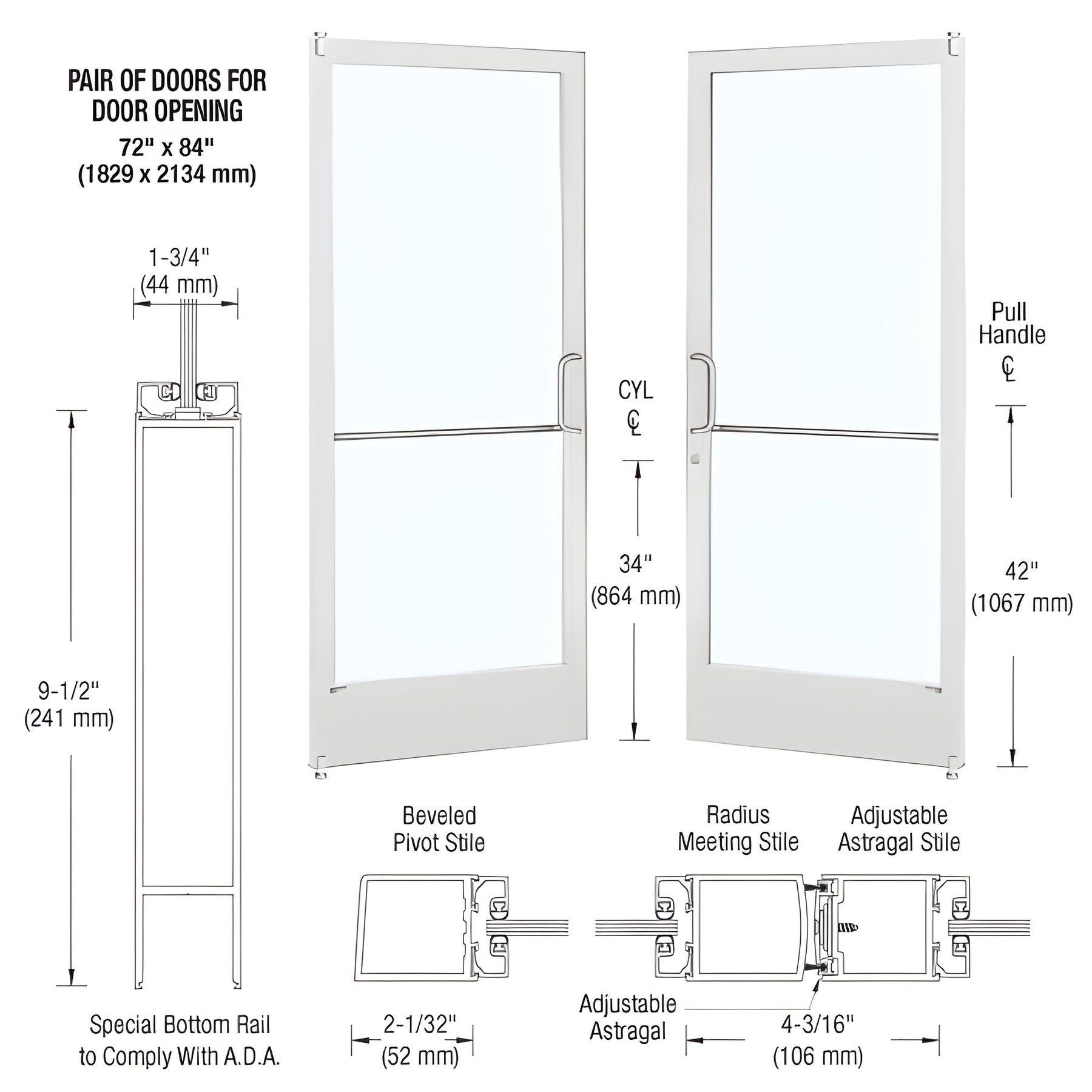

This CRL Custom Narrow Stile Entrance Door (SKU CD22252) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) ADA bottom rail. Designed for commercial storefronts and narrow stile applications, it includes stiles prepared for offset pivot hardware and glass stops sized for 1/4" (6 mm) tempered glass (supplied by others). The door is ready for custom fabrication to accommodate optional hardware and insulating glass units to meet performance needs.
All protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer.
For pricing or to order SKU CD22252, contact CRL Customer Service or place your order online today.
Specifications
BIM Objects - rvt
