Product Details
- Punches Four Holes at Once in Curtain Wall Extrusions to Reduce Shop Fabrication Time
- Easy to Set Up and Operate
- Reduces Shop Fabrication Time
- Hydraulic Operation - 110 Volts AC

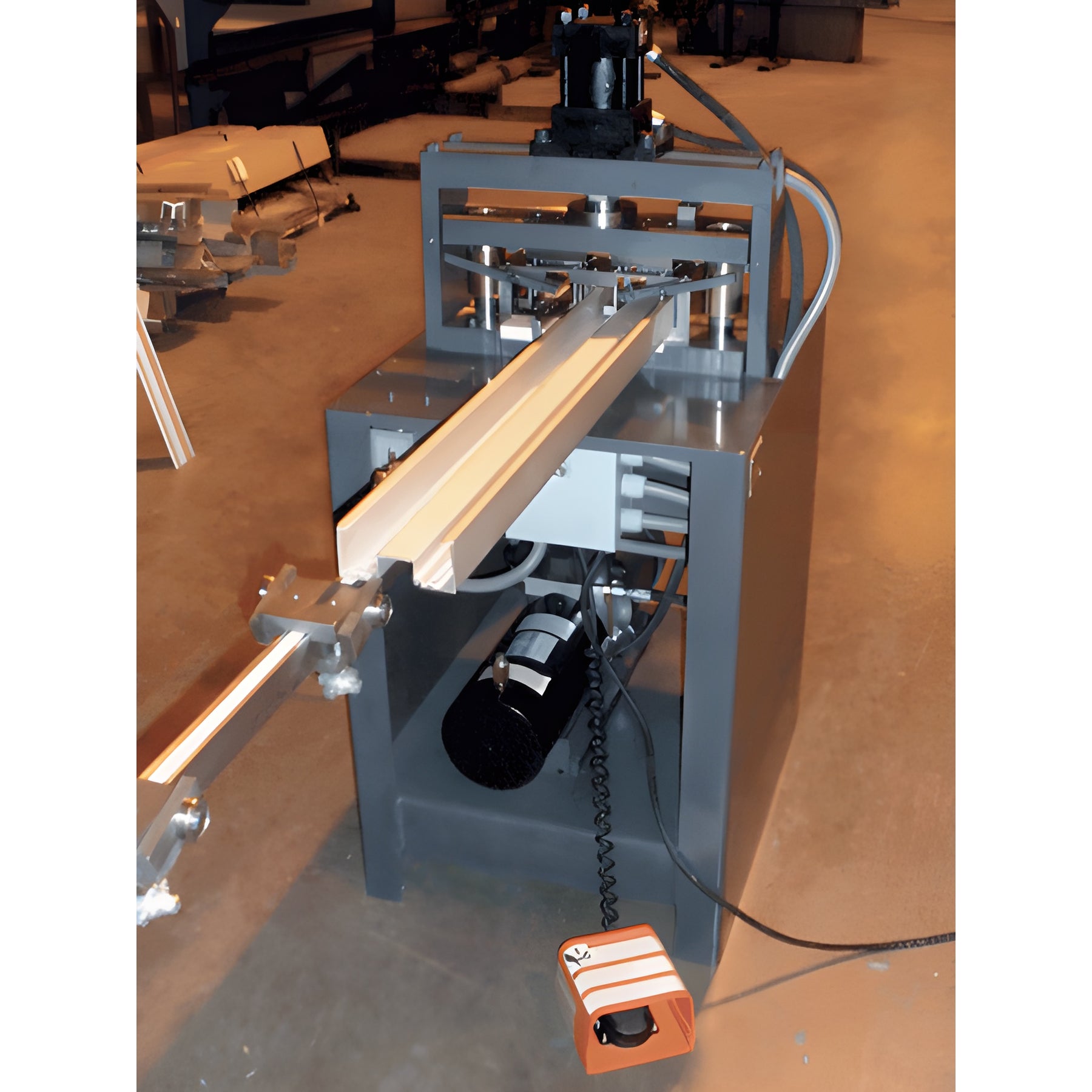

The CRL Hydrapunch™ Machine is a multi-head machine for quickly and accurately punching holes in the open back vertical mullion/filler of our popular center glazed systems - 1/4" (6 mm) and 1" (25 mm) infills. Simply insert the vertical mullion/filler into the die set, align against the pre-set flip stop, push the pedal and the Hydrapunch™ Machine punches four holes at one time. No need to measure and drill each hole in CRL-U.S. Aluminum framing systems. Get a perfect fit every time and eliminate the most common fabrication errors.
The Hydrapunch™ Machine uses die sets (sold separately) which works with punches the following U.S. Aluminum Center Glazed Storefront Systems:
Series 400 - 1/4" (6 mm) Glazing Series 450 - 1/4" (6 mm) Glazing Series 451 - 1" (25 mm) Glazing Series IT451 - 1" (25 mm) Glazing
Die sets must be specified at time of order, and are sold separately. Optional Die Sets for these popular U.S. Aluminum Systems are also available for purchase: Flush Front Systems Series 2200 Curtain Wall Series 3150 Curtain Wall Series 3250 Curtain Wall Series 4500 Curtain Wall For additional information contact our U.S. Aluminum Technical Sales Department.
Die Sets are sold separately. Please see the following catalog pages for available die sets: CRL73R - Page 467K, CRL93G - Page TE101, CRL93A - Page US131
