CRL-U.S. Series 250 Geared Hinge Pair, Narrow Stile, ADA Bottom Rail
CRL-U.S. Series 250 Geared Hinge Pair, Narrow Stile, ADA Bottom Rail
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE22822
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- Custom fabricated to accept optional hardware applications
- Includes active and inactive leaf with all standard hardware
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.

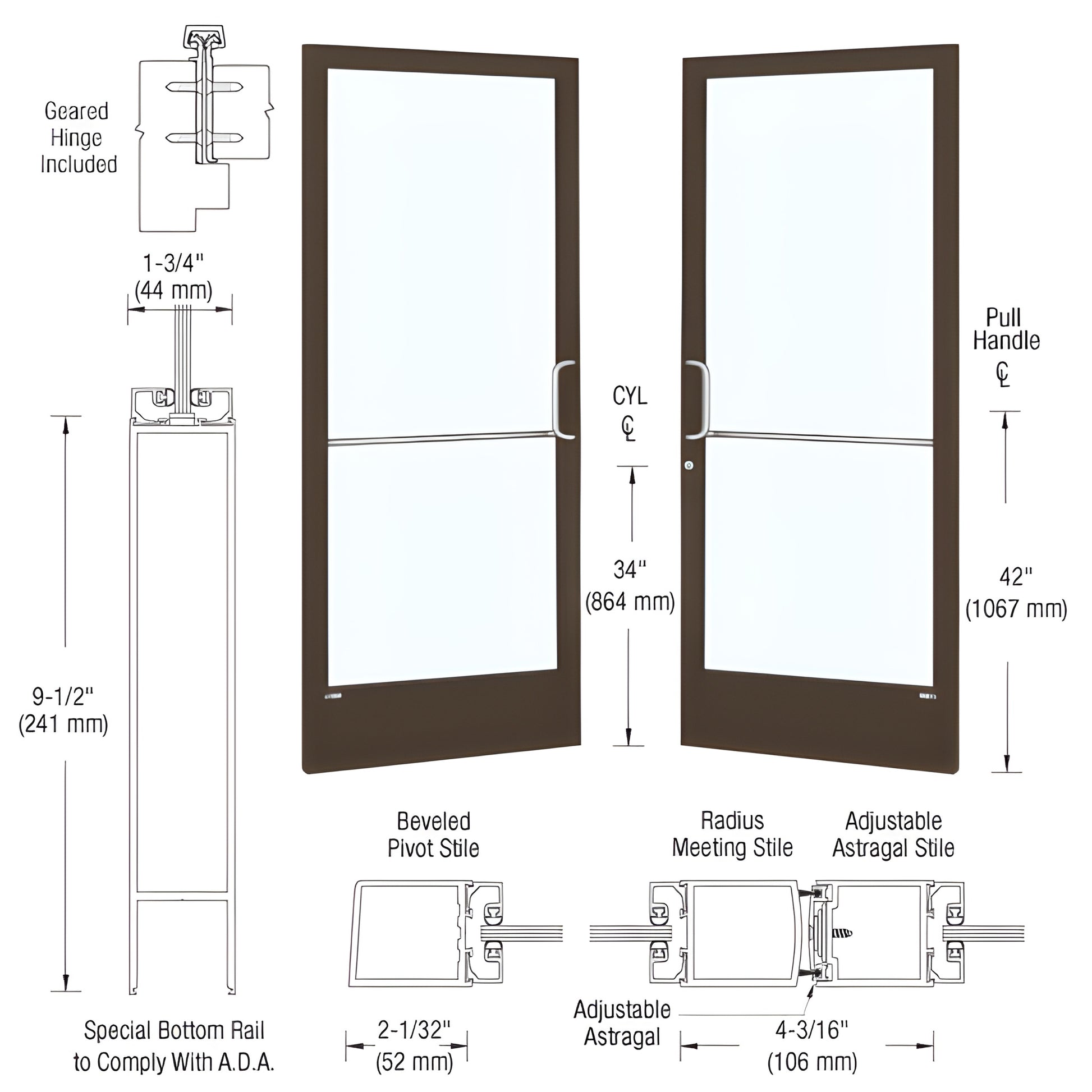

This Custom Narrow Stile Entrance Door (SKU: DE22822) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Designed for commercial storefronts and architectural entrances, it comes standard with stiles prepped for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass (by others). The door is custom-fabricated to accommodate a wide range of optional hardware applications, making it ideal for retrofit and new-construction projects.
Protruding hardware components (handles, pivots, etc.) are boxed separately to prevent transit damage and must be installed by the customer on arrival—this preserves finish quality during shipping and simplifies onsite installation.
Specifications
BIM Objects - rvt
