CRL White 3/4" x 1/4" Extruded Screen Frame
Item# A344W
Shipping Weight: 0.705
Shipping Limitations: No UPS - Common Carrier Only
Minimum Order Quantity: 1
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 0.705
Shipping Limitations: No UPS - Common Carrier Only
Minimum Order Quantity: 1
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
- Case Quantity100
- Finish/Color:White

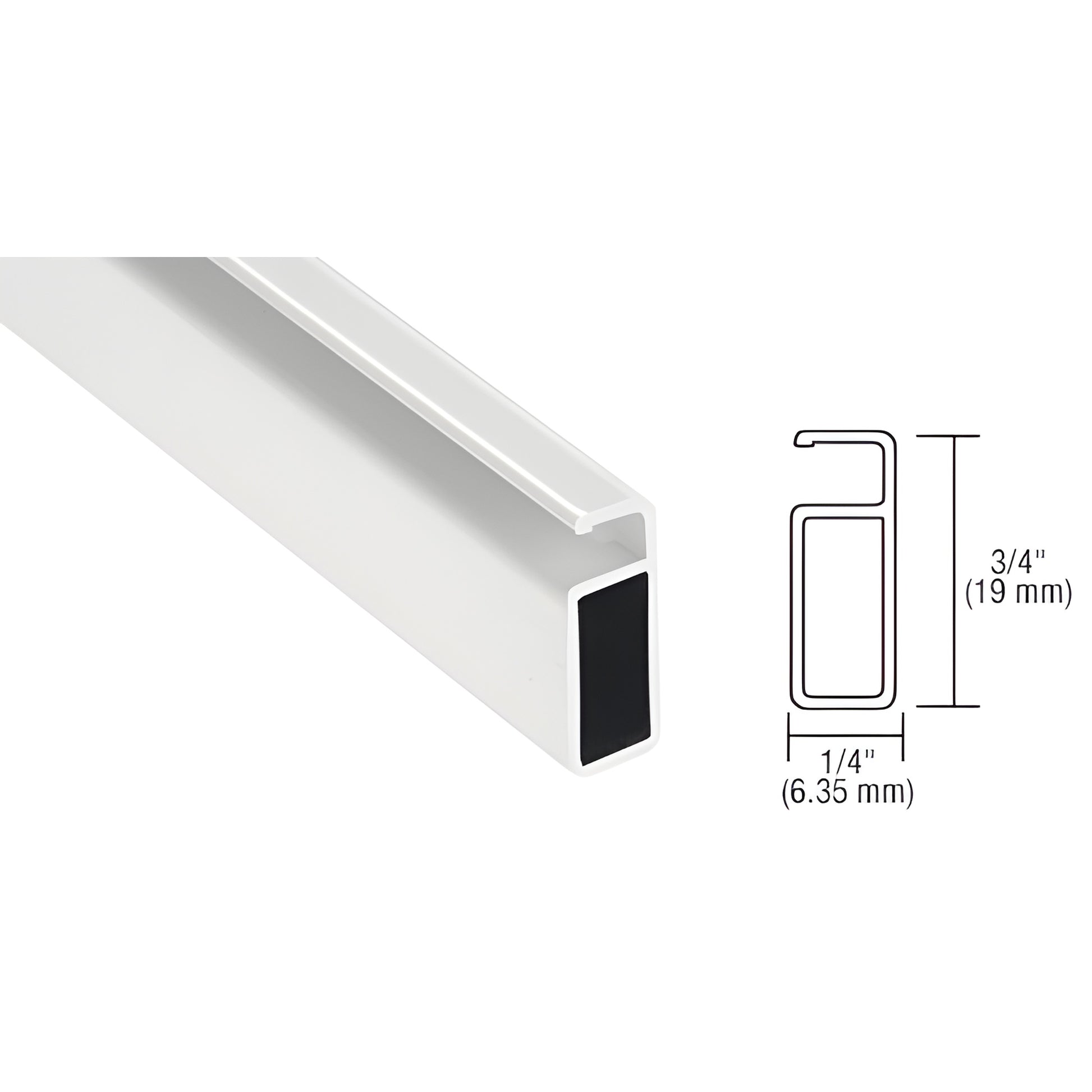

- Height3/4 in. (19 mm)
- Length12 ft. (3.66 m)
- Wall Thickness0.026 in. (.66 mm)
- Width1/4 in. (6 mm)
- Extruded with Built-In Camber for Even Screen Tension
- .026" (.66 mm) Wall Thickness
- Three Finishes to Choose From
- Individually Polywrapped Stock Lengths
Box-type extruded .026 mil (.66 mm) thickness Frame uses our WSC104 Mitered Corner or our SWSC14 Square Cut Corner, and our .150" size Spline. Lengths are extruded with built-in camber (slightly bowed) for even screen tension.
SPECIFICATIONS:
Material: Extruded Aluminum
Wall Thickness: .026" (.66 mm)
Uses Spline Size: .150" (3.8 mm)
Uses Corners: WSC104 for Mitered Corners; SWSC14 for Square Cut Corners
Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
