CRL Roll-Ezy 36" Zinc-Plated Double-Track Ball Bearing Door Track

• Zinc-plated steel assemblies for use with 3/16" (4 mm) or 1/4" (6 mm) glass
• Pre-cut kits to minimize waste
• All-steel construction for durability

CRL "Roll-Ezy" Ball Bearing Track Assembly (SKU: KV99236) is a low-friction, ball-bearing sliding door track ideal for bypass glass doors and other residential or commercial sliding glass door applications. Easy to install, the assembly delivers smooth, quiet operation and long service life. The kit is designed for use with 1/4" (6 mm) glass and is offered in four pre-cut sizes to reduce material waste.

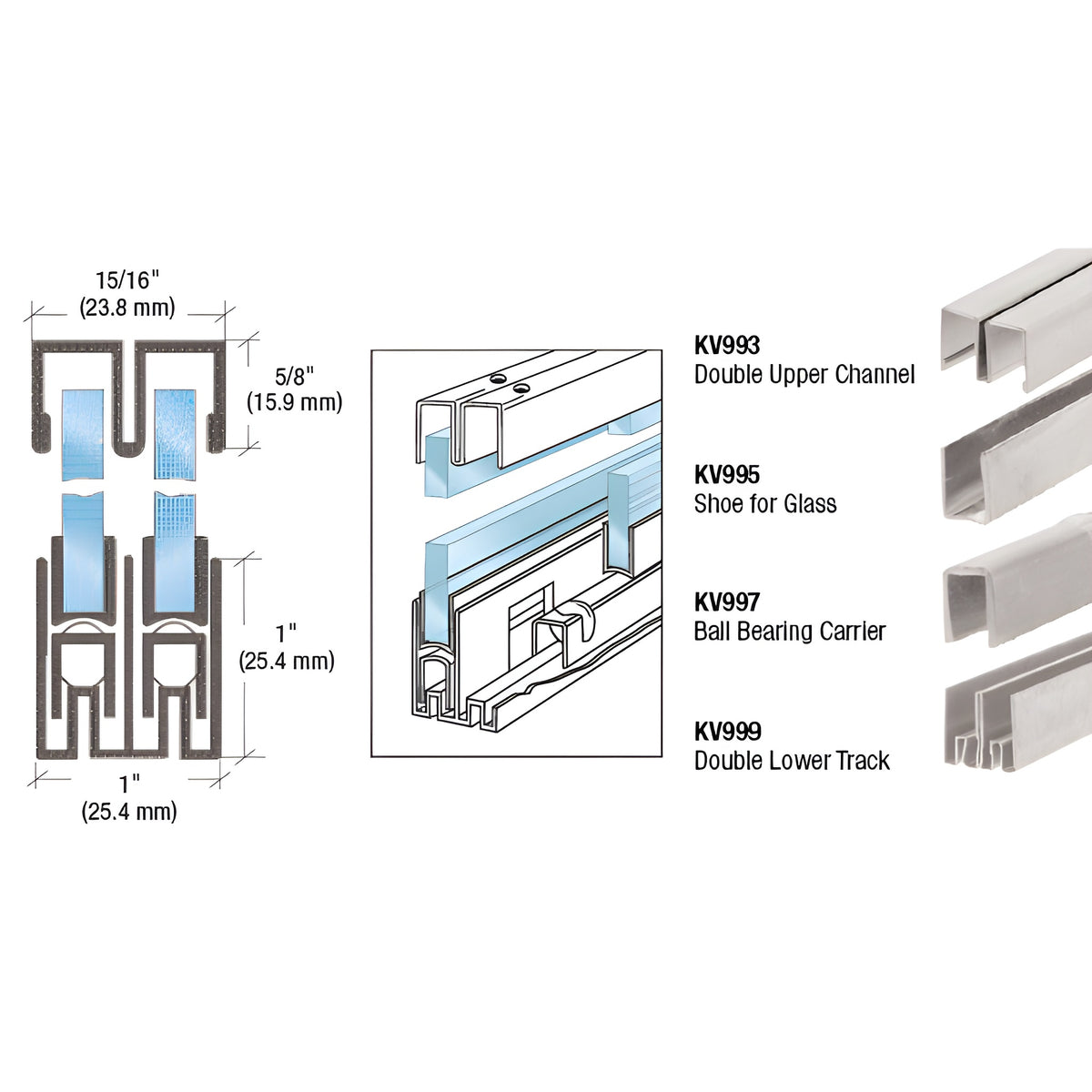

Pre-Cut Assemblies Include:

• 1 piece KV993 Upper Channel
• 2 pieces KV995 Shoe for Glass
• 2 pieces KV997 Ball Bearing Carrier
• 1 piece KV999 Lower Track

Load & sizing notes: Each sliding panel height should not exceed 2.5× the panel width. Maximum load: 50 pounds (22.7 kg) per linear foot. Short formula for ball bearing carrier length: (Opening ÷ 4) × 3 = carrier length. Cut glass 1-1/4" (32 mm) shorter than the opening height and allow 1" (25 mm) overlap for doors.
