DORMAKABA® Brushed Stainless Top Door Patch Fitting with Pivot Insert For 3/4" Glass
Item # PT2034BS
$273.44
CAD
Finish (3)
-
Brushed Stainless Steel -
Matte Black -
Polished Stainless Steel
Type (2)
- Bottom
- Top
Overview
| SKU | PT2034BS |
|---|---|
| Sold As | 1 Each |
| Finish/Color | Brushed Stainless Steel |
| Glazing Thickness | 3/4 in. (19 mm) |
| Insert Type | 1NT303 |
| Pivot Setback | 2-3/4 |
| Series | DORMAKABA® |
| Type | Top |
| With Insert | Yes |
Description

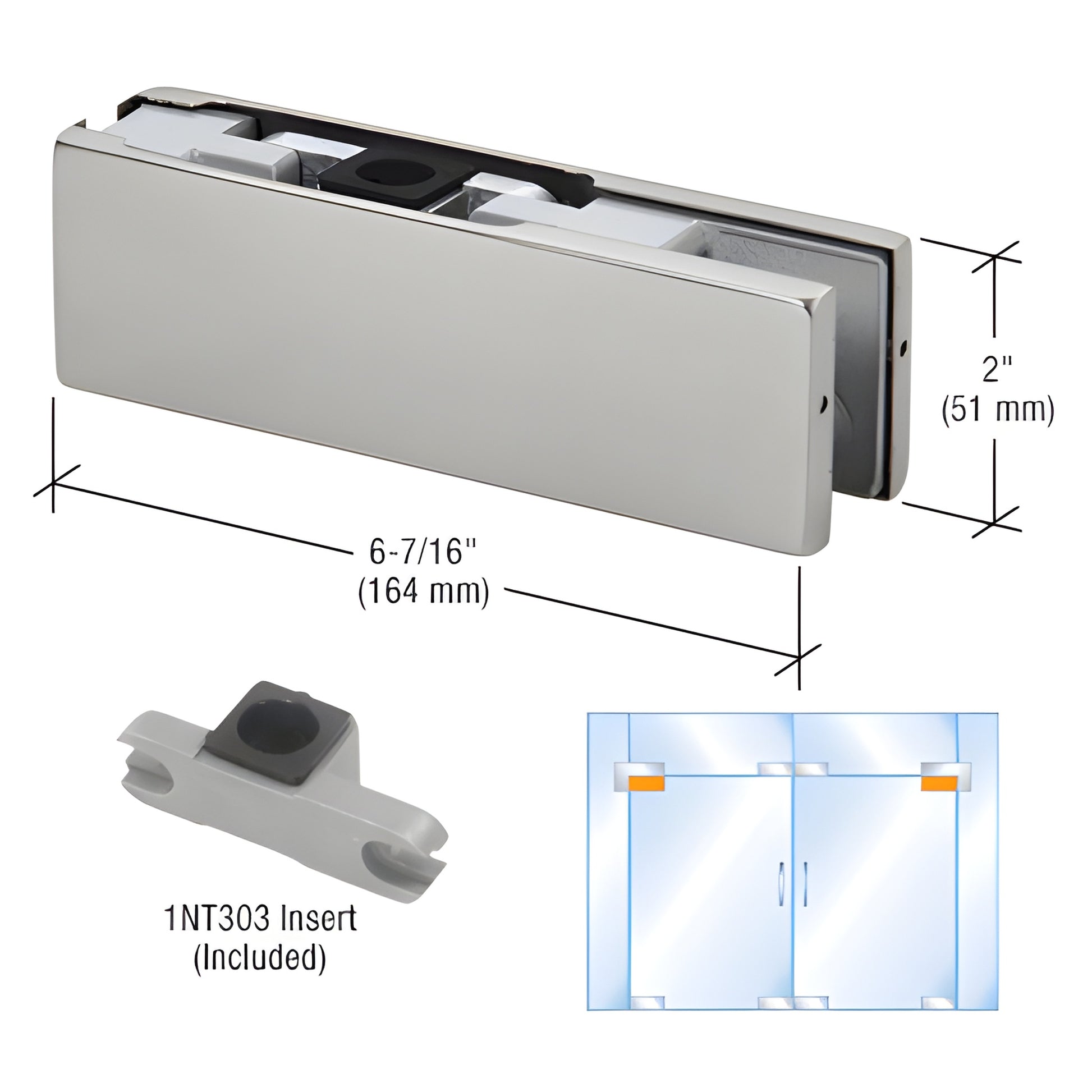

- For 3/4" (19 mm) Glass
- Use Monolithic Tempered Glass
- 304 Alloy Stainless Steel Covers
- 2-3/4" (70 mm) Pivot Setback
DORMAKABA® Top Patch Fittings are used with all three of our gate and door pivots. It fits in the upper corner of the glass panel, and requires a hole and cut-out in the glass. Available in brushed and polished stainless steel finishes.
The following guidelines are to be used when making a door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 lbs. (88 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch
COMES WITH:
Template and Instructions
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.Specifications
Templates
CAD Drawings - pdf
- PDFCommercial Patch Hardware European Series System CAD Drawings.pdf
- PDFCommercial Patch Hardware North American Series System CAD Drawings.pdf
- PDFCommercial Patch Hardware Wedge Lock 3-8 inch Glass to 1-2 inch Glass System CAD Drawings.pdf
- PDFCommercial Patch Hardware Wedge Lock 5-8 inch Glass to 3-4 inch Glass System CAD Drawings.pdf
CAD Drawings - dwg
- DocumentCommercial Patch Hardware European Series System CAD Drawings.dwg
- DocumentCommercial Patch Hardware North American Series System CAD Drawings.dwg
- DocumentCommercial Patch Hardware Wedge Lock 3-8 inch Glass to 1-2 inch Glass System CAD Drawings.dwg
- DocumentCommercial Patch Hardware Wedge Lock 5-8 inch Glass to 3-4 inch Glass System CAD Drawings.dwg
