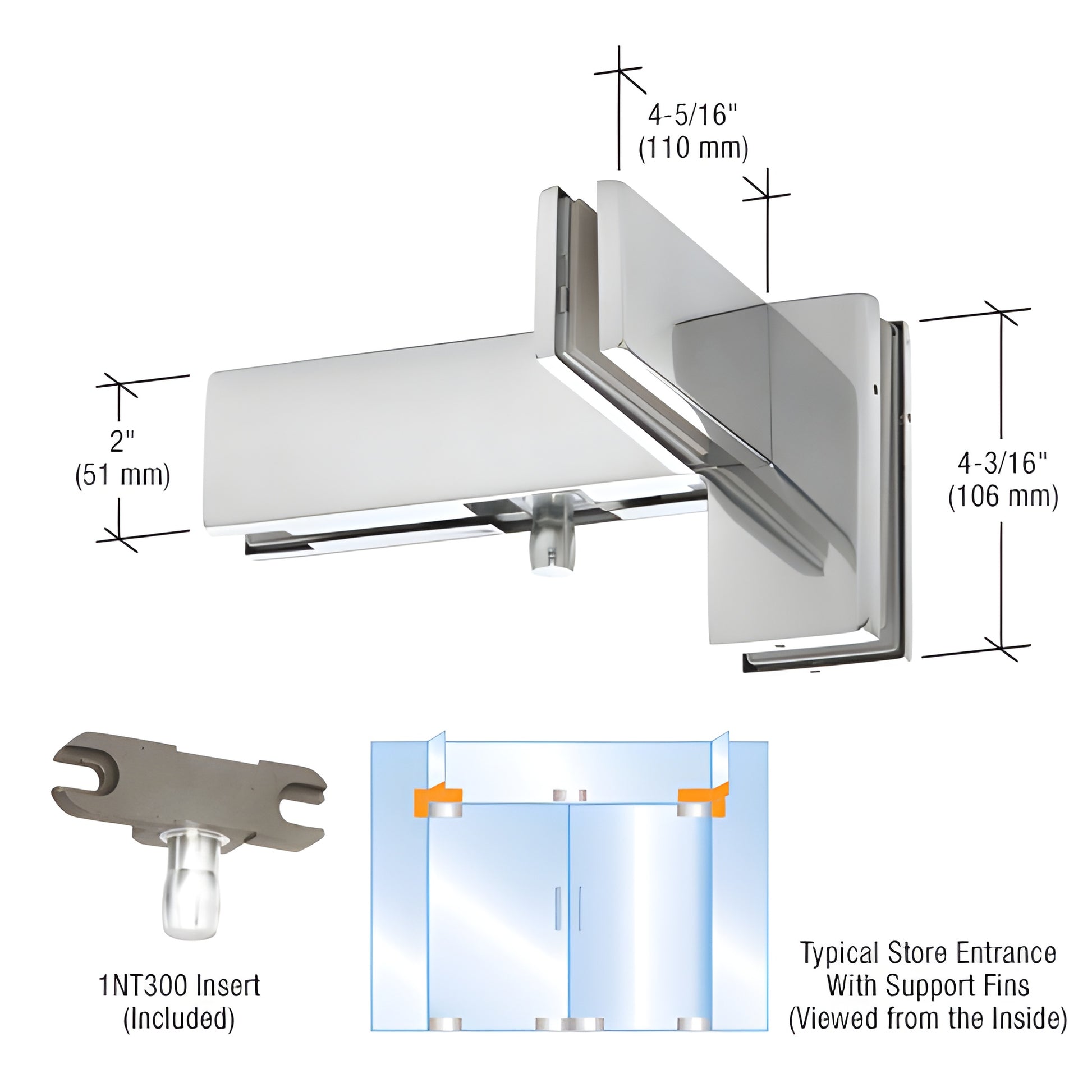

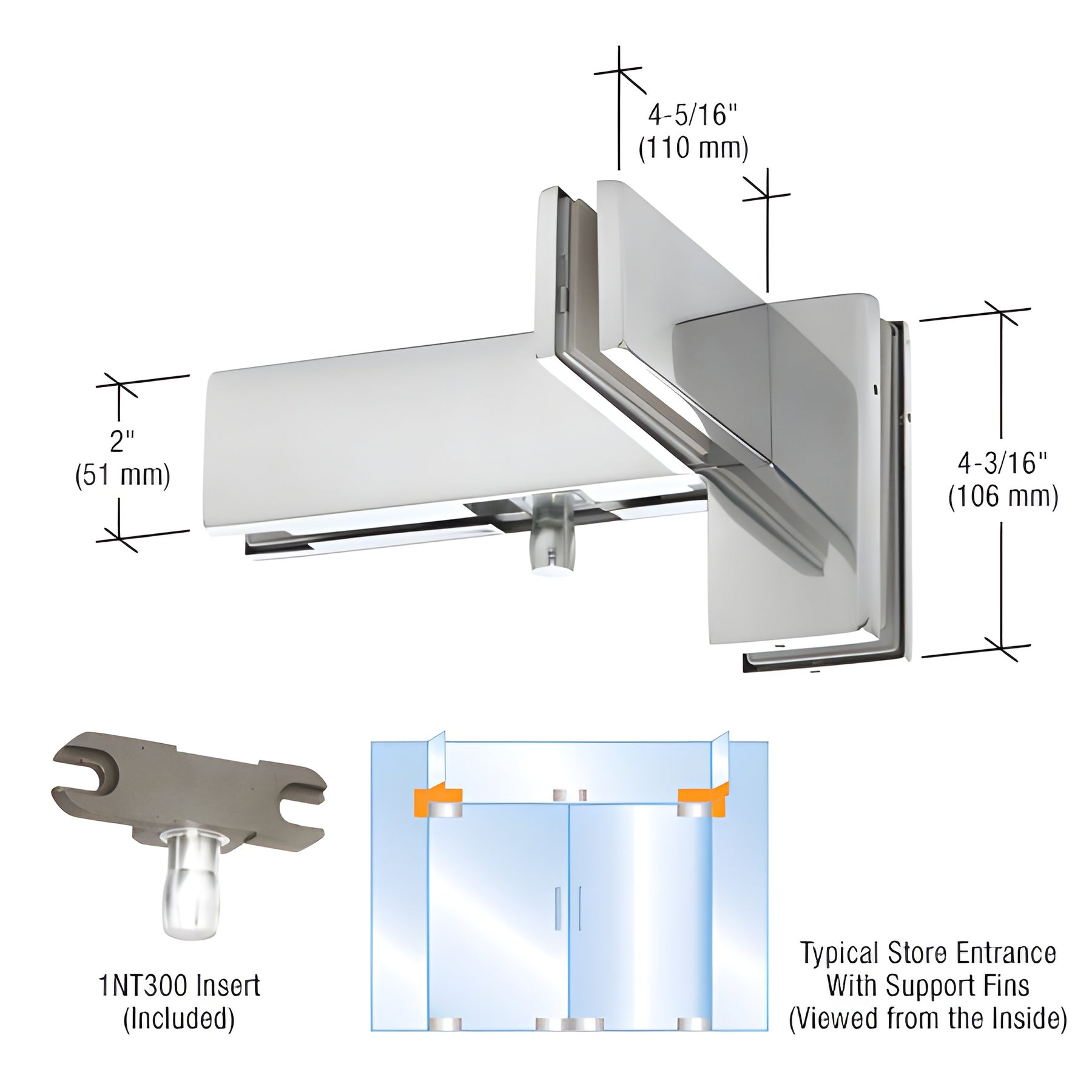

Dormakaba Stainless Steel Right-Hand Sidelite Transom Patch Fitting
Dormakaba Stainless Steel Right-Hand Sidelite Transom Patch Fitting
Regular price
$944.38 CAD
Regular price
Sale price
$944.38 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PT4134P1VLHPS
Shipping Weight: 2.4 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.4 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/4 in. (19 mm)
Handing
Left Hand
Insert Type
1NT300
Mounting Type
Sidelite
Series
DORMAKABA®
With Insert
Yes
Overview
- Fits 3/4" (19 mm) monolithic tempered glass
- Works with 2-3/4" (70 mm) pivot setback door patch fitting
- Available in left- and right-hand configurations
- Includes support fin bracket; template and installation instructions included
DORMAKABA® Left Hand Sidelite-Mounted Transom Patch Fitting with Support Fin Bracket (SKU: PT4134P1VLHPS) — engineered for sidelite-mounted transom applications and compatible with 2-3/4" (70 mm) pivot setback door patch fittings. Ideal for commercial glass door systems that require a compact, sidelite-mounted transom patch fitting for tempered glass doors.
Glass fabrication required: one 13/16" (20 mm) diameter hole and corner notch for installation.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for full guidance.
Need help specifying this sidelite-mounted transom patch fitting for your tempered glass door project? Contact CRL or add SKU PT4134P1VLHPS to your cart to order now.
