- For Use with All CRL Models, Jackson® 900, and Dormakaba® BT575 and BTS80 Series Floor Mounted Door Closers
- Three Available Door Clearance Heights 5/16", 1/2", and 3/4" (8, 12.7, and 19 mm)
- Handed, Flat Tapered Type
Dormakaba® 3º Offset Tapered Type Spindles
are available in various heights to accommodate different threshold and finished floor heights, and can be used with all CRL Models, Jackson® 900, and Dormakaba® BT575 and BTS80 Floor Mounted Door Closers. The Dormakaba® 3º Offset Flat Tapered Spindles are handed and provide a preload pressure to hold door in the closed position against the stop. They allow the use of all center-hung and offset bottom arms intended for use with this type of spindle, as well as CRL Patch Fitting Inserts.
Product Warning

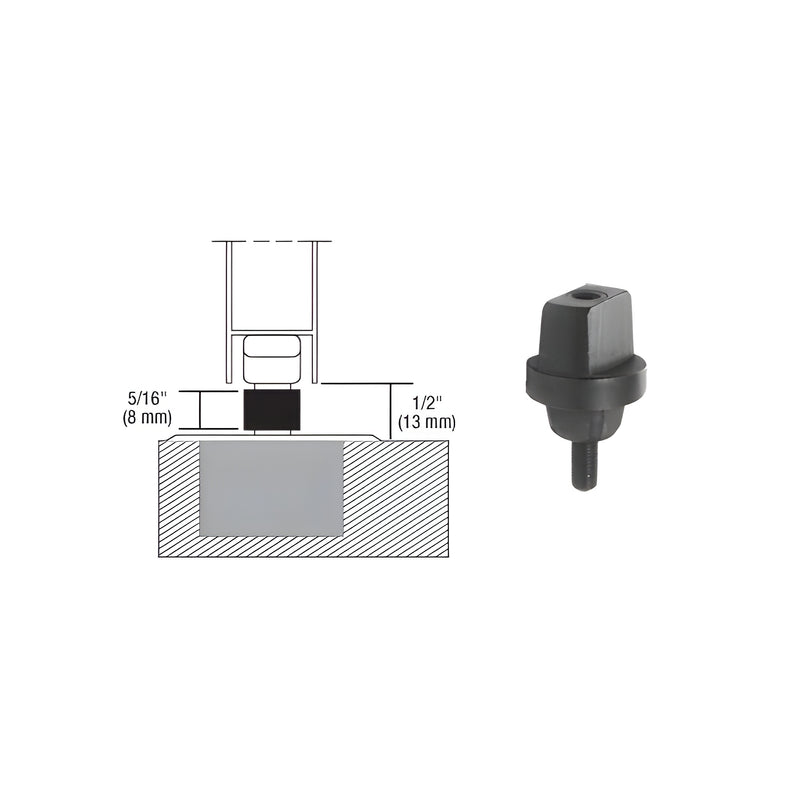

To determine the actual door clearance from finished floor, add 3/16" (5 mm) to the collar height. Example: 1/8" (3 mm) collar height + 3/16" (5 mm) = 5/16" (8 mm) door clearance from finished floor. The Spindle Is Marked With 'L' For Pull Side - Left Hinged Doors. The Handing Is "RH" Intended For Use With Right Swing Doors.
