Fallbrook Evo Right-Hand Door Hinge Kit Matte Black
Item# FHEKRMBL
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Finish/Color
Matte Black
Glazing Thickness
3/8 in. (10 mm) – 1/2 in. (12 mm)

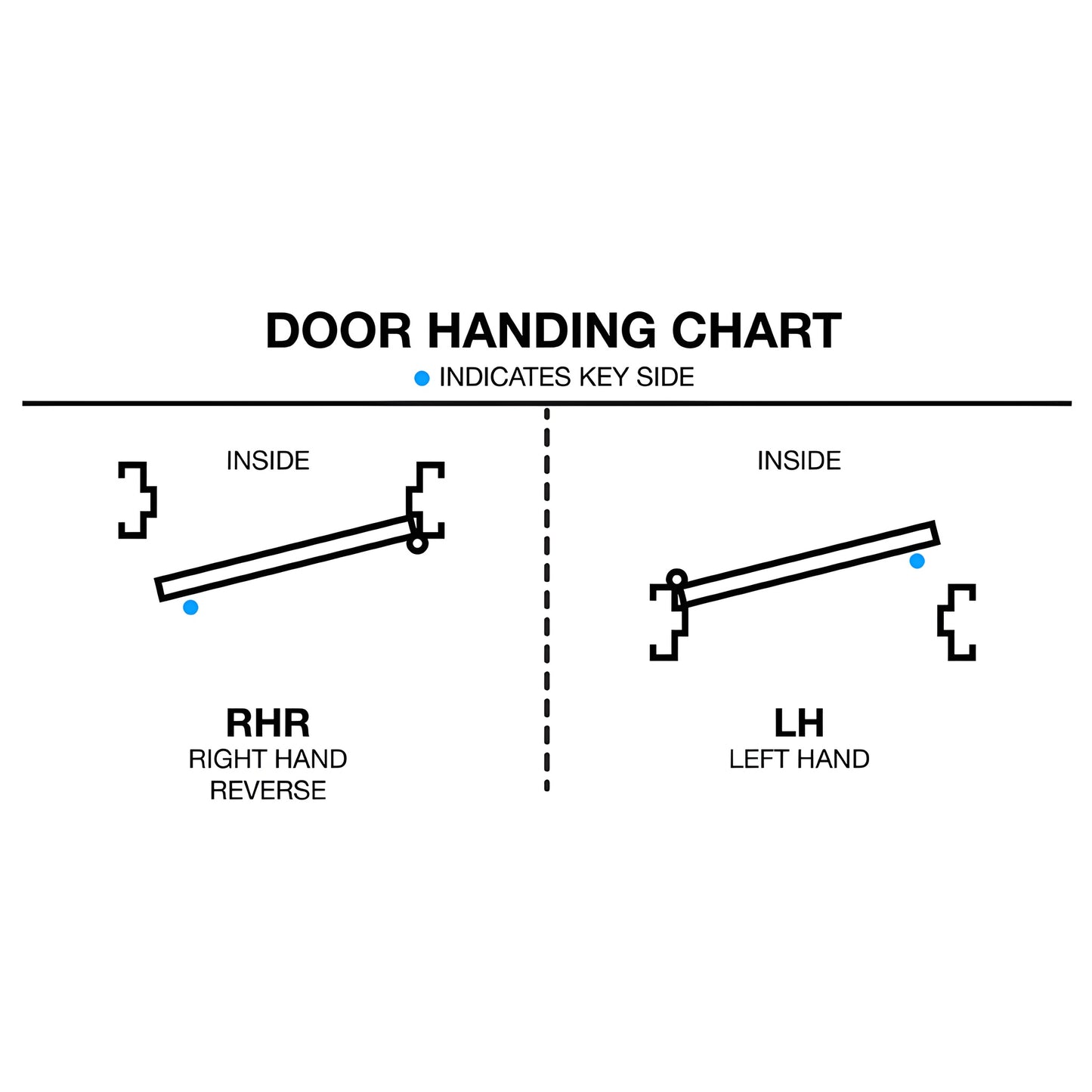

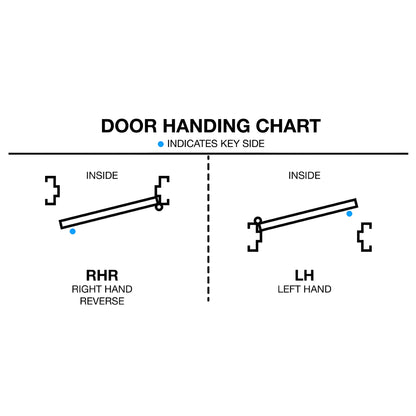

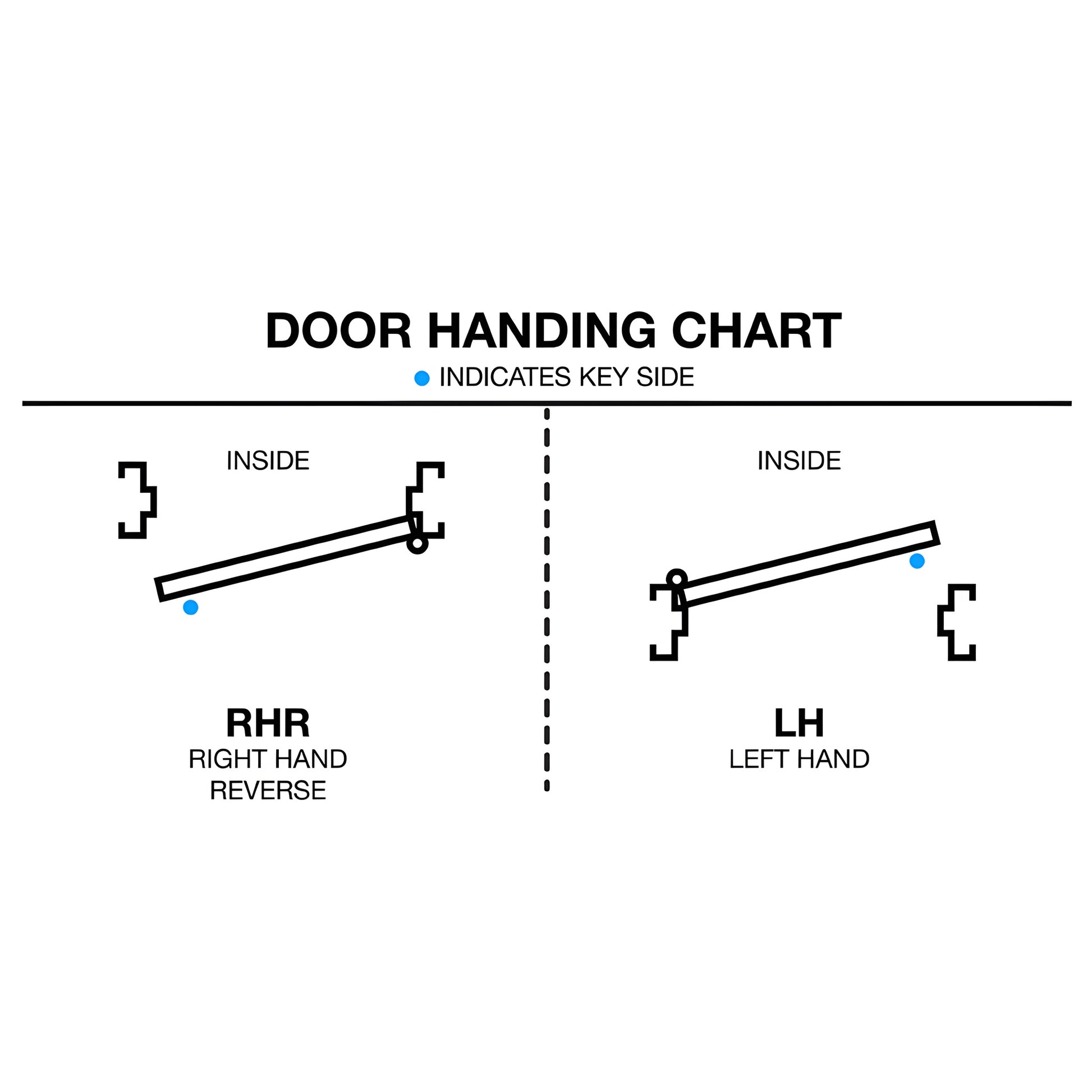

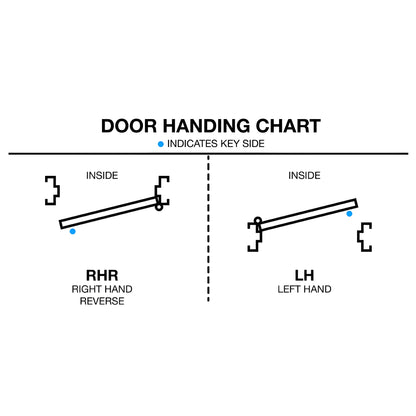

Handing
Right Handed
Maximum Panel Weight
250 lbs. (113 kg)
Profile
Square
- Glass thickness: 3/8 in. (10 mm)–1/2 in. (12 mm)
- Door weight capacity: up to 120 kg (265 lbs)
- Includes one hydraulic (hold-open) hinge and one mechanical free-swinging hinge
CRL Fallbrook Evo Hinges (SKU: FHEKRMBL) — premium hydraulic glass door hinges designed for frameless and framed glass doors. For 3/8” (10 mm) glass: one shim gasket required per assembly instructions. For 1/2” (12 mm) glass: no additional shim gasket required. FALLBROOK XL NY 12 mm (1/2”) requires two shim gaskets per assembly instructions.
Includes one hold-open hydraulic hinge with a frame pivot suitable for multiple frame types. Features adjustable closing speed, constant braking control and final latch adjustment for reliable performance at all opening angles up to 180°. Internal oil-dynamic system and mechanism protected by international patents provide smooth, maintenance-friendly operation ideal for heavy glass shower doors and commercial glass entrances.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor's settings.
