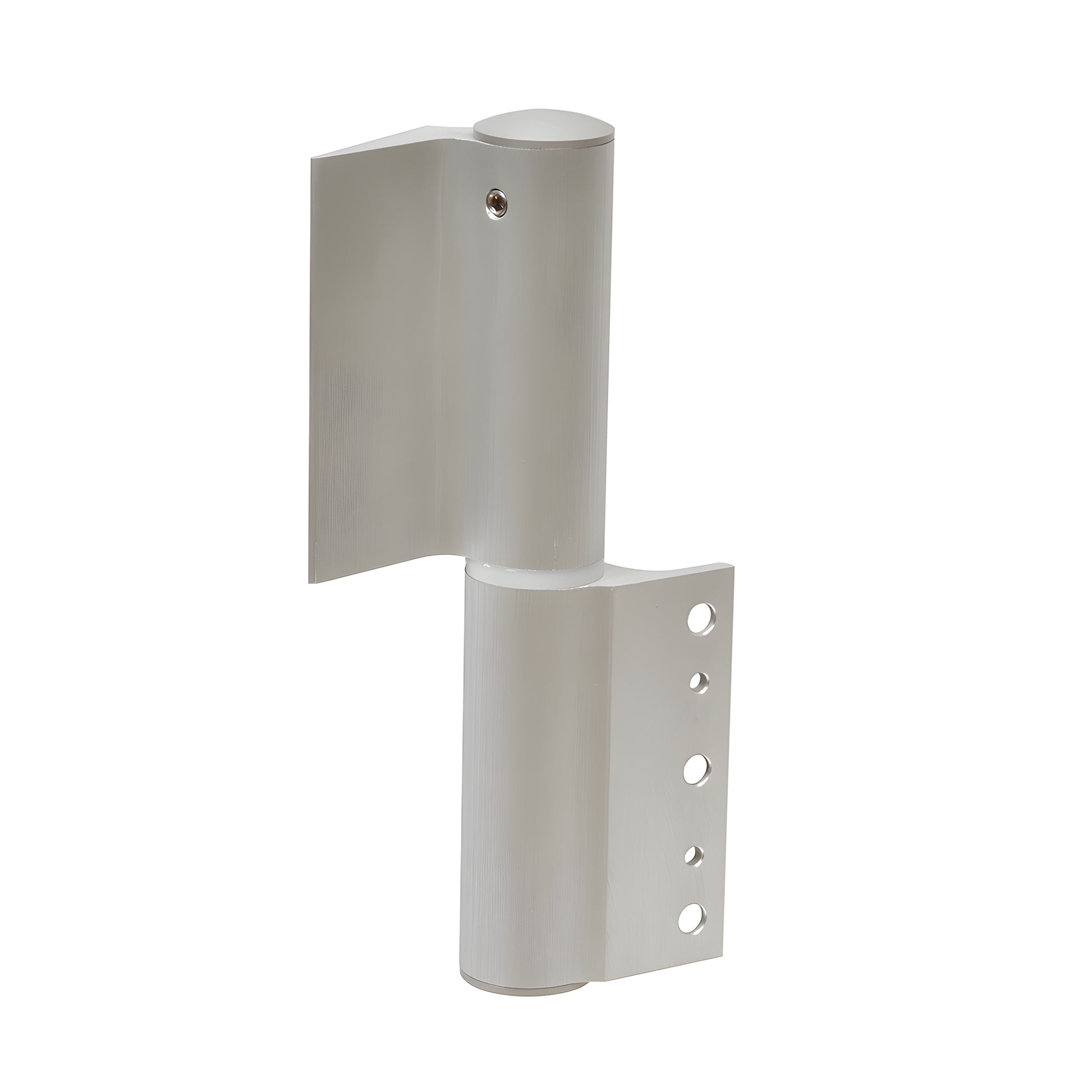

Fallbrook Right-Hand EVO Door Hinge Kit, Satin Anodized

• Glass thickness: 3/8 in. (10 mm) – 1/2 in. (12 mm)
• Supports door weight up to 120 kg (265 lbs)
• Includes one hold-open hydraulic hinge and one mechanical free-swinging hinge

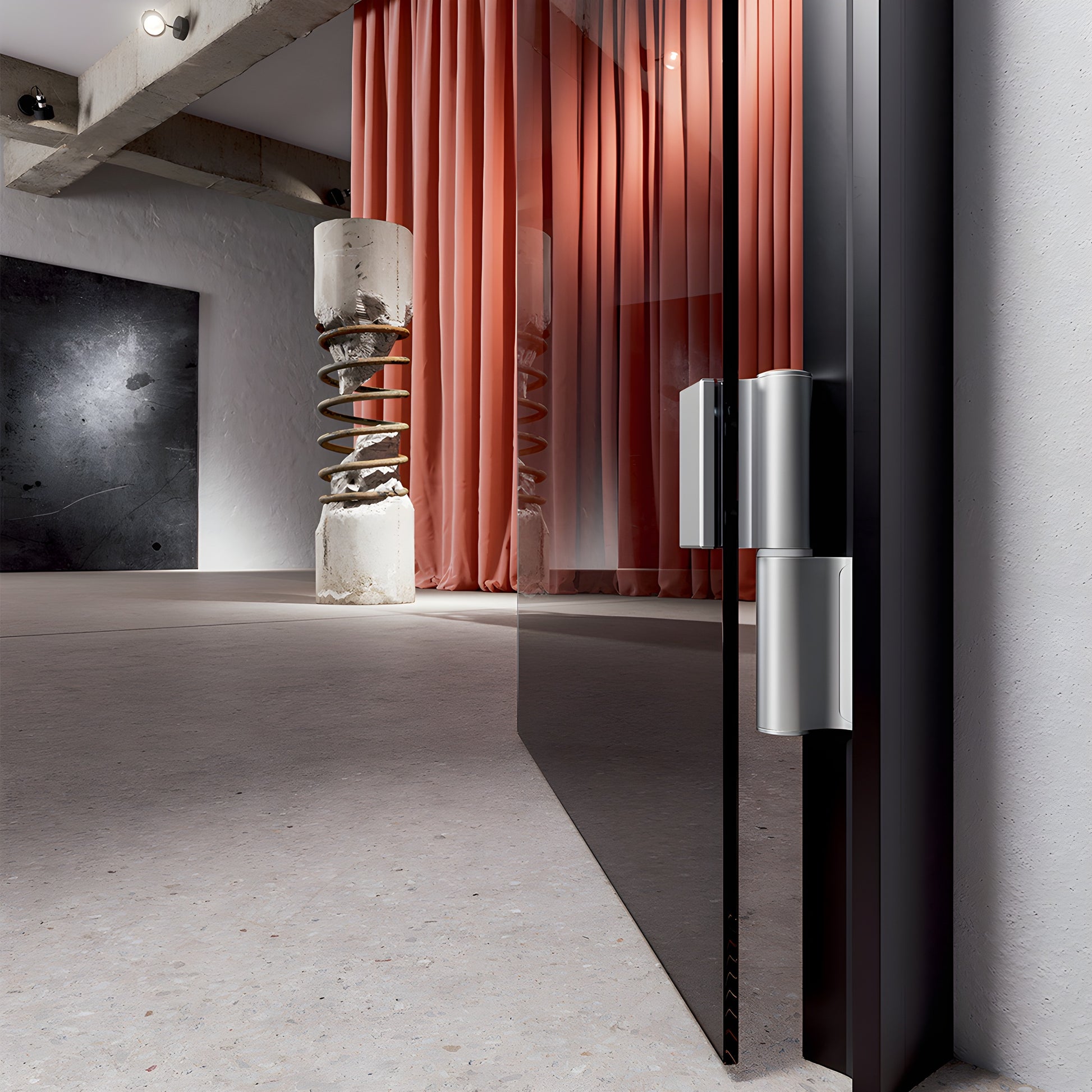

CRL Fallbrook Evo Hinges designed for frameless glass doors and glass-to-wall installations. SKU: FHEKRSA.

For 3/8” (10 mm) glass: one shim gasket required (see assembly instructions).

For 1/2” (12 mm) glass: no additional shim gasket required (see assembly instructions).

FALLBROOK XL for 12 mm (1/2”) glass: two shim gaskets required (see assembly instructions).

Includes one hold-open hydraulic hinge with frame pivot to fit different frame types. Features adjustable closing speed, final latch adjustment and constant braking control for all door opening angles up to 180°. The internal oil-dynamic mechanism is protected by international patents—ideal for commercial and residential glass door applications requiring reliable, smooth operation.

Order the Fallbrook Evo hydraulic hinge (SKU: FHEKRSA) for dependable, adjustable hydraulic performance on 10–12 mm glass doors—buy now or contact us for assistance.
