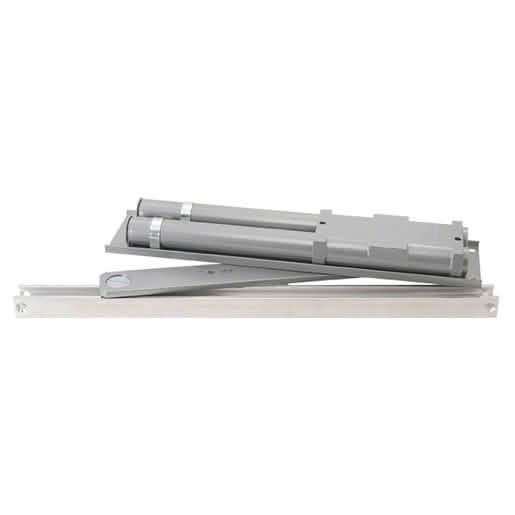

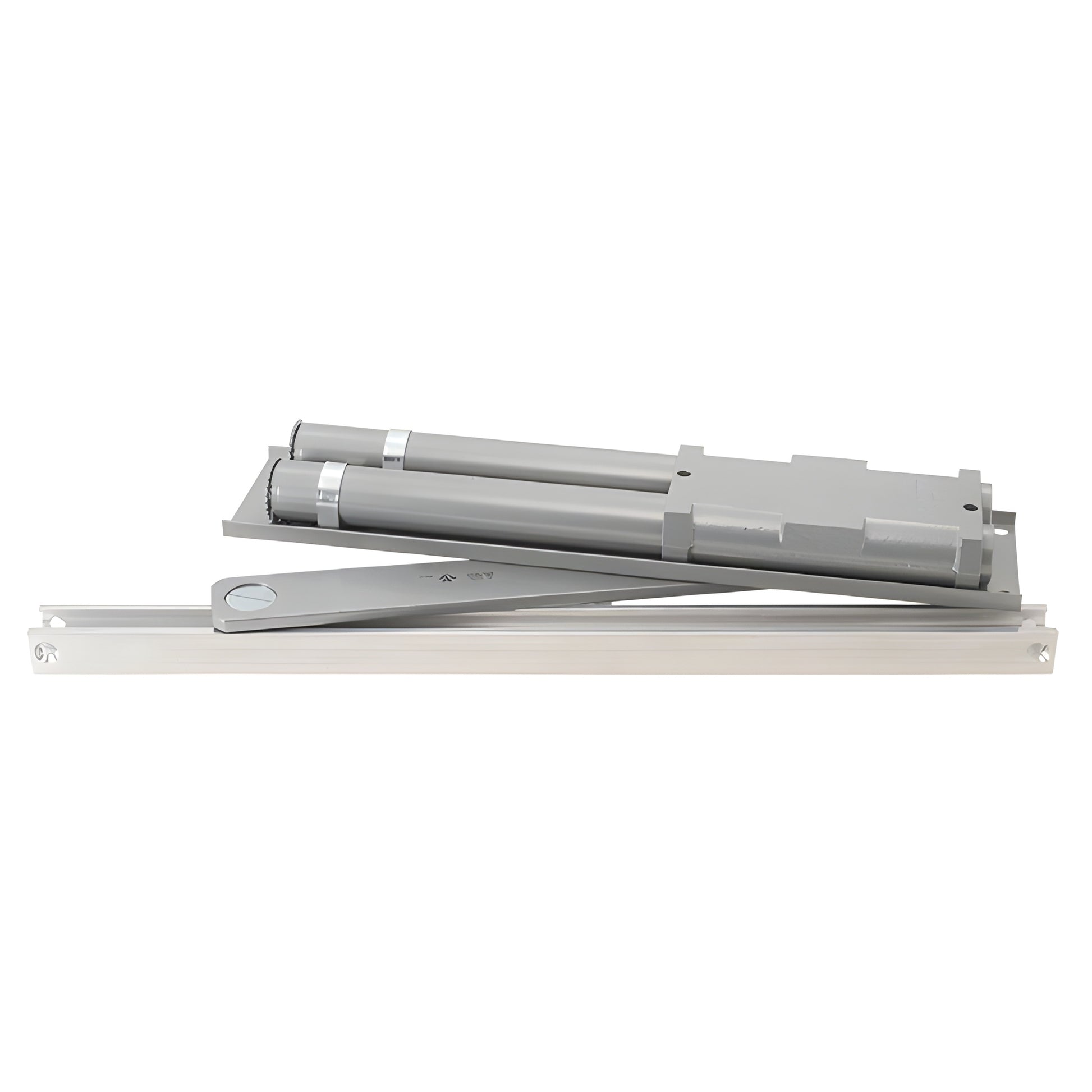

LCN Aluminum Finish Overhead Concealed Non Hold-Open Door Closer - ADA Spring Size 1
LCN Aluminum Finish Overhead Concealed Non Hold-Open Door Closer - ADA Spring Size 1
Regular price
$3,040.47 CAD
Regular price
Sale price
$3,040.47 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 6031AL
Shipping Weight: 18.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 18.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Americans with | Disabilities Act Yes |
| Body Height | 1-3/4 |
| Body Length | 16-7/8 |
| Body Width | 3-23/32 |
| Closer | Type Overhead Concealed |
| Cover Plate Length | 18-1/4 |
| Cover Plate Width | 4 |
| Door Height | 96 |
| Handing | Double Acting |
| Hold | Open Option Available Yes |
| Maximum Door Width - Exterior | 36 Inches |
| Maximum Door Width - Interior | 36 Inches |
| Recommended | Door Type Aluminum,Hollow Metal |
| Slide Track Depth | 1-7/16 |
| Slide Track Length | 22-1/2 |
| Spring Size | 5 |
| U | L Listed Yes |
Overview
The LCN 6030 Series Pacer® Overhead Concealed Door Closer is expertly crafted for durability and smooth operation, fitting a minimum 1-3/4" x 4" (45 x 102 mm) wide transom.
Certified to ANSI Standard A156.4, Grade 1, this heavy-duty door closer is UL and cUL listed, ensuring reliable performance for self-closing doors without hold-open.
Available in fixed spring sizes, it accommodates interior doors up to 54" (1.37 m) and exterior doors up to 42" (1.07 m), with backcheck and non-critical speed and latch adjustments enhancing functionality.
Please note, while ADA compliant, reduced force ADA closers may not always provide sufficient force to close and latch the door effectively.
For precise shipping costs, contact CRL Customer Service before placing your order.
Certified to ANSI Standard A156.4, Grade 1, this heavy-duty door closer is UL and cUL listed, ensuring reliable performance for self-closing doors without hold-open.
Available in fixed spring sizes, it accommodates interior doors up to 54" (1.37 m) and exterior doors up to 42" (1.07 m), with backcheck and non-critical speed and latch adjustments enhancing functionality.
Please note, while ADA compliant, reduced force ADA closers may not always provide sufficient force to close and latch the door effectively.
For precise shipping costs, contact CRL Customer Service before placing your order.
