LCN Concealed Overhead Door Closer, Dark Bronze, ADA 1 No Hold-Open

• Requires minimum 1-3/4" x 4" (45 x 102 mm) wide transom
• Certified to ANSI Standard A156.4, Grade 1
• UL and cUL listed for self-closing doors without hold-open
• Fixed spring sizes available: interior doors to 54" (1.37 m) and exterior doors to 42" (1.07 m)
• Backcheck plus non-critical speed and latch adjustments

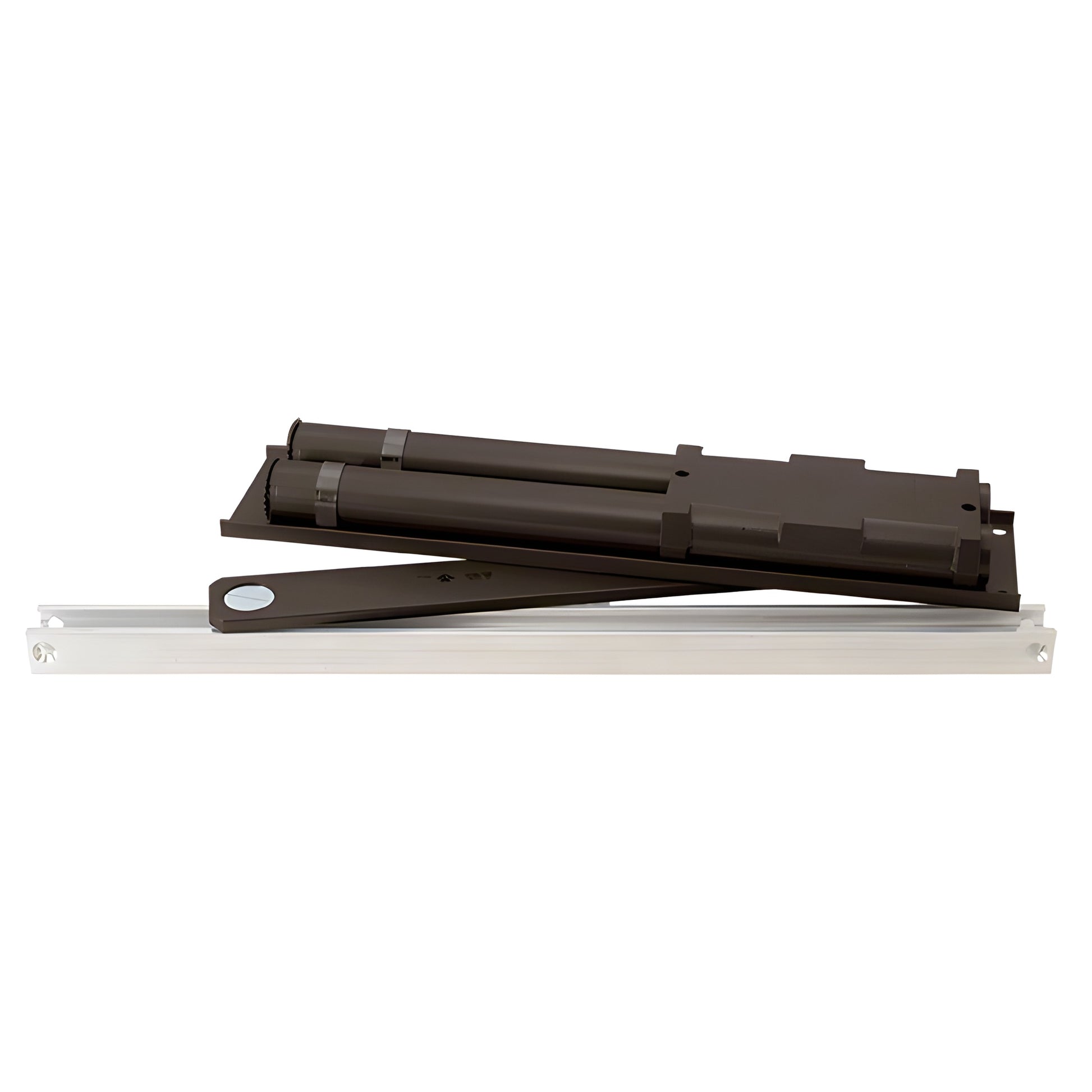

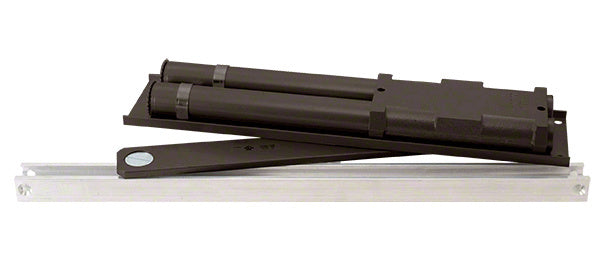

The LCN 6030 Series Pacer® Overhead Concealed Door Closer is a heavy-duty, shallow-transom closer that installs in a 1-3/4" (45 mm) x 4" (102 mm) transom for a nearly invisible finish. Designed for double-acting, center-hung applications, the single lever arm and roller assembly deliver smooth, quiet door control. Non-handed construction and multiple painted finishes support a wide range of architectural and commercial projects. Fixed spring size options meet ADA reduced-force guidelines and accommodate interior and exterior doors per listed sizes. UL and cUL listing covers self-closing configurations without hold-open. A center-hung top pivot is required for installation and must be ordered separately. SKU for reference: 6031DU.

Product Warning:

Reduced Force ADA closers installed and adjusted based on ADA or other reduced opening force requirements may not provide sufficient force to reliably close and latch the door.
