LCN Concealed Overhead Door Closer, Aluminum ADA Size 4, No Hold-Open
LCN Concealed Overhead Door Closer, Aluminum ADA Size 4, No Hold-Open
Regular price
$3,354.38 CAD
Regular price
Sale price
$3,354.38 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 6034AL
Shipping Weight: 14.29 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 14.29 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Height
1-3/4
Body Length
16-7/8
Body Width
3-23/32
Closer Type
Overhead Concealed
Cover Plate Length
18-1/4
Cover Plate Width
4
Door Height
96
Finish/Color
Aluminum
Handing
Double Acting
Hold Open Option Available
Yes
Recommended Door Type
Aluminum,Hollow Metal
Slide Track Depth
1-7/16
Slide Track Length
22-1/2
UL Listed
Yes
Overview
- Requires minimum 1-3/4" x 4" (45 x 102 mm) wide transom
- Certified to ANSI Standard A156.4, Grade 1
- UL and cUL listed for self-closing doors without hold-open
- Fixed spring sizes available for interior doors to 54" (1.37 m) and exterior doors to 42" (1.07 m)
- Backcheck plus non-critical speed and latch adjustments for smooth, controlled closing

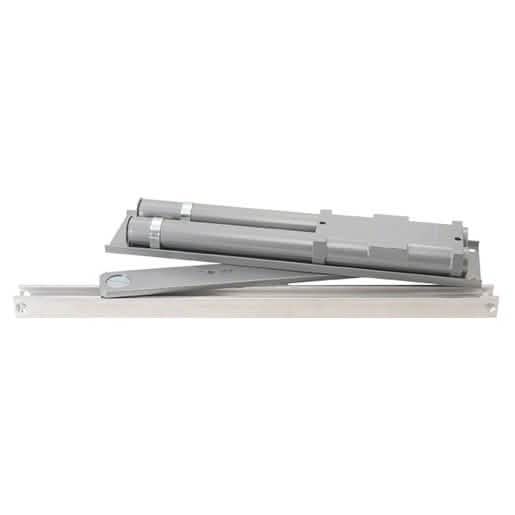

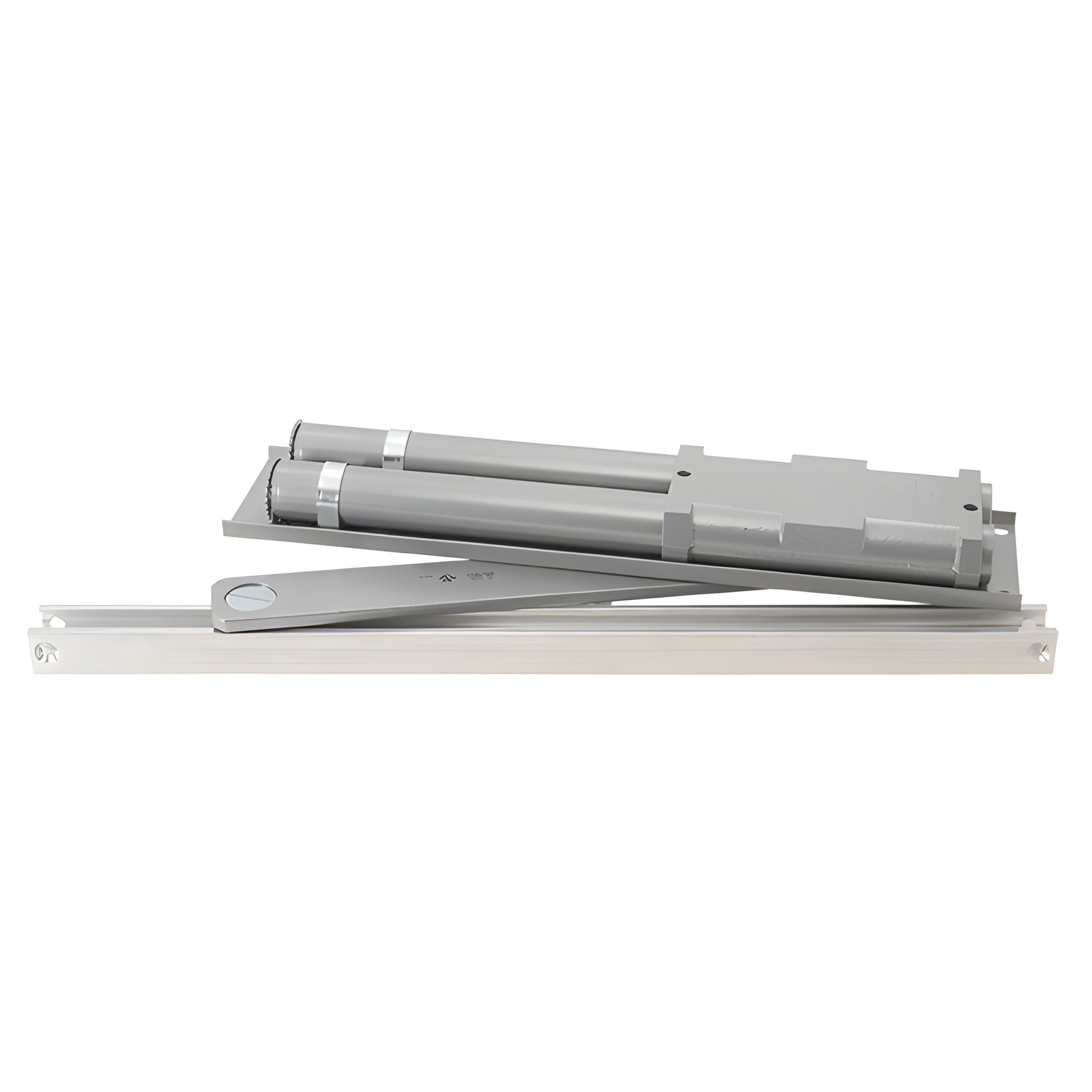

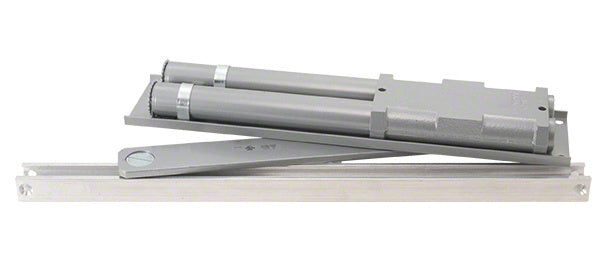

The LCN 6030 Series Pacer® Overhead Concealed Door Closer (SKU: 6034AL) is a heavy-duty, overhead concealed door closer engineered for shallow transoms measuring 1-3/4" (45 mm) x 4" (102 mm). Designed for double-acting, center-hung applications, its single lever arm and roller assembly deliver smooth, quiet door control. Non-handed design and multiple painted finishes with selectable track functions meet a wide range of architectural and commercial requirements. Fixed spring size options accommodate ADA-compliant operation—interior doors up to 54" (1.37 m) and exterior doors up to 42" (1.07 m). A center-hung top pivot is required and must be ordered separately. UL/cUL listings and ANSI A156.4 Grade 1 certification ensure reliable performance for high-traffic openings.
Buy the LCN 6030 Series Pacer® overhead concealed door closer (SKU: 6034AL) or contact us for specifications and ordering assistance.
