LCN Dark Bronze Concealed Overhead Door Closer - No Hold Open, ADA 4
LCN Dark Bronze Concealed Overhead Door Closer - No Hold Open, ADA 4
Regular price
$2,273.64 CAD
Regular price
Sale price
$2,273.64 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 6034DU
Shipping Weight: 14.3 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 14.3 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Height
1-3/4
Body Length
16-7/8
Body Width
3-23/32
Closer Type
Overhead Concealed
Cover Plate Length
18-1/4
Cover Plate Width
4
Door Height
96
Finish/Color
Dark Bronze
Handing
Double Acting
Hold Open Option Available
Yes
Recommended Door Type
Aluminum,Hollow Metal
Slide Track Depth
1-7/16
Slide Track Length
22-1/2
UL Listed
Yes
Overview
- Requires minimum 1-3/4" x 4" (45 x 102 mm) wide transom
- Certified to ANSI A156.4, Grade 1 heavy-duty performance
- UL and cUL listed for self-closing doors without hold-open
- Fixed spring sizes available: interior doors to 54" (1.37 m) and exterior doors to 42" (1.07 m)
- Backcheck plus non-critical speed and latch adjustments for precise door control

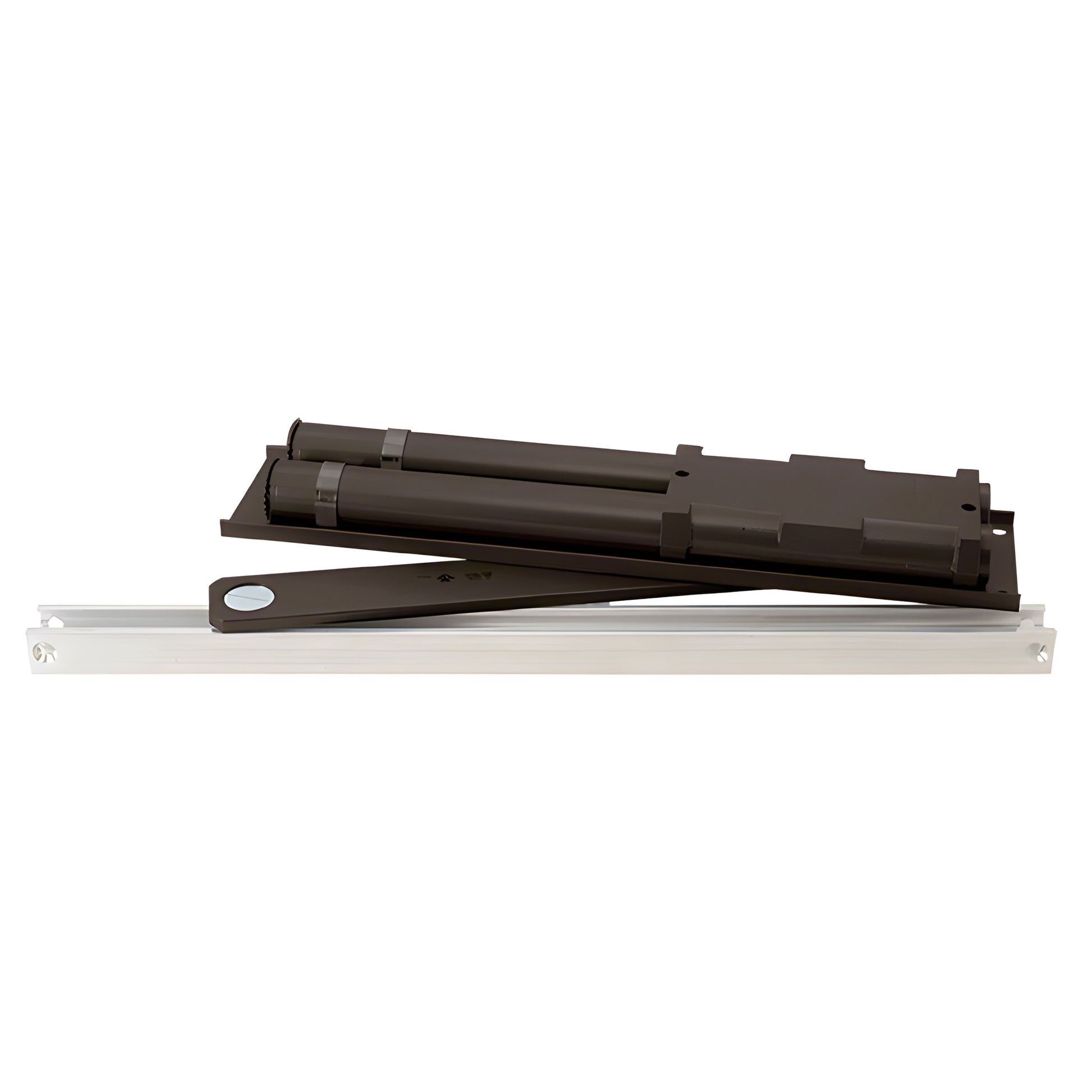

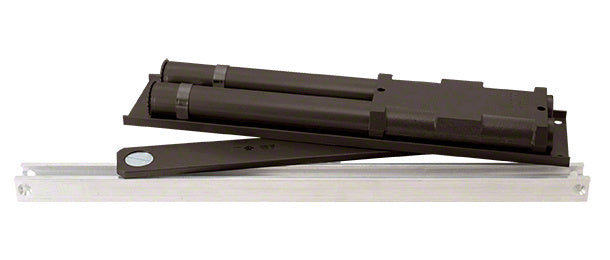

LCN 6030 Series Pacer® Overhead Concealed Door Closer — SKU: 6034DU
This overhead concealed door closer is engineered for shallow transoms (1-3/4" x 4") and provides smooth, quiet operation with a single lever arm and roller assembly. Non-handed and center-hung for double-acting doors, it meets ADA-compatible fixed spring sizes and is available in multiple painted finishes and track functions to match architectural requirements. A separate Center-Hung Top Pivot is required for installation. Ideal for commercial and institutional openings where a concealed, Grade 1 overhead closer is specified.
Key differentiators: Grade 1 ANSI certification, UL/cUL listing, shallow-transom compatibility, fixed spring sizes to meet ADA requirements, and adjustable backcheck and latch/speed controls.
Need help specifying the LCN 6034DU overhead concealed door closer? Contact us to order or get technical assistance.
