LCN Concealed Closer Size 1 Left Hand ADA No Hold Open Bronze
LCN Concealed Closer Size 1 Left Hand ADA No Hold Open Bronze
Regular price
$2,790.57 CAD
Regular price
Sale price
$2,790.57 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 2031LDU
Shipping Weight: 15.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 15.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-5/8 in. (41.3 mm)
Body Length
20-5/8 in. (523.9 mm)
Body Width
3-23/32 in. (94.5 mm)
Case Quantity
2
Closer Type
Overhead Concealed
Cover Plate Length
21-7/8 in. (555.6 mm)
Cover Plate Width
4 in. (101.6 mm)
Door Height
96 in. (2438.4 mm)
Handing
Left Hand
Hold Open Option Available
Yes
Maximum Door Width - Exterior
36 in. (914.4 mm)
Maximum Door Width - Interior
36 in. (914.4 mm)
Recommended Door Type
Aluminum,Hollow Metal
Slide Track Depth
1-3/8 in. (34.9 mm)
Slide Track Length
22-1/2 in. (571.5 mm)
Spring Size
5
UL Listed
Yes
Overview
- Requires minimum 1-3/4" x 4" (44.5 x 102 mm) wide transom
- Certified to ANSI Standard A156.4, Grade 1
- UL and cUL listed for self-closing doors without hold-open
- Fixed spring sizes available for interior doors to 54" (1.37 m) and exterior doors to 42" (1.07 m)

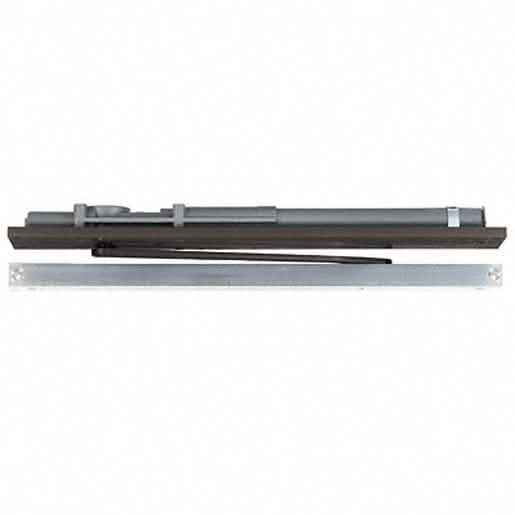

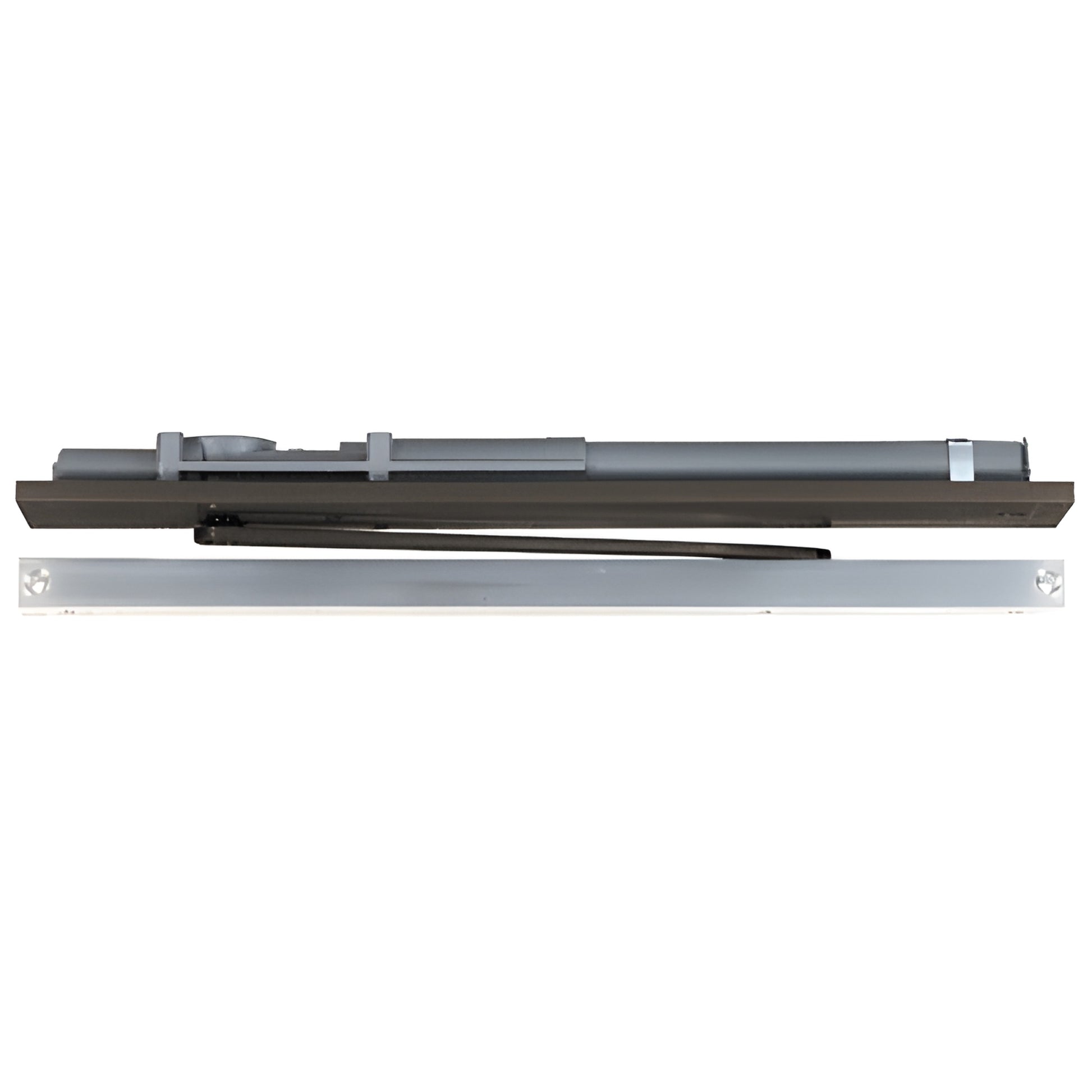

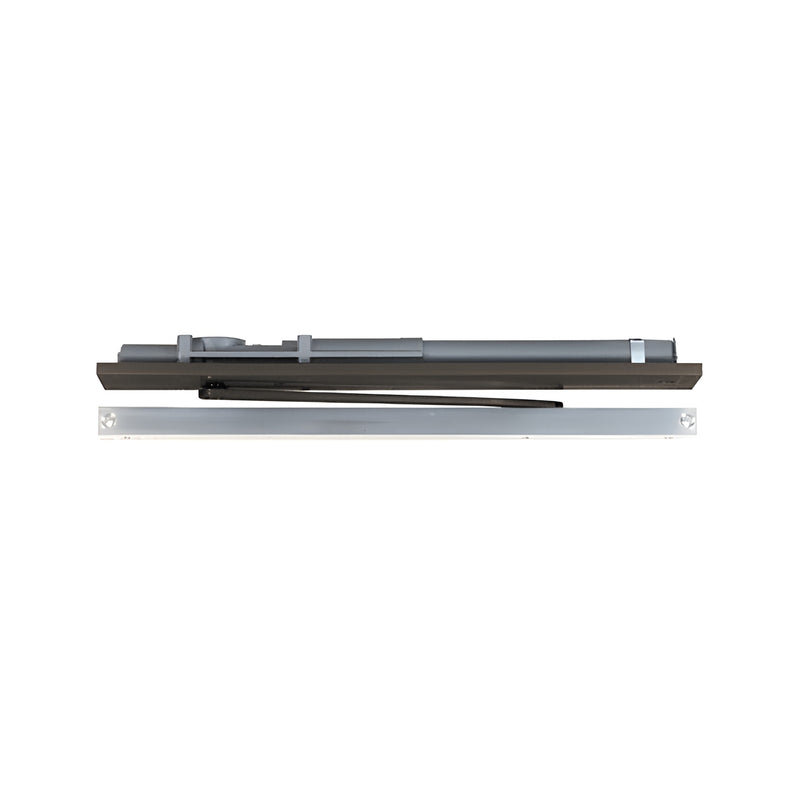

LCN 2030 Series Pacer® Overhead Concealed Closer — SKU: 2031LDU — heavy-duty concealed closer engineered to fit a shallow 1-3/4" (44.5 mm) x 4" (102 mm) transom. The single lever arm and roller assembly deliver smooth, quiet door control. Available in multiple track functions and finishes to meet architectural requirements. Handed for right or left swing doors. Fixed spring sizes meet ADA reduced-force considerations for interior doors up to 54" (1.37 m) and exterior doors up to 42" (1.07 m).
Key differentiators:
- Concealed overhead design for clean aesthetics and secure installation
- Shallow-transom fit for retrofit and narrow-frame applications
- ANSI A156.4 Grade 1 performance for commercial heavy-duty use
- UL/cUL listing for self-closing doors (no hold-open)
Product Warning:
Reduced-force ADA closers installed and adjusted based on ADA or other reduced opening force requirements may not provide sufficient force to reliably close and latch the door.
Order the LCN 2030 Series Pacer® concealed closer (SKU 2031LDU) today for a low-profile, Grade 1 overhead closer solution.
