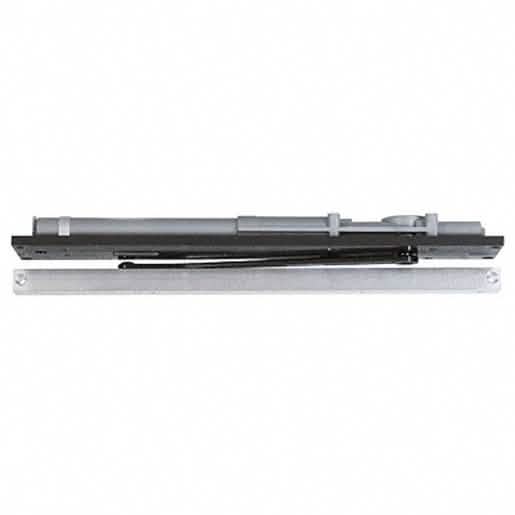

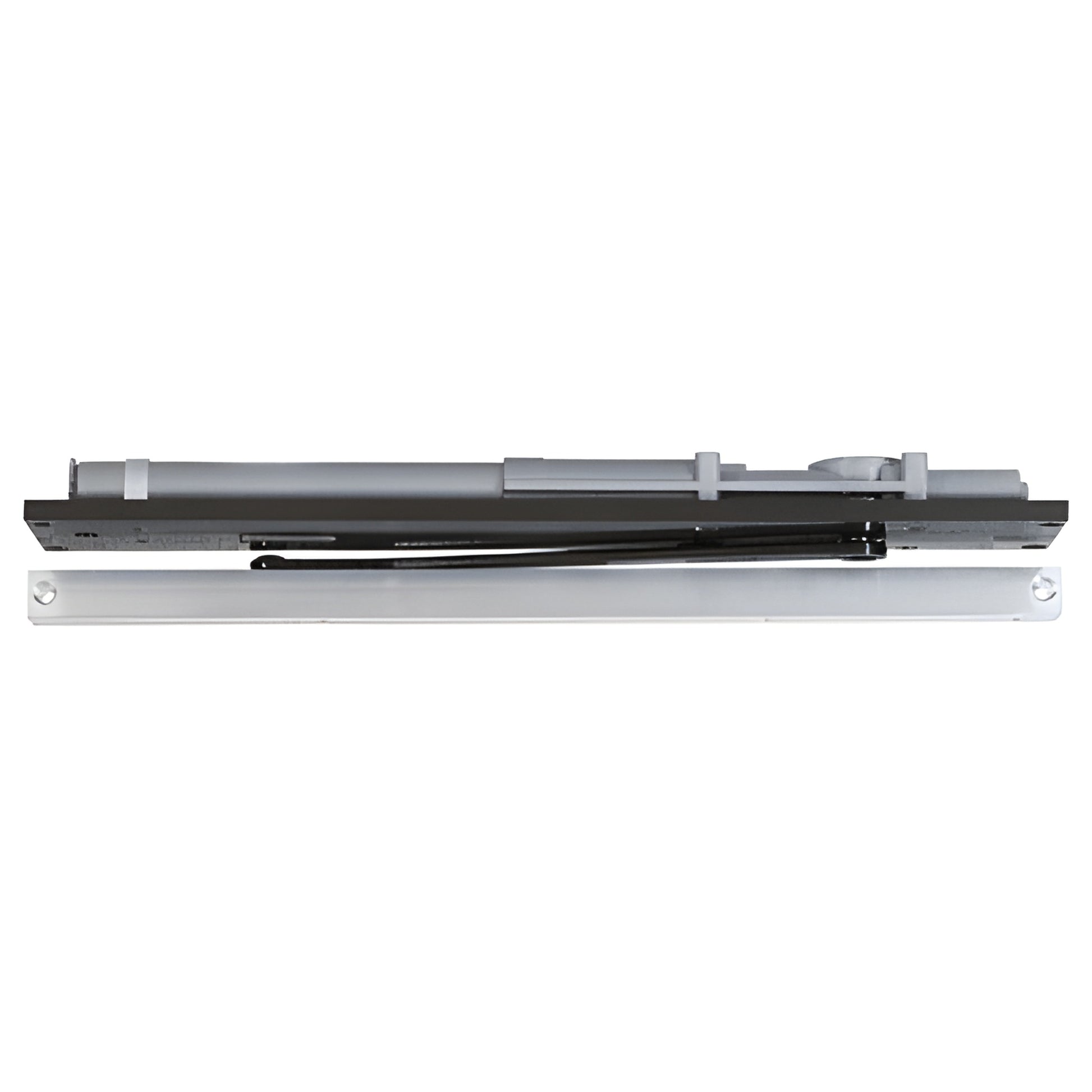

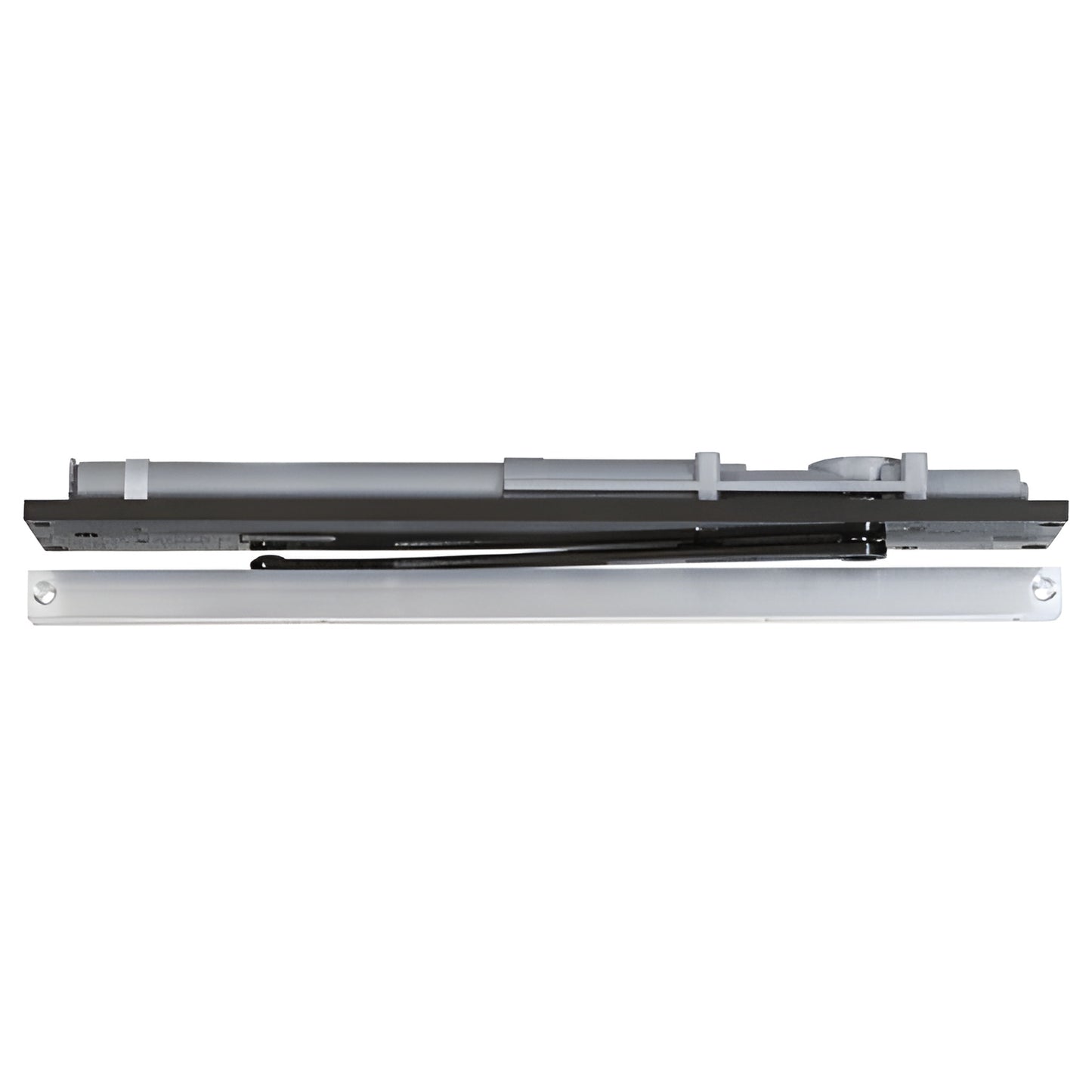

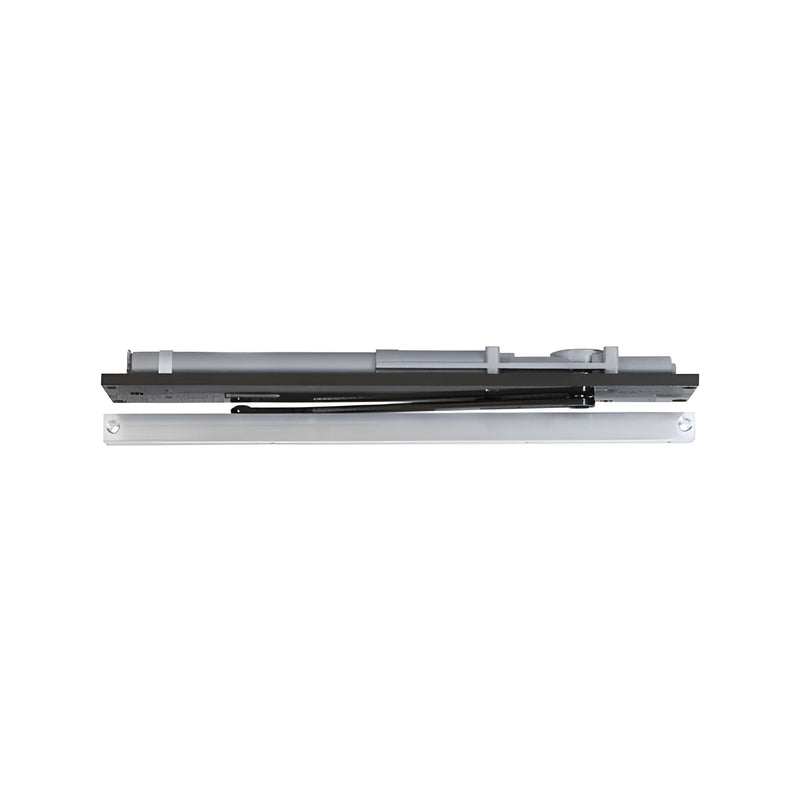

LCN Overhead Concealed ADA Door Closer S1 RH No Hold-Open Dark Bronze
LCN Overhead Concealed ADA Door Closer S1 RH No Hold-Open Dark Bronze
Regular price
$2,684.06 CAD
Regular price
Sale price
$2,684.06 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 2031RDU
Shipping Weight: 12.6 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 12.6 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-5/8 in. (41.3 mm)
Body Length
20-5/8 in. (523.9 mm)
Body Width
3-23/32 in. (94.5 mm)
Case Quantity
2
Closer Type
Overhead Concealed
Cover Plate Length
21-7/8 in. (555.6 mm)
Cover Plate Width
4 in. (101.6 mm)
Door Height
96 in. (2438.4 mm)
Handing
Right Hand
Hold Open Option Available
Yes
Maximum Door Width - Exterior
36 in. (914.4 mm)
Maximum Door Width - Interior
36 in. (914.4 mm)
Recommended Door Type
Aluminum,Hollow Metal
Slide Track Depth
1-3/8 in. (34.9 mm)
Slide Track Length
22-1/2 in. (571.5 mm)
Spring Size
5
UL Listed
Yes
Overview
- Requires minimum 1-3/4" x 4" (44.5 x 102 mm) wide transom
- Certified to ANSI/BHMA A156.4, Grade 1
- UL and cUL listed for self-closing doors (without hold open)
- Fixed spring sizes available: interior doors to 54" (1.37 m) and exterior doors to 42" (1.07 m)
The LCN 2030 Series Pacer® Overhead Concealed Closer is a heavy-duty overhead concealed door closer engineered to fit a shallow 1-3/4" x 4" (44.5 x 102 mm) transom. Its single lever arm and roller assembly deliver smooth, quiet door control. Available track functions and finishes meet most architectural requirements. The closer is handed for right or left swing doors and offers fixed spring sizes that comply with ADA reduced-force considerations for many applications. UL and cUL listings certify self-closing performance (no hold open).
Product Warning:
Reduced Force ADA closers installed and adjusted to meet ADA or other reduced opening force requirements may not provide sufficient force to reliably close and latch the door.
SKU: 2031RDU. Need this overhead concealed closer for a shallow transom or ADA application? Contact us to check availability and specify finish and track function.
