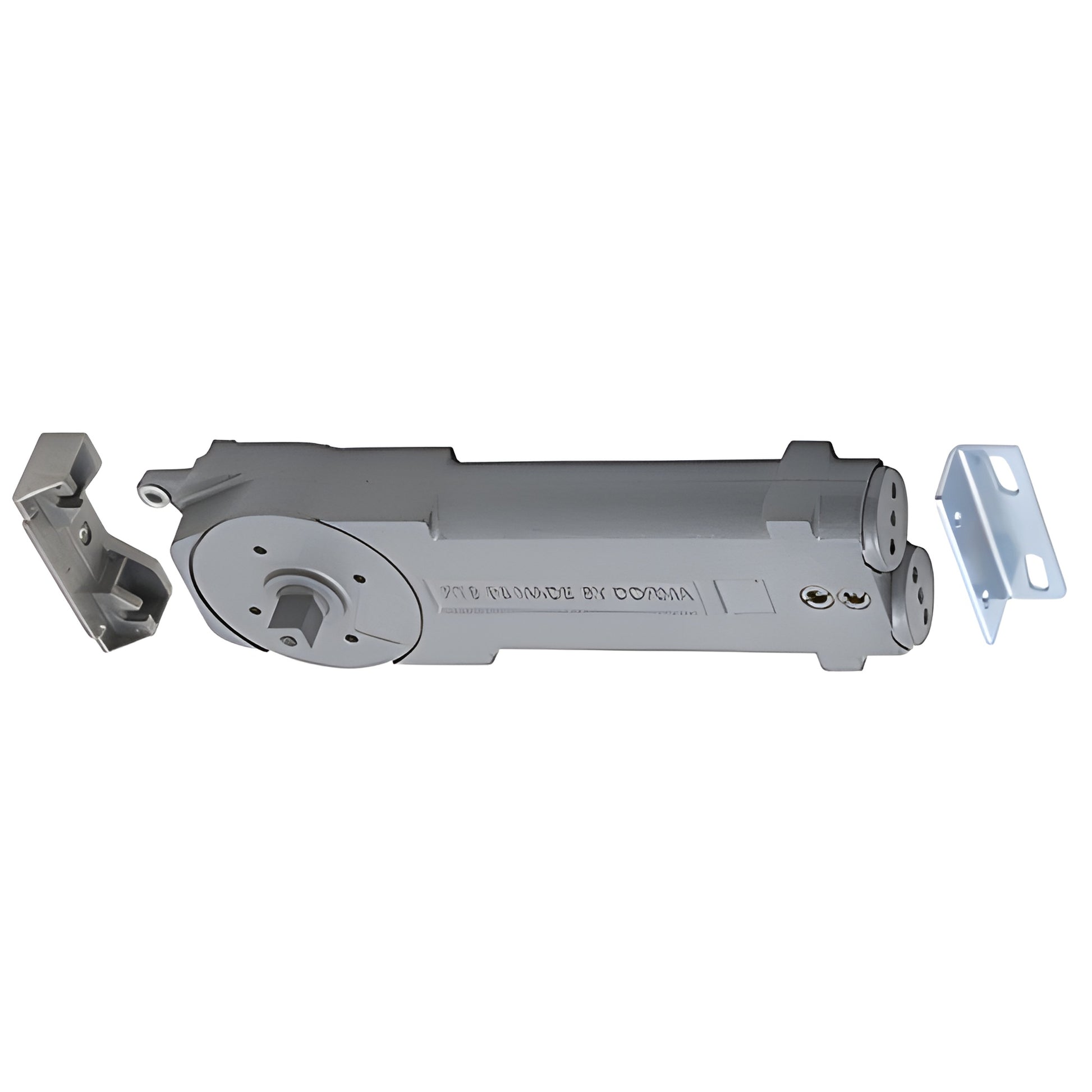

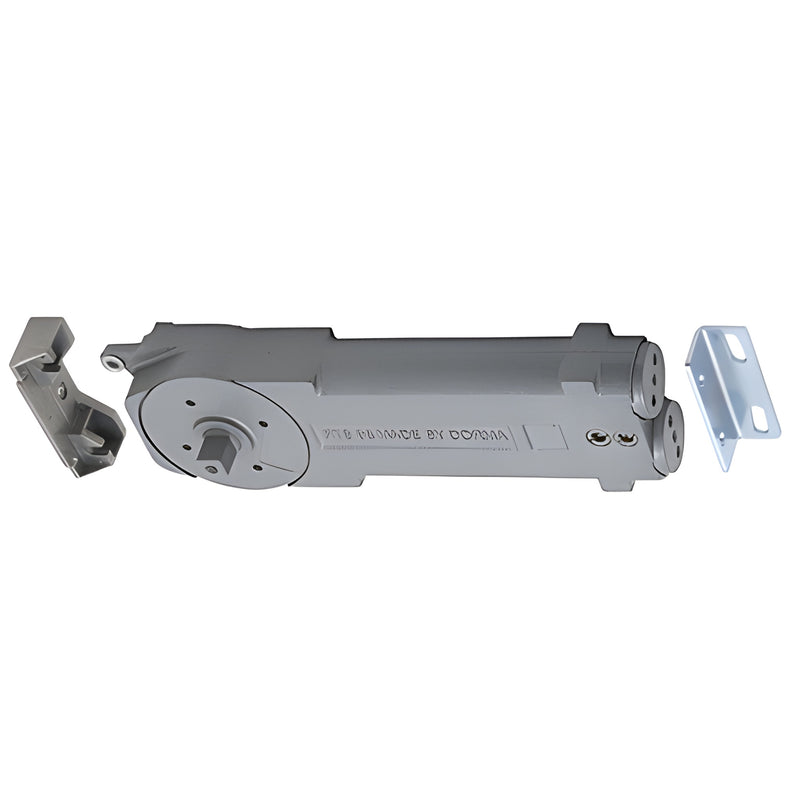

Dormakaba Concealed Overhead Door Closer Size 4 90° Hold-Open
Item# RTS8890H04
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Body Height
1-1/2
Body Length
11-1/2
Body Width
3-9/16
Brand
Dormakaba®
Closer Type
Overhead Concealed
Door Height
96
Door Opening
90
Handing
Double Acting
Hold Open
Yes
Maximum Door Weight
250
Recommended Door Type
Aluminum, Hollow Metal
Spindle
3/4
UL Listed
Yes
- Standard mounting clips included
- Recommended for doors 36" to 48" (914 to 1219 mm) wide x 96" (2438 mm) high
- Maximum door weight: 250 lbs
- Size 4 — heavy-duty overhead concealed door closer
The Dormakaba® Overhead Concealed Closer 90 Degree (SKU: RTS8890H04) is a heavy-duty overhead concealed door closer designed for medium to large interior doors. This 90-degree concealed closer features dual-action operation and non-critical adjustment valves that let you set closing and latching speeds independently for reliable, smooth performance.
Each unit ships with mounting clips, installation templates, and instructions for faster fitting—ideal for contractors and commercial installers specifying an overhead concealed door closer for 36–48" doors up to 250 lb capacity.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please contact CRL Customer Service before placing your order. Product images shown are of the actual product or a close representation. Colors may vary depending on your monitor and video card.
Order the RTS8890H04 Dormakaba 90° overhead concealed closer today for dependable, heavy-duty concealed door control.
