CRL HD 105° Concealed Overhead Door Closer Body No Hold Open

• Interchangeable with all Jackson® style overhead concealed door closers
• 20 models available
• Conveniently packaged with templates and instructions
• 5 year limited warranty
• UL listed

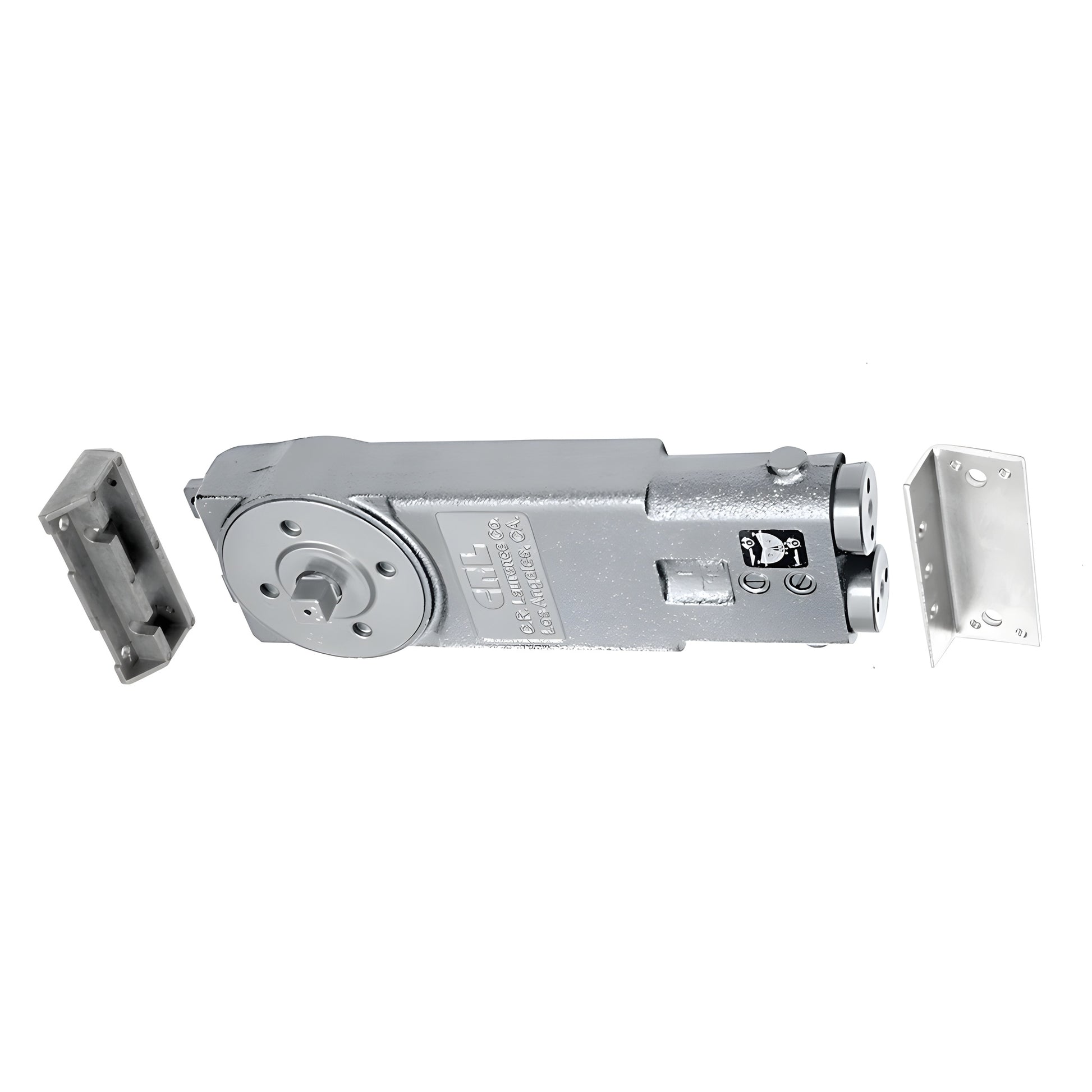

There are two main advantages to buying our Door Closer Bodies with Mounting Clips (SKU: CRL7272). First, if you are replacing a worn-out door closer body, you save money by not purchasing unnecessary hardware. Second, by adding only the accessories you need—pivots, arms, etc.—you can build a custom door closer package for each job. Each door closer body ships with mounting clips, templates, and step-by-step instructions for easy installation.

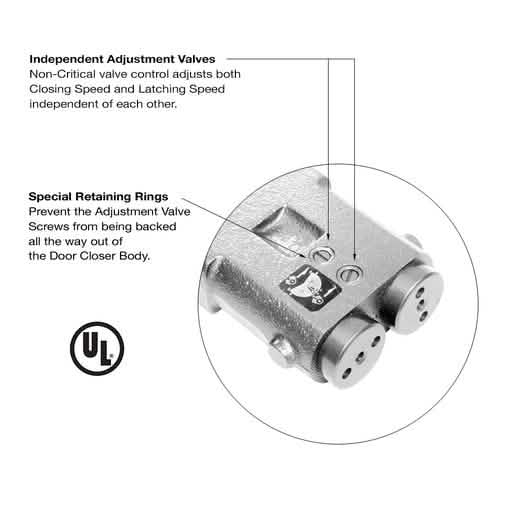

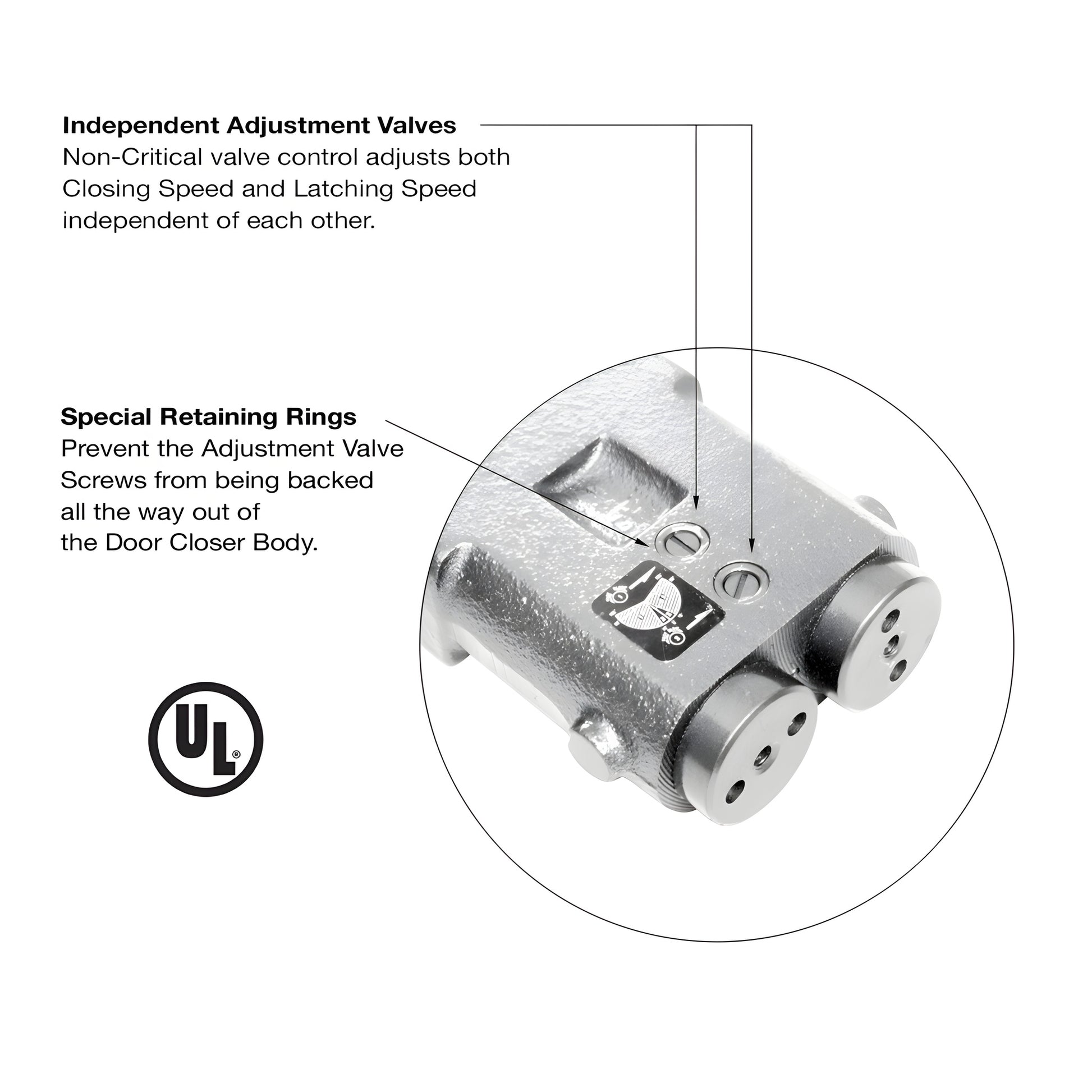

Independent Adjustment Valves
Non-critical valve control lets you adjust closing speed and latching speed independently for precise door control.

Special Retaining Rings
Retaining rings prevent adjustment valve screws from backing out of the door closer body, improving reliability and reducing service calls.

Note: Install an auxiliary floor or overhead door stop to prevent damage from over-extension of the door's maximum allowable swing.

Weight and Size Limitations
Door weight: 200 lbs. (91 kg)
Exterior door width: 42" (1.07 m)
Interior door width: 48" (1.22 m)
Door height (all doors): 96" (2.44 m)

Product Warning:
Do not use this closer on doors weighing in excess of 220 lbs. (100 kg).

Why choose CRL7272? Replace worn Jackson® style overhead concealed door closer bodies with this cost-effective, modular solution—ideal for contractors and facility managers needing replacement door closer bodies and mounting clips. Order now to get the exact accessories you need for a precise, reliable door closer installation.
