CRL 90° Hold-Open Heavy-Duty Overhead Concealed Closer, 3/4" Spindle
CRL 90° Hold-Open Heavy-Duty Overhead Concealed Closer, 3/4" Spindle
Regular price
$143.42 CAD
Regular price
Sale price
$143.42 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL9260
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Case Quantity
6
Closer Type
Overhead Concealed
Door Height
96
Handing
Double Acting
Hold Open
90°
Includes
CRL8010FS
Maximum Door Weight
200
Recommended Door Type
Aluminum, Hollow Metal
Spindle
3/4
UL Listed
Yes
Overview
- Interchangeable with All Jackson® Style Overhead Concealed Door Closers
- Extended 3/4" (19 mm) long spindle for use with patch fittings and door rail hardware
- New adjustable models — 90° and 105° hold-open and no hold-open options
- UL Listed
- Conveniently packaged with mounting clips, templates, and instructions

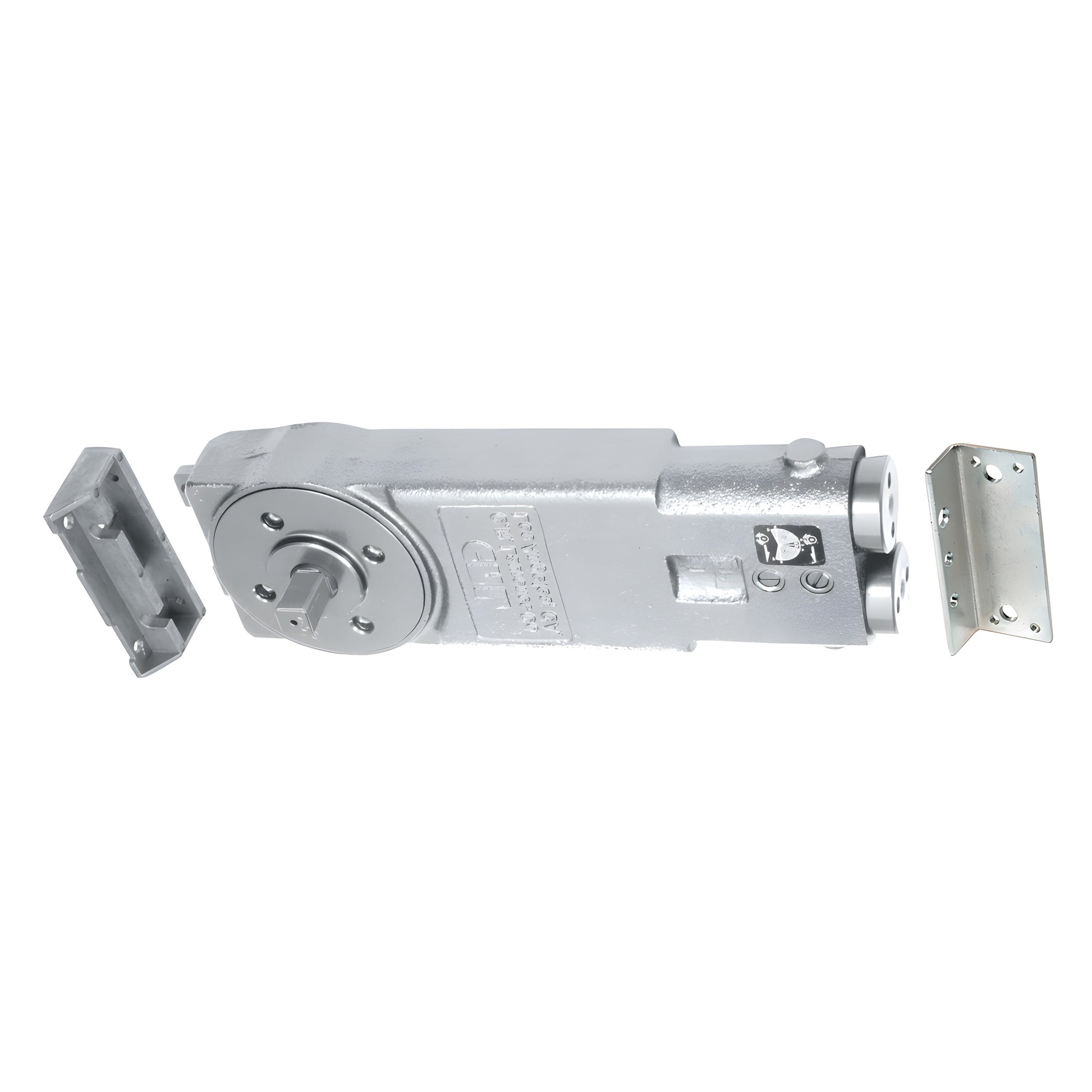

This CRL Overhead Concealed Closer for Patch Fittings and Door Rails (SKU: CRL9260) features an extended 3/4" (19 mm) spindle—the preferred length for patch hardware and door rails. The closer uses dual-action valves (separate closing and latching valves) for independent speed adjustment. Models include 90° and 105° hold-open as well as no hold-open. Interchangeable with International, Jackson® and similar overhead concealed closers. Mounting clips and installation instructions are included.

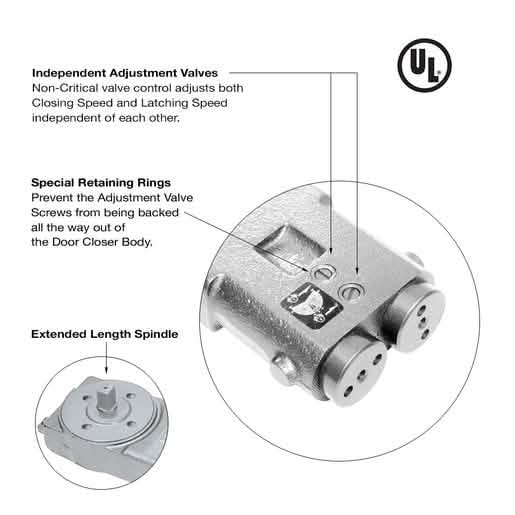

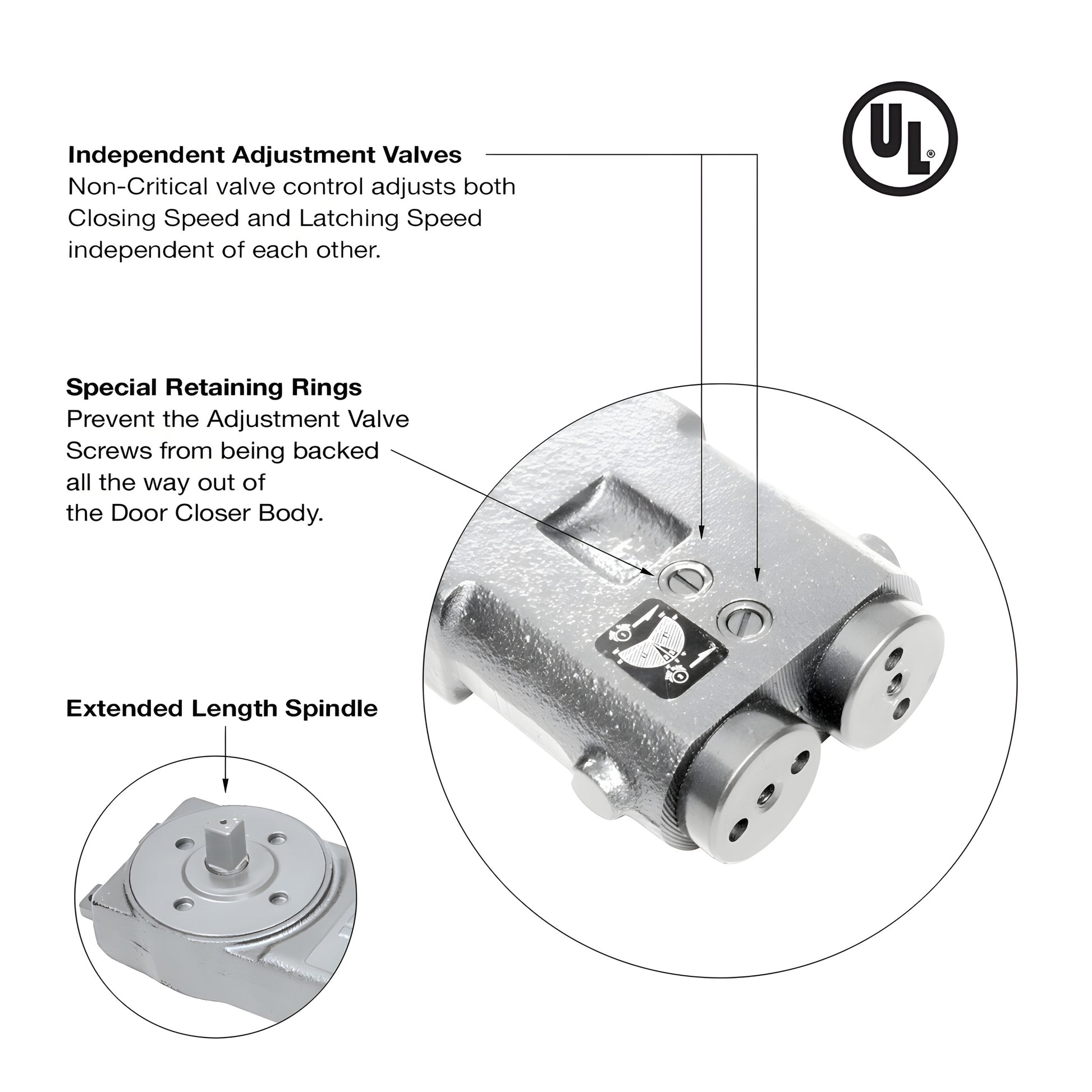

Extended Length Spindle
3/4" (19 mm) spindle for patch fittings, door rail hardware, or when extra reach is required.
Independent Adjustment Valves
Separate, non-critical valves for closing speed and latching speed allow precise tuning for commercial glass doors and storefronts.
Special Retaining Rings
Prevent adjustment valve screws from backing out of the door closer body.
Weight and Size Limitations
Door Weight: 200 lbs (91 kg)
Exterior Door Width: 42" (1.07 m)
Interior Door Width: 48" (1.22 m)
Door Height: 96" (2.44 m)
