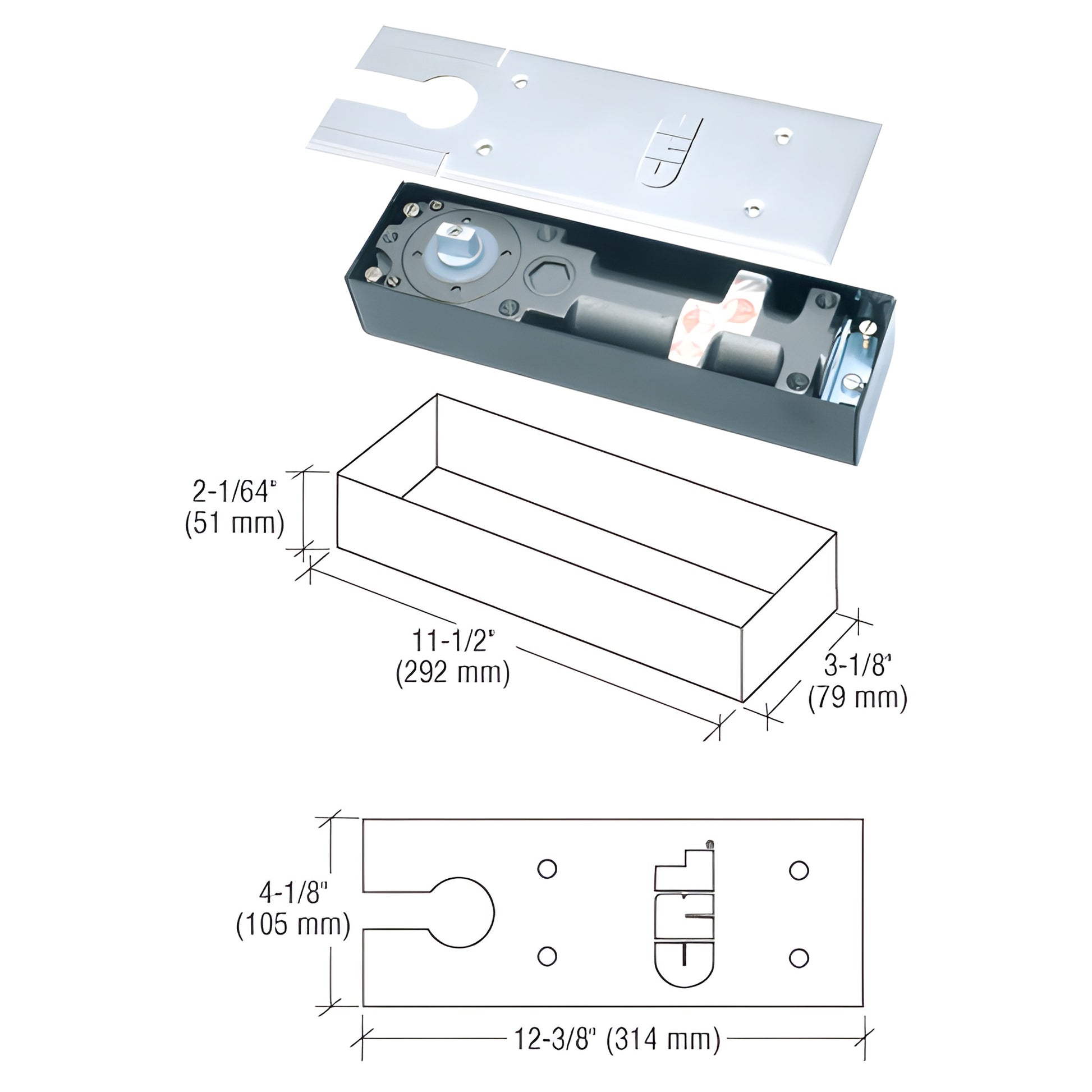

CRL Narrow Floor-Mounted Door Closer, Medium Duty, 180° hold at 90°

• CRL Narrow Width Floor Mounted Door Closer for Patch Hardware — SKU: CRL8460
• Interchangeable spindle heights for different finished floor clearances
• Separate valves for adjustable closing and latching speeds
• Available in 90° hold-open and no hold-open models
• 5 Year Limited Warranty
• UL Listed

These CRL Narrow Width Floor Mounted Door Closers are optimized for doors installed with patch hardware—smaller cover plates create a cleaner, more attractive finish. The closer includes separate valves to independently control closing and latching speeds. Choose 90° Hold Open or No Hold Open models to match site requirements.

The standard 1/8" (3 mm) collar-height spindle is supplied, providing a 5/16" (8 mm) clearance from finished floor to door bottom. Optional spindles are available to accommodate different finished floor heights. Additional accessories such as cover plates, pivots, center-hung and offset arms are also available.

NOTE: Designed to open to a maximum of 180°. Install an auxiliary floor or overhead stop to limit swing to less than 180°.

SPECIFICATIONS:
Maximum Door Weight: 264 lbs (120 kg)
Maximum Interior Door Width: 42" (1.07 m)
Maximum Exterior Door Width: 38" (965 mm)

Product Warning:

The 8400 Series Floor Closer opens to a maximum of 180°. An auxiliary floor or overhead stop is required to stop the door at less than 180°.

Find the CRL8460 Narrow Width Floor Closer for patch hardware—order or contact CRL for pricing and spindle options.
