CRL Aluminum Adjustable Spring Power Size 2 to 5 Surface Mount Door Closer
CRL Aluminum Adjustable Spring Power Size 2 to 5 Surface Mount Door Closer
Regular price
$102.24 CAD
Regular price
Sale price
$102.24 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PR80A
Shipping Weight: 6.1 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 6.1 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Length
9-3/4 in. (247.7 mm)
Case Quantity
10
Certification
A.D.A. Barrier-Free Requirements
Closer Action
Adjustable
Closer Type
Surface Mount
Finish/Color
Aluminum
Horizontal Mounting Holes
9-1/16 in. (230.2 mm)
Includes
Parallel Arm Brackets, Mounting Hardware & Instructions
Spring Size
2 To 5
UL Listed
Yes
Vertical Mounting Holes Center To Center
3/4 in. (19.1 mm)
Overview
- Multi-size adjustable spring power closers — Sizes 1 to 5
- Barrier-Free model available to meet A.D.A. opening force requirements
- Fits doors 24" to 54" wide and 33 to 264 lbs (610 mm to 1.37 m / 15 to 120 kg)
- UL listed

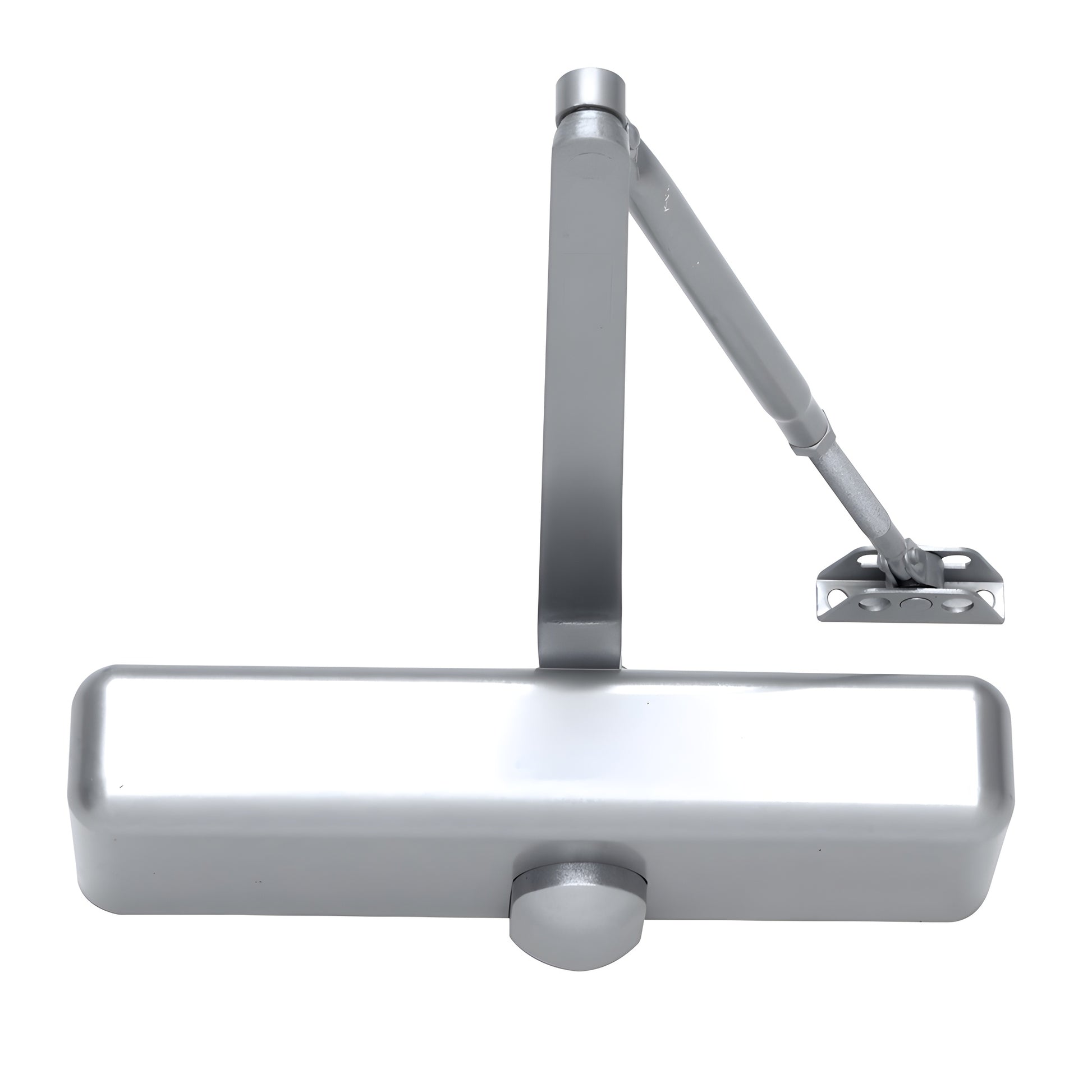

The CRL PR80 Series PR80A — Multi-Size Adjustable Spring Power Surface Mounted Door Closers replace single-size surface closers with one compact, retrofit-ready unit. The closer uses the common 9-1/16" x 3/4" (230 x 19 mm) hole template for quick installation and adjusts from Size 1 through 5 to cover a wide range of door widths and weights. A Barrier-Free (low opening resistance) model is available for ADA-compliant installations. Independent closing and latching speed controls plus an adjustable backcheck protect the closer, door, and adjacent surfaces from wind or heavy pedestrian impact.
All PR80 closers are UL listed and carry a ten-year warranty. Each unit ships with Parallel Arm Brackets and mounting hardware for regular, top-jamb, or parallel-arm installation. The closer includes a standard plastic slim-style cover; optional accessories such as drop plates and hold-open arms are available for special installations.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door depending on site conditions and door size.
Order PR80A today or contact CRL Customer Service for pricing and technical assistance.
