CRL Black Adjustable Spring Surface Mount Door Closer Size 2-5

• Multi-size adjustable spring power closers — Sizes 1 to 5
• Barrier-Free model available to meet A.D.A. opening force requirements
• For doors 24"–54" wide and weighing 33–264 lbs
• UL listed

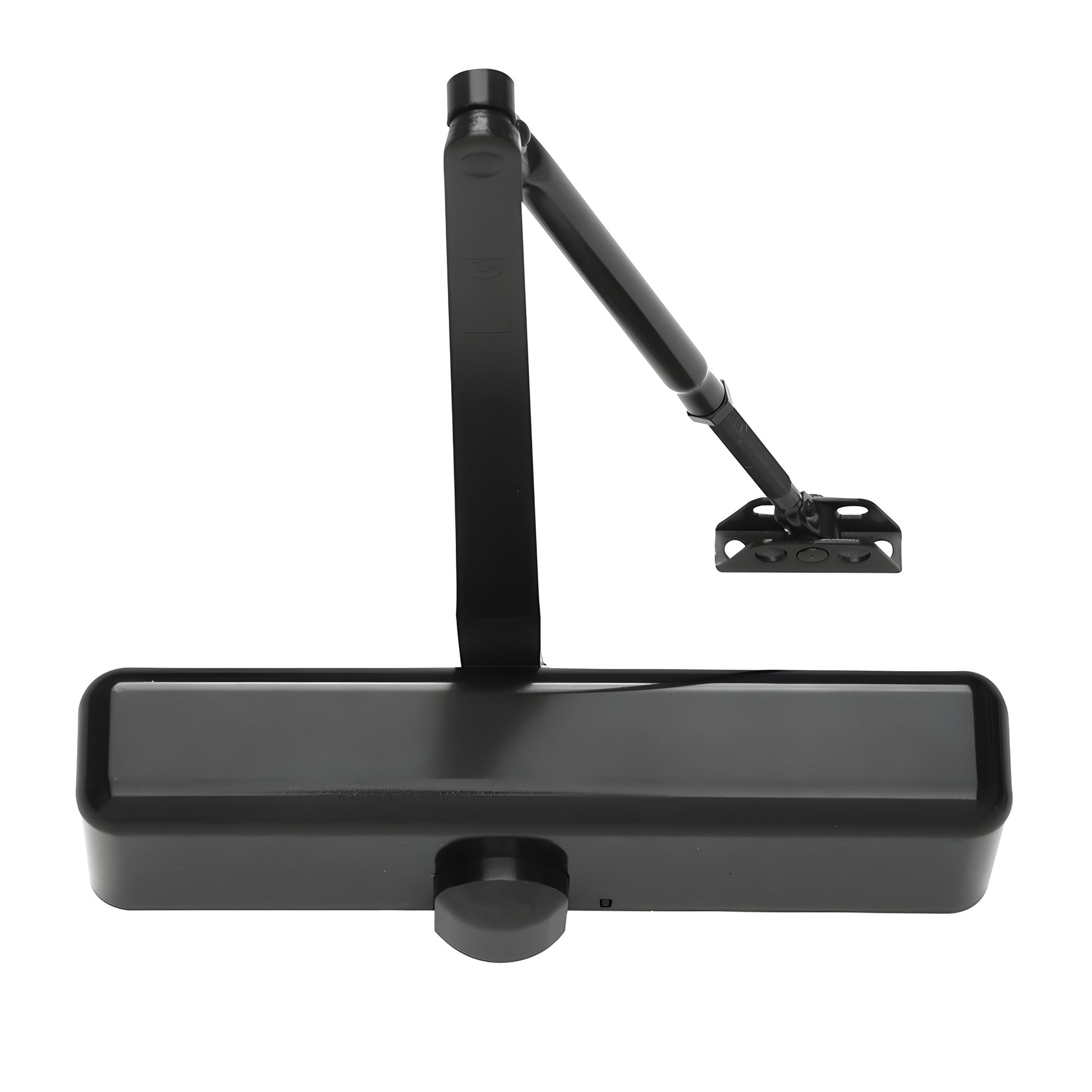

The CRL PR80 Series Multi-Size Adjustable Spring Power Surface Mounted Door Closers (SKU: PR80BLK) replace multiple single-size closers with one compact unit. Matching the common 9-1/16" x 3/4" (230 x 19 mm) hole template, the PR80 is ideal for new and retrofit installations. Adjustable from Size 1 through 5, it accommodates doors 24"–54" (610 mm–1.37 m) and up to 264 lbs (120 kg). A Barrier-Free (low opening resistance) model complies with ADA opening force requirements for accessible doors. Independent adjustable closing and latching speed controls plus an adjustable backcheck help protect the door and adjacent surfaces from violent openings caused by wind or heavy traffic. Parallel arm brackets and mounting hardware are included for regular, top jamb, or parallel arm installation. The closer ships with a standard plastic slim-style cover; optional accessories such as drop plates and hold-open arms are available for special installations. All PR80 closers are UL listed and backed by a 10-year warranty. Parallel arm bracket included. Ideal keywords: multi-size adjustable spring power surface mounted door closer, ADA barrier-free door closer, UL listed door closer, adjustable closing and latching speed controls.

Product Warning:

Closers set to meet A.D.A. opening force limits may not provide sufficient spring power to reliably control and close a door under varying site conditions or with larger doors. Verify suitability for your application before final installation.
Order PR80BLK or contact CRL Customer Service for pricing and availability.
