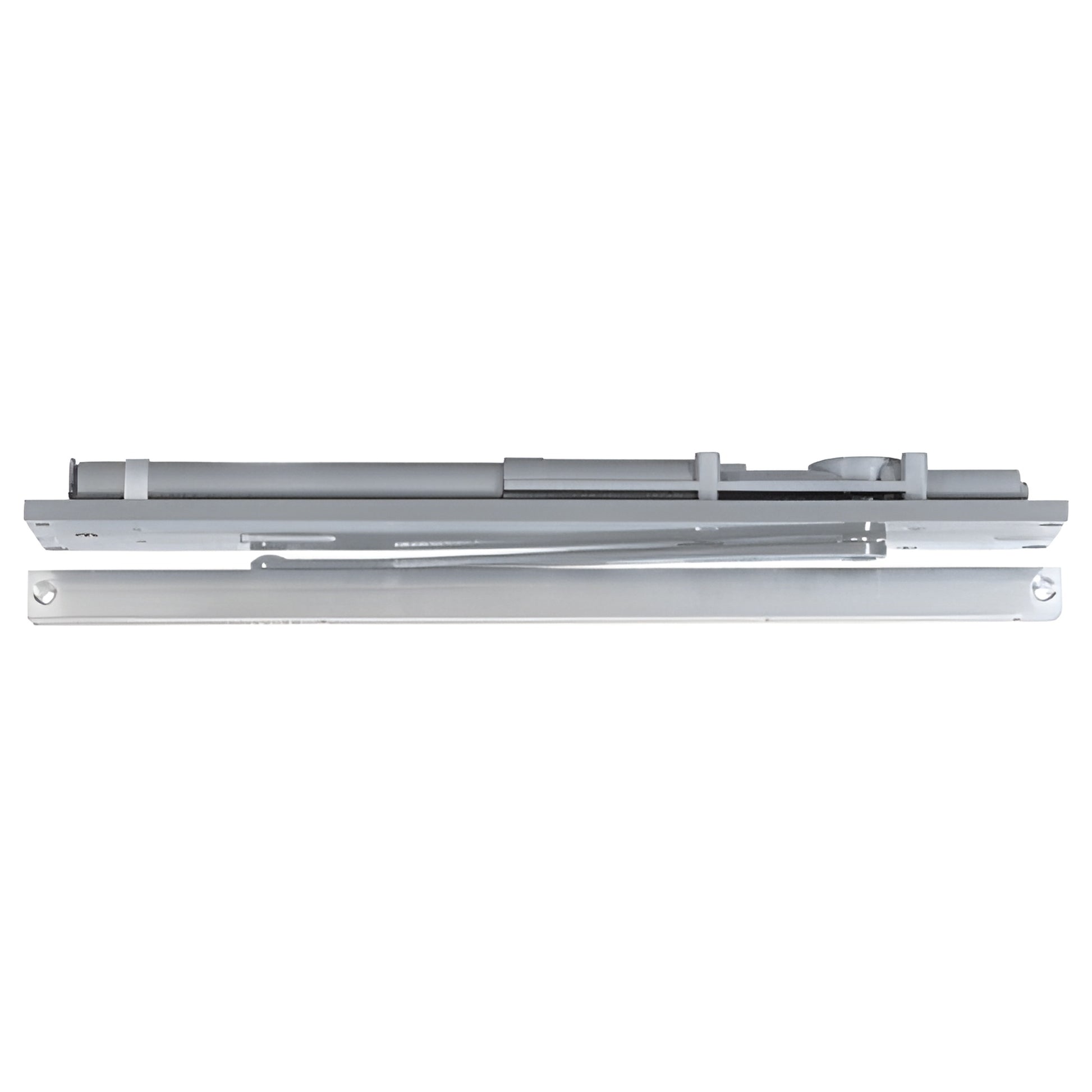

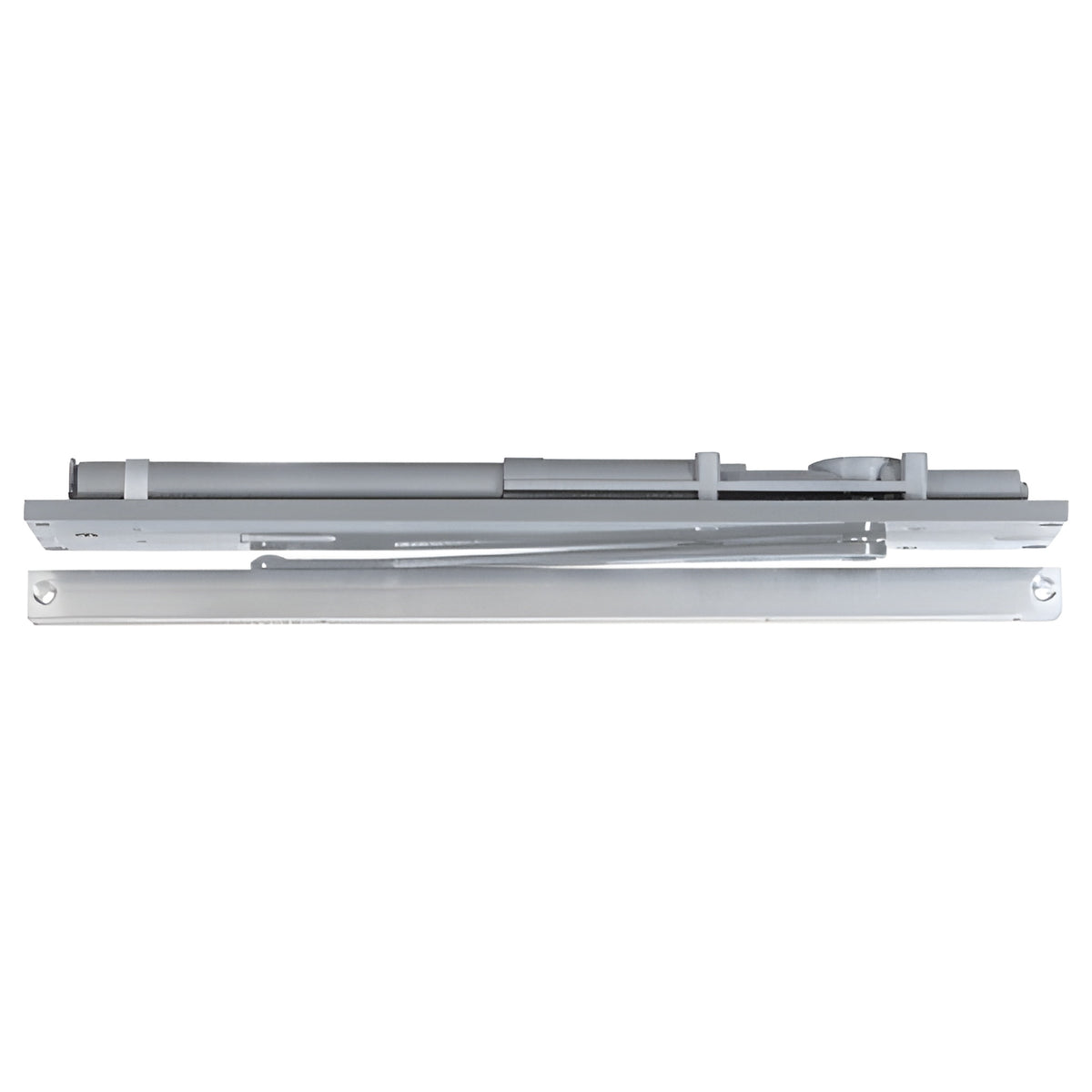

LCN Concealed Overhead Closer ADA Size 1 RH No Hold Open Aluminum
LCN Concealed Overhead Closer ADA Size 1 RH No Hold Open Aluminum
Regular price
$2,790.57 CAD
Regular price
Sale price
$2,790.57 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 2031RAL
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-5/8 in. (41.3 mm)
Body Length
20-5/8 in. (523.9 mm)
Body Width
3-23/32 in. (94.5 mm)
Case Quantity
2
Closer Type
Overhead Concealed
Cover Plate Length
21-7/8 in. (555.6 mm)
Cover Plate Width
4 in. (101.6 mm)
Door Height
96 in. (2438.4 mm)
Handing
Right Hand
Hold Open Option Available
Yes
Maximum Door Width - Exterior
36 in. (914.4 mm)
Maximum Door Width - Interior
36 in. (914.4 mm)
Recommended Door Type
Aluminum,Hollow Metal
Slide Track Depth
1-3/8 in. (34.9 mm)
Slide Track Length
22-1/2 in. (571.5 mm)
Spring Size
5
UL Listed
Yes
Overview
- Requires minimum 1-3/4" x 4" (44.5 x 102 mm) wide transom
- Certified to ANSI Standard A156.4, Grade 1 door closer
- UL and cUL listed for self-closing doors, without hold open
- Fixed spring sizes available: interior doors to 54" (1.37 m) and exterior doors to 42" (1.07 m)

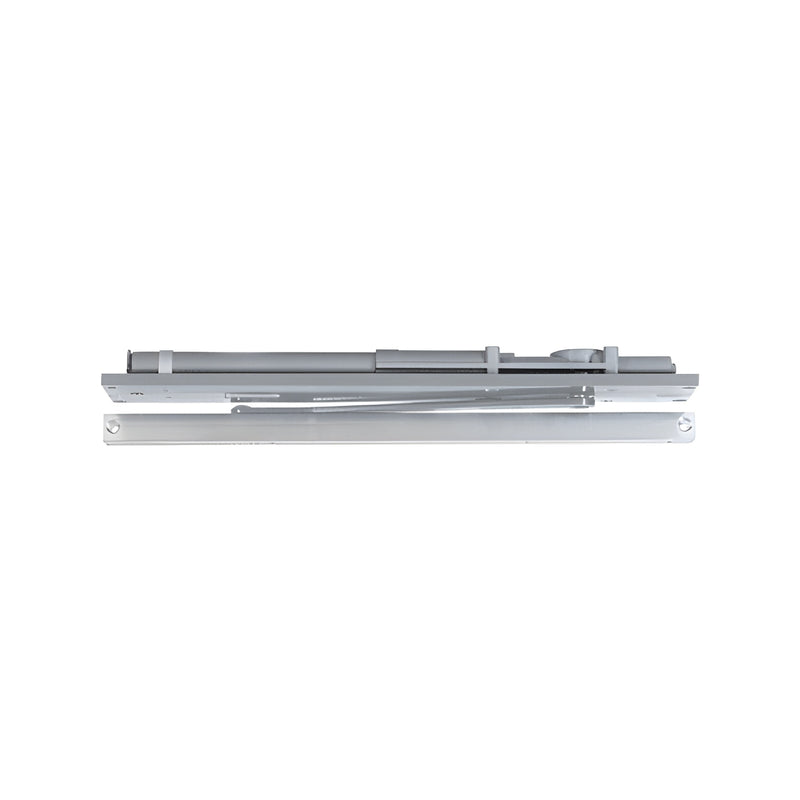

The LCN 2030 Series Pacer® Overhead Concealed Closer (SKU 2031RAL) is a heavy-duty overhead concealed door closer engineered for shallow transoms (1-3/4" x 4" / 44.5 x 102 mm). Designed as a high-performance overhead concealed closer and Grade 1 commercial closer, it features a single lever arm and roller assembly for smooth, quiet door control. Available in multiple finishes and track functions to meet architectural requirements, the closer is handed for right or left swing doors and offers fixed spring sizes that satisfy ADA reduced-force applications for interior doors up to 54" and exterior doors up to 42". The series is UL and cUL listed for self-closing doors without hold open.
Product Warning:
Reduced force ADA closers installed and adjusted based on ADA or other reduced opening force requirements may not provide sufficient force to reliably close and latch the door.
Find the LCN 2030 Series overhead concealed closer for tight transom applications—contact us to order or request a quote.
