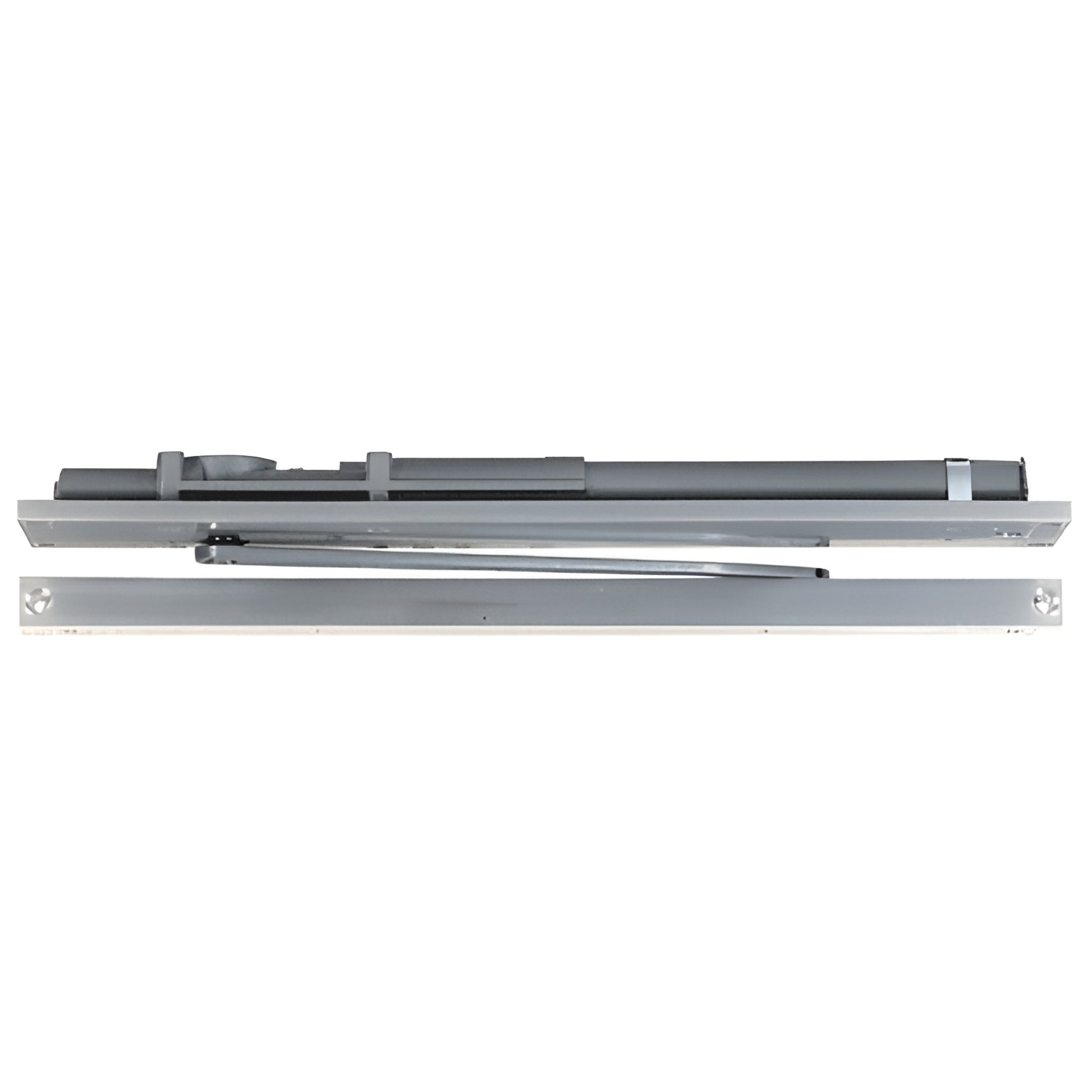

LCN Concealed Overhead Door Closer Size 5 LH Aluminum No Hold-Open
LCN Concealed Overhead Door Closer Size 5 LH Aluminum No Hold-Open
Regular price
$2,684.06 CAD
Regular price
Sale price
$2,684.06 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 2035LAL
Shipping Weight: 11.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Height
1-5/8 in. (41.3 mm)
Body Length
20-5/8 in. (523.9 mm)
Body Width
3-23/32 in. (94.5 mm)
Case Quantity
2
Closer Type
Overhead Concealed
Cover Plate Length
21-7/8 in. (555.6 mm)
Cover Plate Width
4 in. (101.6 mm)
Door Height
96 in. (2438.4 mm)
Finish/Color
Aluminum
Handing
Left Hand
Hold Open Option Available
Yes
Recommended Door Type
Aluminum,Hollow Metal
Slide Track Depth
1-3/8 in. (34.9 mm)
Slide Track Length
22-1/2 in. (571.5 mm)
UL Listed
Yes
Overview
- Requires minimum 1-3/4" (44.5 mm) x 4" (102 mm) wide transom
- Certified to ANSI A156.4, Grade 1 heavy-duty closer
- UL and cUL listed for self-closing doors (no hold-open)
- Fixed spring sizes available — interior doors to 54" (1.37 m), exterior doors to 42" (1.07 m)
The LCN 2030 Series Pacer® Overhead Concealed Closer is a Grade 1, heavy-duty overhead concealed door closer engineered for shallow transoms (1-3/4" x 4"). Its single lever arm and roller assembly deliver smooth, quiet door control. Available in multiple finishes and track functions to meet architectural requirements, the closer is handed for right or left swing doors and offers ADA-compliant fixed spring sizes for interior and exterior applications. UL and cUL listed for self-closing doors without hold-open, the 2030 Series is ideal when you need a reliable, narrow-transom overhead concealed door closer. SKU: 2035LAL
Order SKU 2035LAL or contact CRL Customer Service to confirm finish, track function, and shipping details.
Specifications
Installation Instructions
