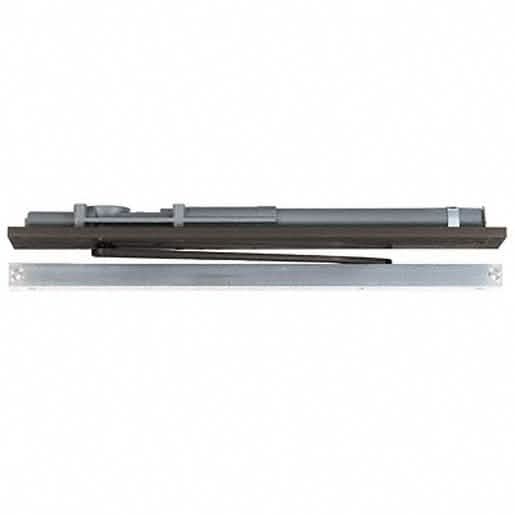

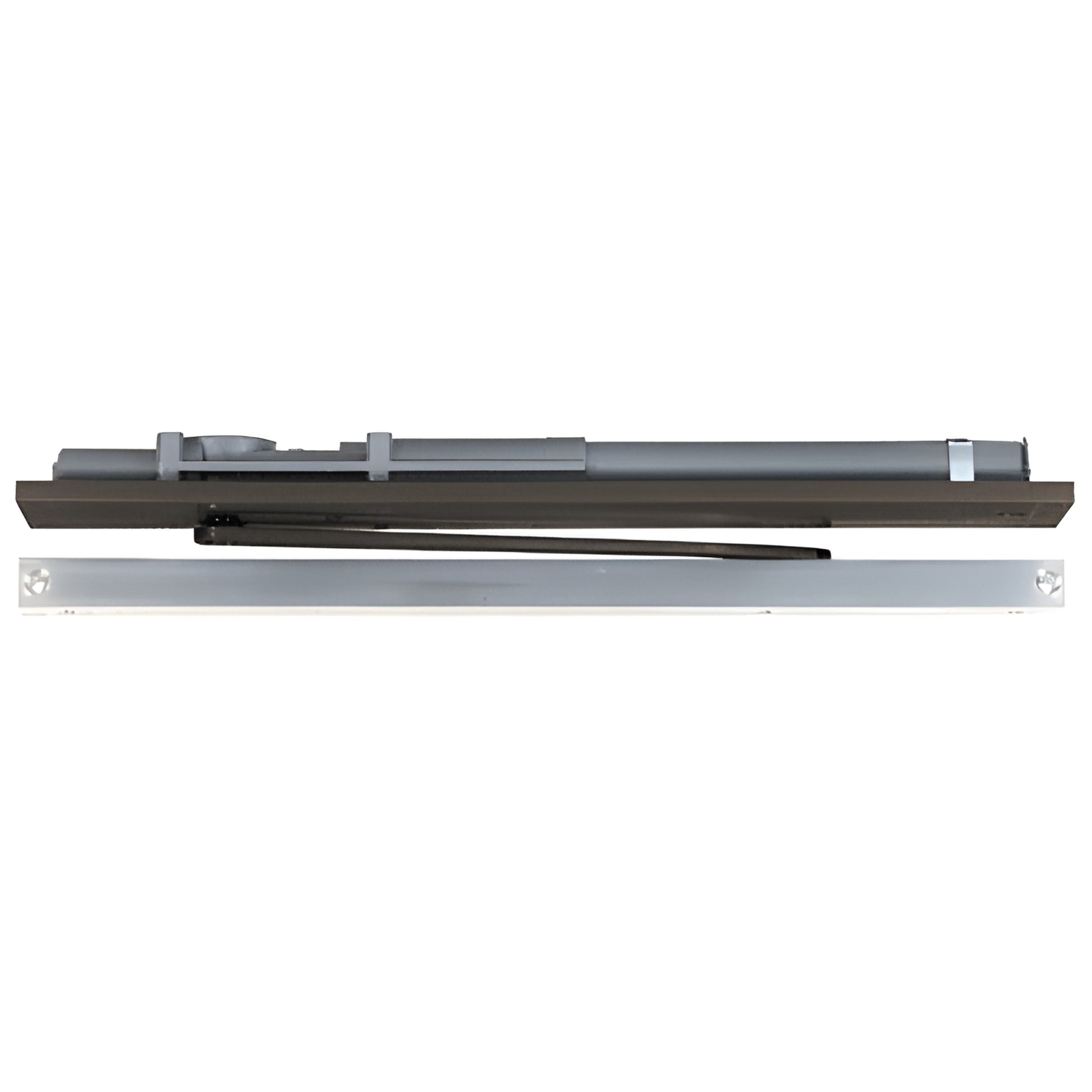

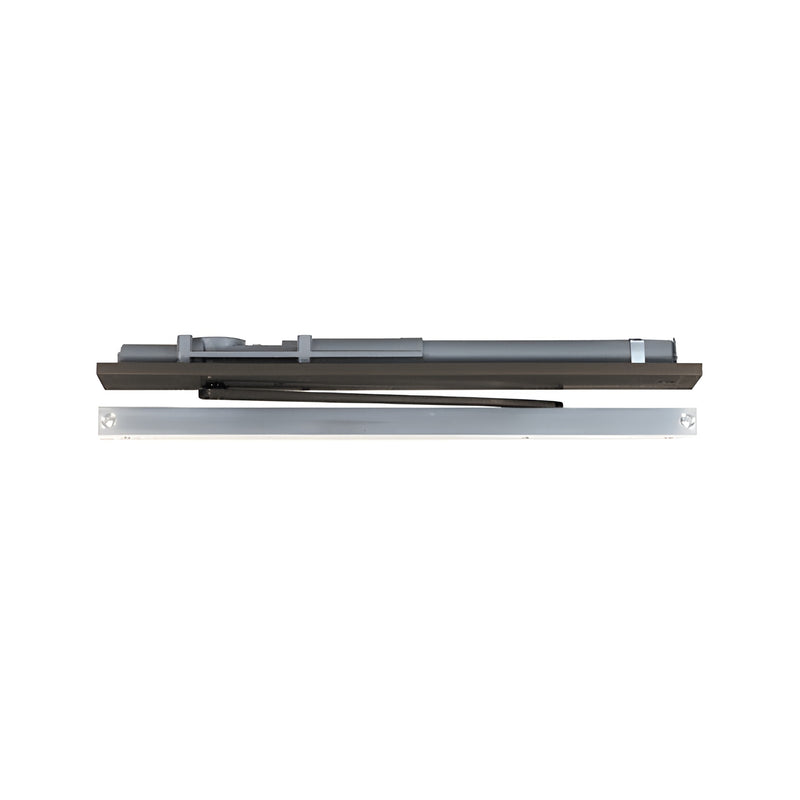

LCN Concealed Overhead Closer Size 5 LH No Hold-Open Dark Bronze
LCN Concealed Overhead Closer Size 5 LH No Hold-Open Dark Bronze
Regular price
$2,684.06 CAD
Regular price
Sale price
$2,684.06 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 2035LDU
Shipping Weight: 10.915 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 10.915 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Height
1-5/8 in. (41.3 mm)
Body Length
20-5/8 in. (523.9 mm)
Body Width
3-23/32 in. (94.5 mm)
Case Quantity
2
Closer Type
Overhead Concealed
Cover Plate Length
21-7/8 in. (555.6 mm)
Cover Plate Width
4 in. (101.6 mm)
Door Height
96 in. (2438.4 mm)
Finish/Color
Dark Bronze
Handing
Left Hand
Hold Open Option Available
Yes
Recommended Door Type
Aluminum,Hollow Metal
Slide Track Depth
1-3/8 in. (34.9 mm)
Slide Track Length
22-1/2 in. (571.5 mm)
UL Listed
Yes
Overview
- Requires minimum 1-3/4" (44.5 mm) x 4" (102 mm) wide transom
- Certified to ANSI Standard A156.4, Grade 1
- UL and cUL listed for self-closing doors (no hold-open)
- Fixed spring sizes available for interior doors to 54" (1.37 m) and exterior doors to 42" (1.07 m)
The LCN 2030 Series Pacer® Overhead Concealed Closer is a heavy-duty, overhead concealed closer engineered for shallow transoms (1-3/4" x 4"). Its single lever arm and roller assembly deliver smooth, quiet door control ideal for commercial and institutional applications. Available in multiple track functions and finishes to meet architectural needs, the unit is handed for right or left swing doors and offers fixed spring sizes that meet ADA requirements for interior and exterior openings. UL and cUL listings for self-closing doors and ANSI A156.4 Grade 1 certification underline its reliability and performance.
SKU: 2035LDU
Order the LCN 2030 Series Pacer® overhead concealed closer (SKU 2035LDU) today for a Grade 1, UL-listed solution built for shallow-transom commercial doors.
Specifications
Installation Instructions
