Rixson® Satin Chrome Right-Hand 3/4" Offset Intermediate Door Pivot
Rixson® Satin Chrome Right-Hand 3/4" Offset Intermediate Door Pivot
Regular price
$626.26 CAD
Regular price
Sale price
$626.26 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# M19RHSC
Shipping Weight: 2.28 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.28 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Bottom Door Rail Depth
1-3/4
Brand
Rixson
Door Height
Max. 90 in. (2286 mm)
Finish/Color
Satin Chrome
Handing
Right Hand
Includes
Screws
Material
Aluminum
Pivot Type
Intermediate
Recommended Door Type
Aluminum, Wood, Hollow Metal
Overview
- Maintains door alignment
- Available in four popular architectural finishes

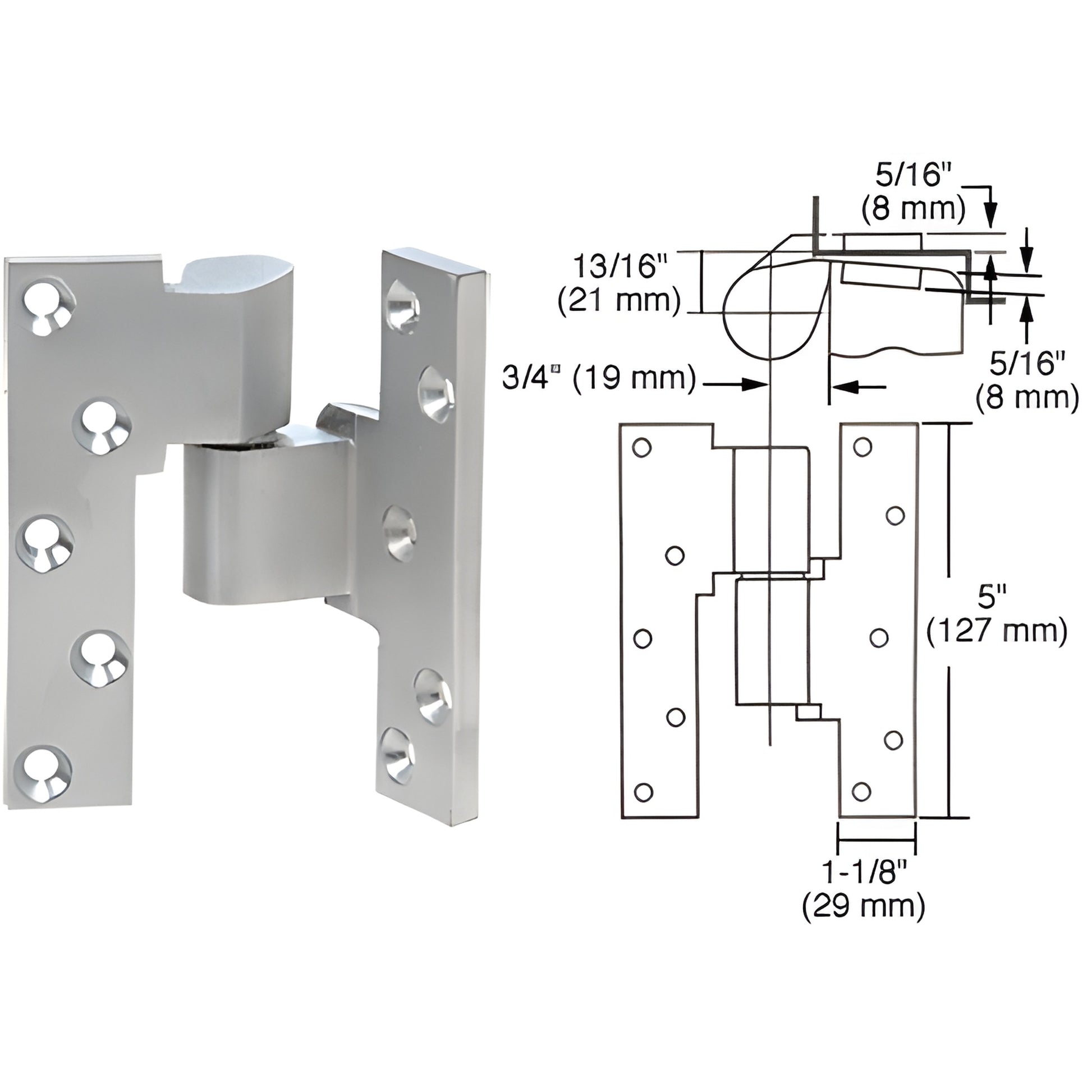

Rixson® 3/4" (19 mm) Offset Intermediate Pivots — SKU M19RHSC are mortised, handed intermediate pivots designed for use with standard 1-3/4" (44.5 mm) doors to maintain proper door alignment. These non load-bearing pivots are supplied with wood and machine screws for most common installations and are recommended for doors 90" (2.28 m) or taller. Use one additional intermediate pivot for each extra 30" (762 mm) or fraction thereof. Ideal for commercial and architectural doors requiring an unobtrusive, mortised 3/4" offset intermediate pivot in four standard finishes.
Product Warning:
These are not intended to be load-bearing pivots. They are to maintain the door's alignment only.
Specifications
Templates
