Product Details
- 25 to 40 Lbs. (11 to 18 kg) of Holding Power
- Concealed Wiring
- Selectable Input Voltage 12V DC, 24V AC/DC, 120V AC

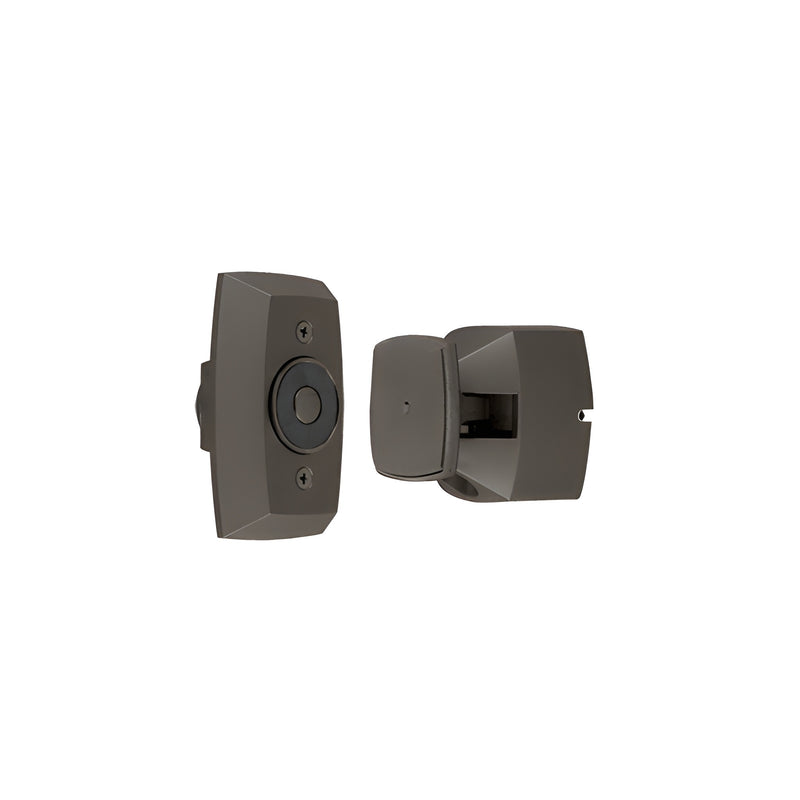

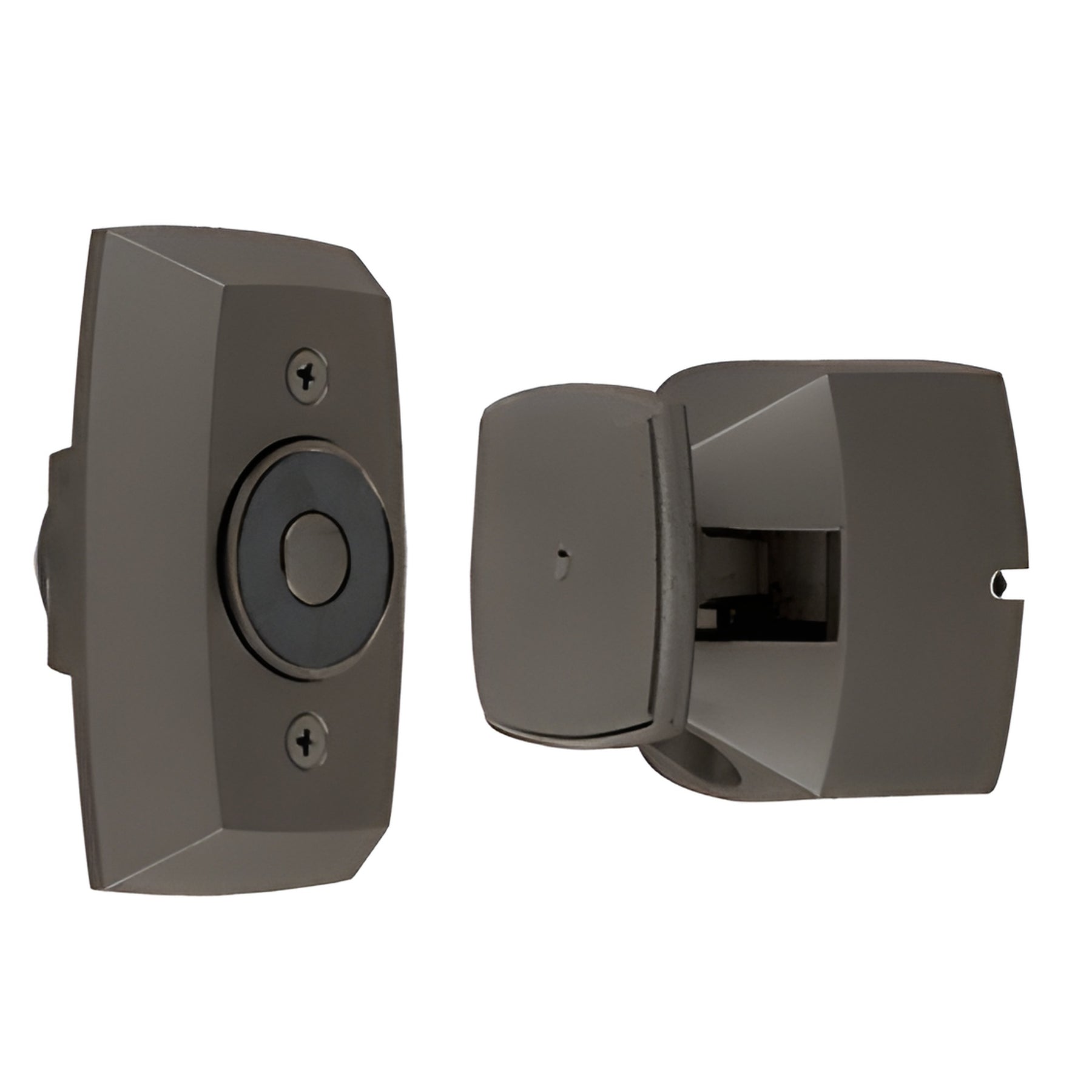

Rixson® Electromagnetic Door Holders are designed for virtually any remote door release application. They are primarily used to hold fire and smoke barrier doors open until released by a remote smoke detector or switching device.
NOTE: A separate closing device is required to close the doors as normal closing operation.
SPECIFICATIONS:
Input: Selective 12V DC, 24V AC/DC, 120V AC
Current Draw: .040A @ 12V DC; .020A @ 24V AC/DC; .020A @ 120V AC
INDOOR USE ONLY:
Dimensions: Magnet = 4-5/8" x 2-3/4" x 1" (118 x 70 x 25 mm)
