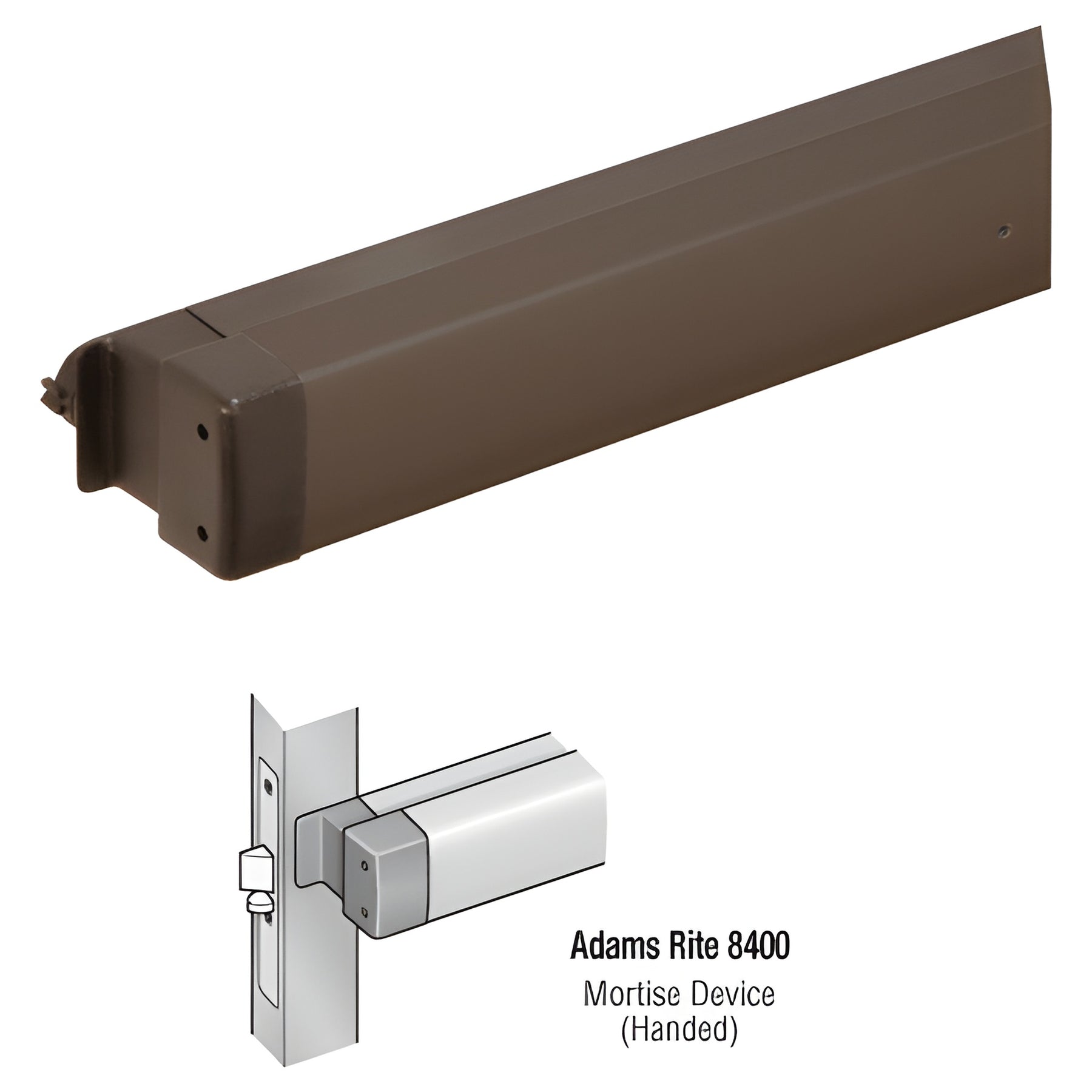

Adams Rite 8400 48-inch Panic Mortise Exit Device RH Dark Bronze
Item# DH84122R048
Shipping Weight: 8.275 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.275 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Brand
Adams Rite
Certification
ANSI A156.3 Grade 1
Door Height
96
Door Thickness
1-3/4
Door Width
48
Finish/Color
Dark Bronze
Handing
Right Hand, Left Hand Reverse Bevel
Includes
Mounting Hardware
Material
Aluminum
Minimum Stile Width
2
Model
84222
Panic Bar Base Height
2-3/4
Panic Bar Projection
2-5/8
Panic Dogging
Standard Hex Key Dogging
Panic Type
Mortise Exit Device
Push Pad Width
29-1/4
Recommended Door Type
Aluminum, Wood, Hollow Metal
Replacement Parts
DL2170SCKDDU, DL2170Y8KDDU, Special Order
Series
8400
UL Listed
Yes
- Fits door stiles as narrow as 2" (51 mm)
- UL Listed and tested to ANSI A156.3, Grade 1
- Easy-to-install mortise exit device for single-door applications
The 8400 Series Narrow Stile Mortise Exit Device (SKU: DH84122R048) is engineered for narrow-stile aluminum doors that require a life-safety mortise locking solution. Ideal for commercial and institutional single-door installations where a compact, high-performance exit device is needed.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary depending on your monitor settings.
Highlights: Narrow-stile aluminum exit device, UL Listed ANSI A156.3 Grade 1, mortise locking for life-safety compliance.
