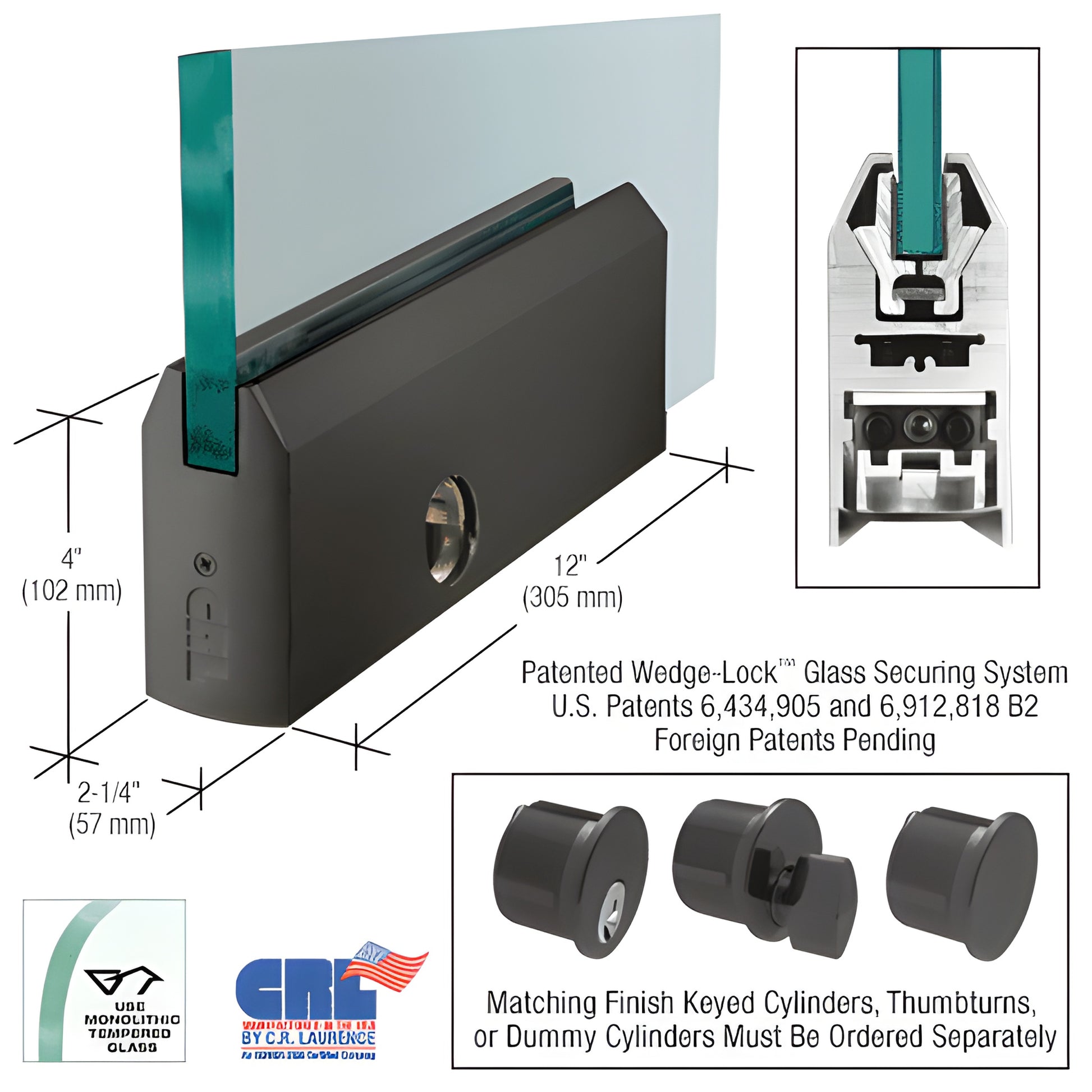

Black Bronze Anodized 4" Tapered DRS Rail w/ Lock 3/4" Glass 12in

• 12" (305 mm) Length for 3/4" (19 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

SKU: DR4TDU34PL

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System, is a high-performance glass door rail system engineered for monolithic tempered glass doors. The exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) secures glass by applying downward pressure through two glass-retaining aluminum extrusions and a flat stainless steel bar. As the bar is tightened with socket head cap bolts, angled extrusions engage the door rail wedge to produce exceptionally high clamping force — more than 900 lbs. in our 9" (228.6 mm) corner rail — providing robust, long-lasting attachment for glass door assemblies.

NOTE: Actual Product Height: 4-1/16" (103 mm)

The Wedge-Lock® system delivers a faster, more reliable installation than conventional door rails. CRL door rails arrive fully fabricated and ready-to-install with end caps installed. After mounting the rail, attach the door arm or pivot (not included) to the pre-assembled adjustable door alignment slide. The Adjustable Door Alignment System allows ±1/8" (3.2 mm) field adjustment toward or away from the jamb on both top and bottom rails without removing the door—ideal for vertically out-of-square openings.

To adjust the door after installation, remove the end cap to access three socket head cap bolts: the center bolt locks the slide; the two outer bolts provide the 1/8" in/out adjustment. The low-profile adjustable slide accommodates pivots with slotted grooves and non-standard setback locations.

Why choose Wedge-Lock® Door Rails (glass door rail system):

• Accepts 3/8" to 3/4" (10–19 mm) glass — compatible with tempered monolithic glass doors
• Rigid, single-component housing that resists shifting or loss of adjustment over time
• Internal components remain installed during shipping and mounting—no disassembly required
• Glass securing pads designed for longevity in extreme environments
• Available with or without locks; matching keyed cylinders or thumbturns sold separately
• Built-in jamb alignment block for quicker jobsite setup (arms and pivots ordered separately)
