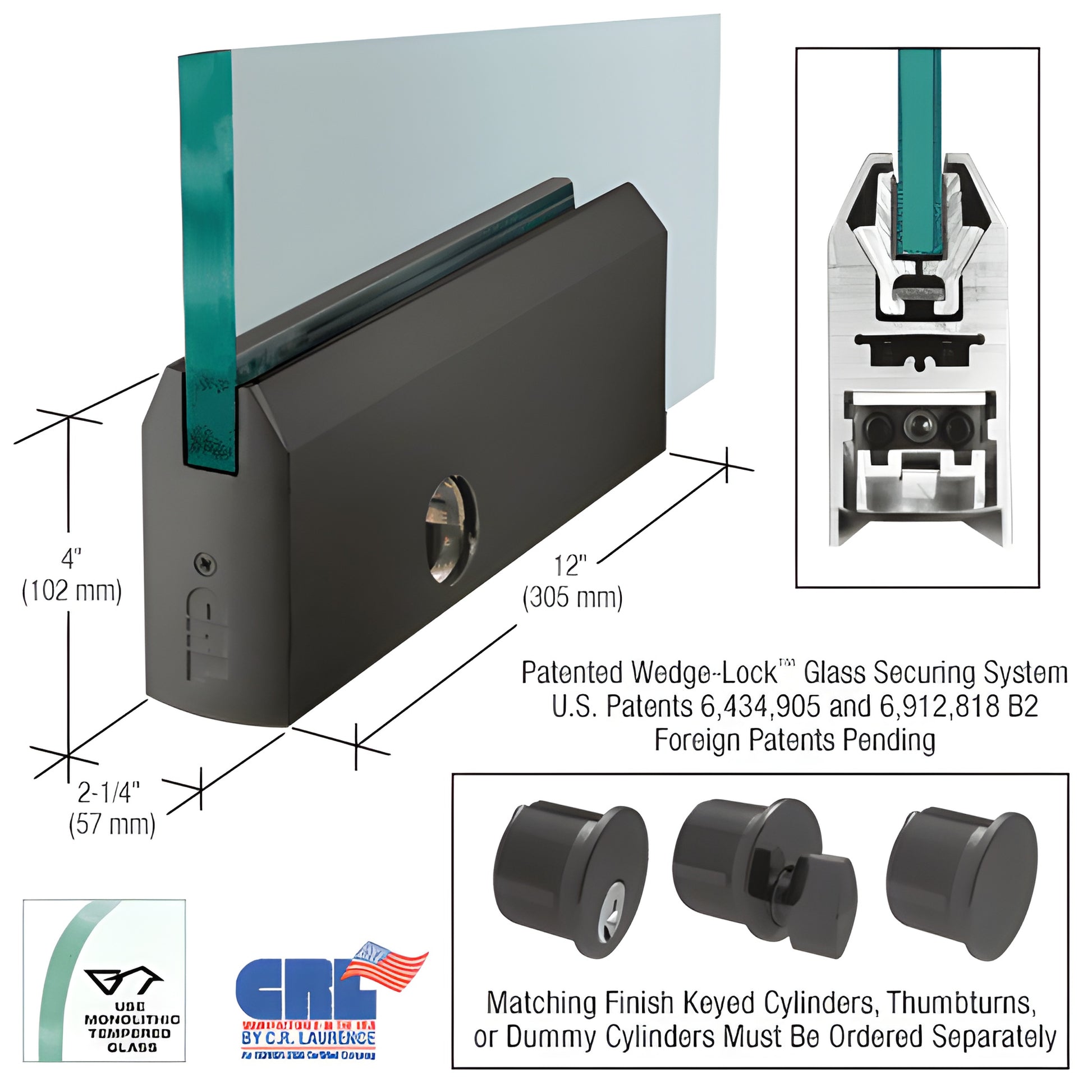

Black Bronze 4" Tapered DRS Door Rail w/ Lock - 12" for 5/8" Glass

• 12" (305 mm) Length for 5/8" (10 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System (see patents below)
• Models to Fit 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System, uses the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Designed for tempered glass doors and commercial glass entrances, the Wedge-Lock® system secures glass by applying downward pressure with two aluminum glass-retaining extrusions and a flat stainless steel bar tightened with socket head cap bolts. Angled extrusions engage an internal wedge groove, pulling the pads together and generating exceptional holding force — proven in our 9" (228.6 mm) Corner Rail and scaled across full-length rails.

NOTE: Actual Product Height: 4-1/16" (103 mm)

Key advantages of the Wedge-Lock® Door Rail System:

• Fast installation for commercial glass doors — experienced installers can prepare a door in under ten minutes
• Comes fabricated and ready-to-install with End Caps installed
• Adjustable Door Alignment Slide standard top and bottom — allows 1/8" (3.2 mm) in/out adjustment without removing the door
• Low-profile adjustable slide enables alternate pivot setback positions and accommodates vertically out-of-square openings
• Rigid single-component housing resists shifting and long-term misalignment
• Internal components remain installed during rail mounting; glass securing pads built for durability in extreme environments

Installation & adjustment overview:
After rail installation attach the door arm or pivot (not included) to the preassembled adjustable alignment slide. To fine-tune alignment, remove the End Cap to access three socket head cap bolts: the center bolt secures the slide; the outer bolts provide the 1/8" (3.2 mm) adjustment in or out.

Ordering & compatibility:

• All Door Rails include the standard Kwik-Adjust™ Pivot Alignment System; closer arms and floor/overhead pivots ordered separately
• Models with locks ship with the lock mechanism installed; keyed cylinders or thumbturns ordered separately
• End Caps included in stock rail lengths; specify full rail length (including End Caps) when ordering custom lengths
• All Wedge-Lock® Door Rails feature a built-in Jamb Alignment Block; arms and pivots must be ordered to meet
