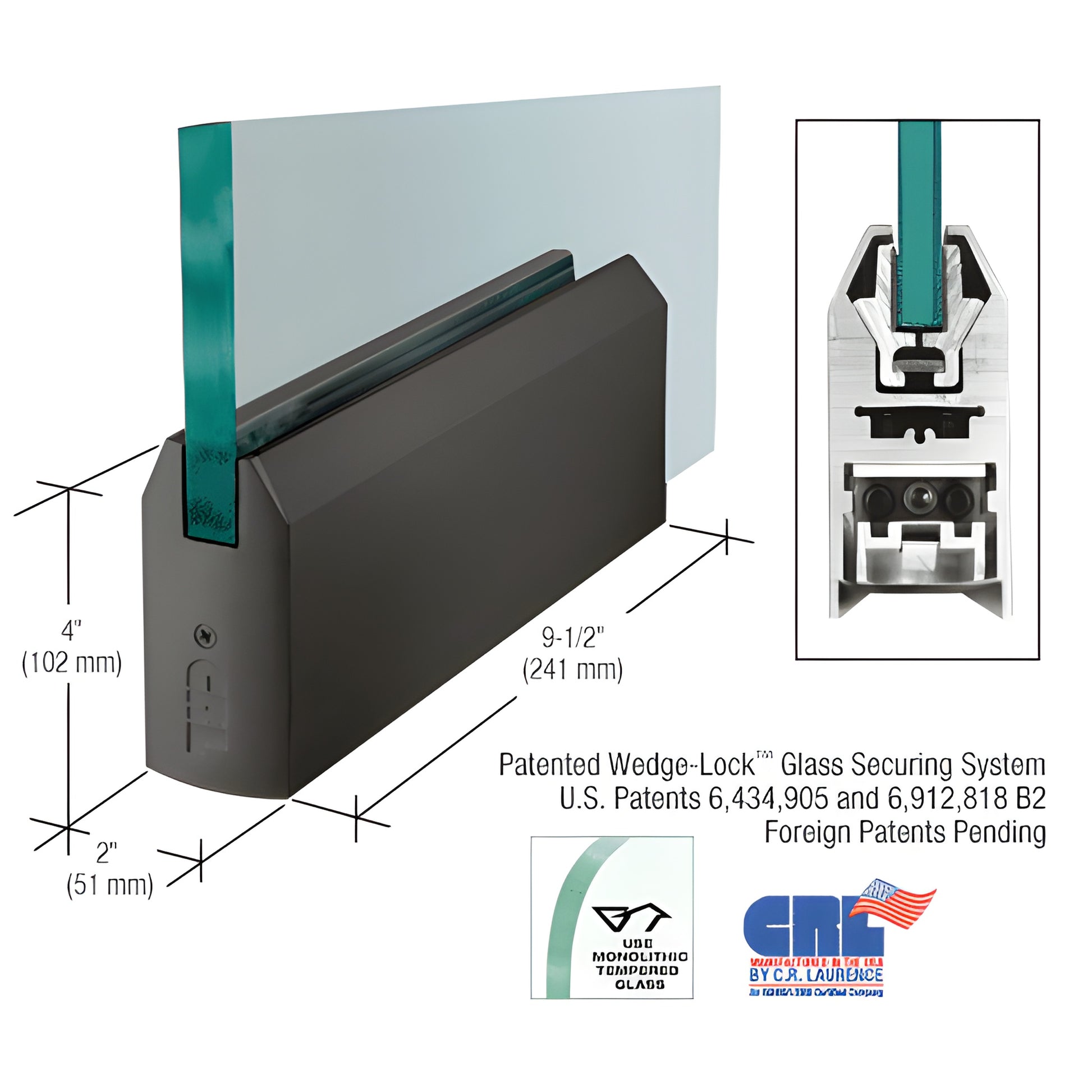

Replacement 4" Black Bronze Tapered DRS Glass Door Rail 9.5" No Lock

• 9-1/2" (241 mm) Patch for 3/8" Glass (10 mm)
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System (U.S., Canadian & European patents)
• Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

Our CRL Wedge-Lock® Door Rail System features the exclusive Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 & 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Engineered for monolithic tempered glass entrances, the patented wedge action pulls the glass-retaining aluminum extrusions together via a stainless steel bar and socket head cap bolts, producing exceptional clamping force — more than 900 lbs. in the 9" (228.6 mm) corner rail. This robust design delivers long-lasting glass retention for commercial glass doors.

NOTE: Actual Product Height: 4-1/16" (103 mm)

Key benefits and differentiators:

• Fast installation — experienced installers can prepare a door in less than 10 minutes
• Comes completely fabricated and ready-to-install with End Caps installed
• Adjustable Door Alignment System (standard top & bottom) allows ±1/8" (3.2 mm) adjustment without removing the door
• Low-profile adjustable slide enables pivot placement offset from standard 2-3/4" (69.8 mm) setback for out-of-square openings
• Rigid single-component housing resists shifting and stays in adjustment over time
• Internal components remain in place during installation; glass securing pads built for longevity in extreme environments

After installation, remove the end cap to access three socket head cap bolts: the center bolt secures the slide; the two outer bolts provide the 1/8" in/out adjustment. Arms and pivots are not included and must be ordered separately. All Wedge-Lock® Door Rails include a built-in Jamb Alignment Block.

Finish & ordering notes:

• Available in several standard architectural finishes; custom finishes and widths quoted on request
• Rail specifications, templates and hardware packages available from CRL Technical Sales — e-mail
• All rails supplied with Kwik-Adjust™ Pivot Alignment System; closer arms and floor/overhead pivots ordered separately
• Models with locks include
