4 in Black Bronze Anodized DRS Door Rail 9.5 in No-Lock for 1/2 in Glass

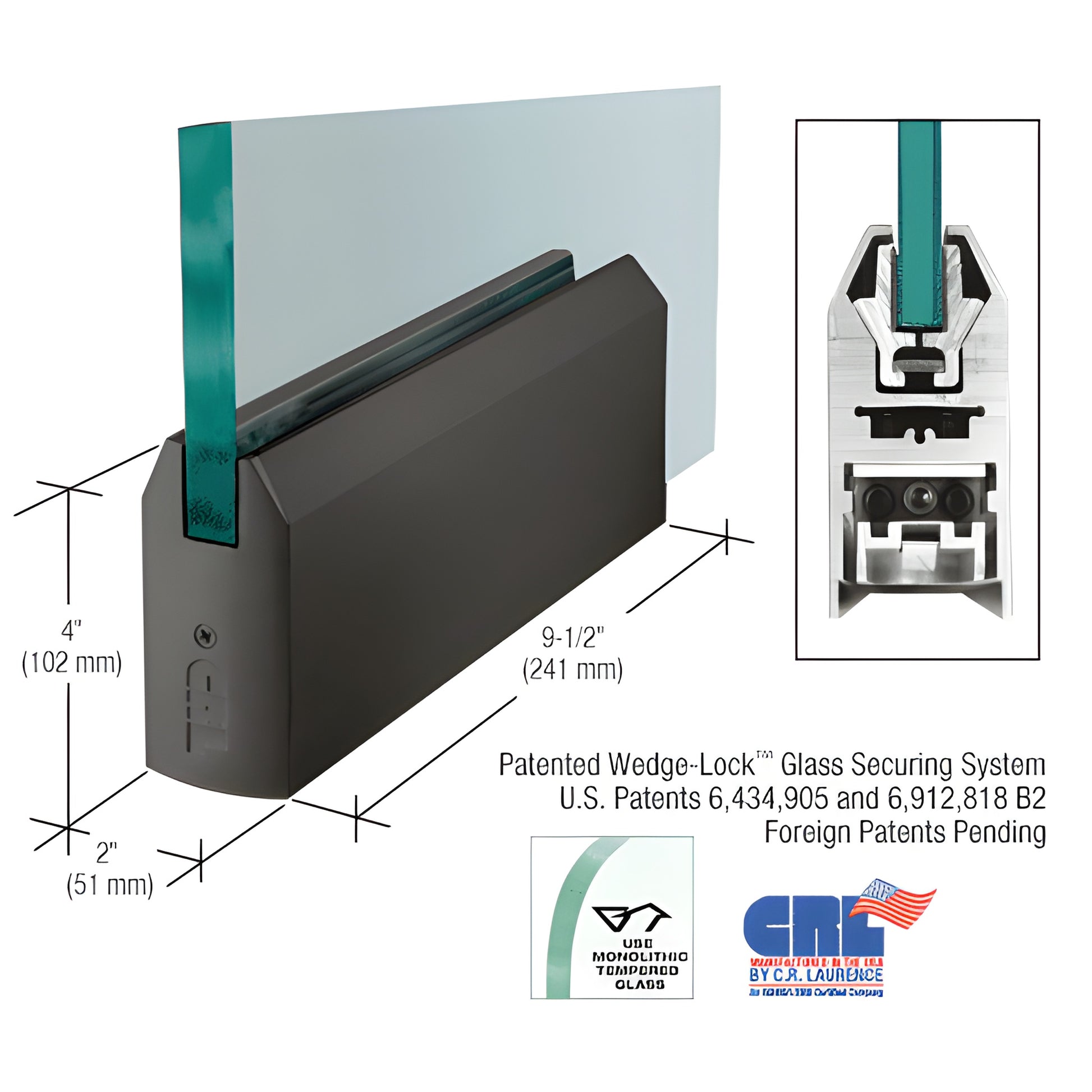

• 9-1/2" (241 mm) Patch for 1/2" Glass (12 mm)
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System, is a fast-installing, high-strength door rail engineered for commercial glass doors and storefront applications. The patented Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) secures the glass by pulling two aluminum retaining extrusions together with a flat stainless steel bar and socket head cap bolts. The angled wedge action compresses the extrusions and gasket to generate exceptional holding force (more than 900 lbs. in the 9" (228.6 mm) corner rail), delivering reliable performance for tempered glass doors and heavy-use entrances.

NOTE: Actual product height: 4-1/16" (103 mm).

Key features for installers and specifiers:

• Ready-to-install rails shipped fully fabricated with end caps installed — saves jobsite time
• Fast field prep — experienced installers can prepare a door in under 10 minutes
• Adjustable Door Alignment Slide (standard top and bottom) allows ±1/8" (3.2 mm) adjustment toward/away from jamb without removing the door
• Low-profile adjustable slide accommodates pivots offset from American Standard setback for out-of-square openings
• Rigid single-component housing resists shift and maintains alignment over time
• Internal components remain installed during rail fitting; no removal required
• Durable glass securing pads designed for longevity in extreme environments

Ordering and compatibility:

• Models accept 3/8" to 3/4" (10–19 mm) glass
• Comes standard with Jamb Alignment Block; arms and pivots (closer arms, floor/overhead pivots) must be ordered separately
• Models with locks ship with the lock mechanism installed — keyed cylinders or thumbturns ordered separately
• End caps included in stock lengths; specify full door rail length (including end caps) for custom lengths

CRL Wedge-Lock® Door Rails are available in several standard architectural finishes; custom finishes and widths can be quoted. Rail specifications, templates, and
