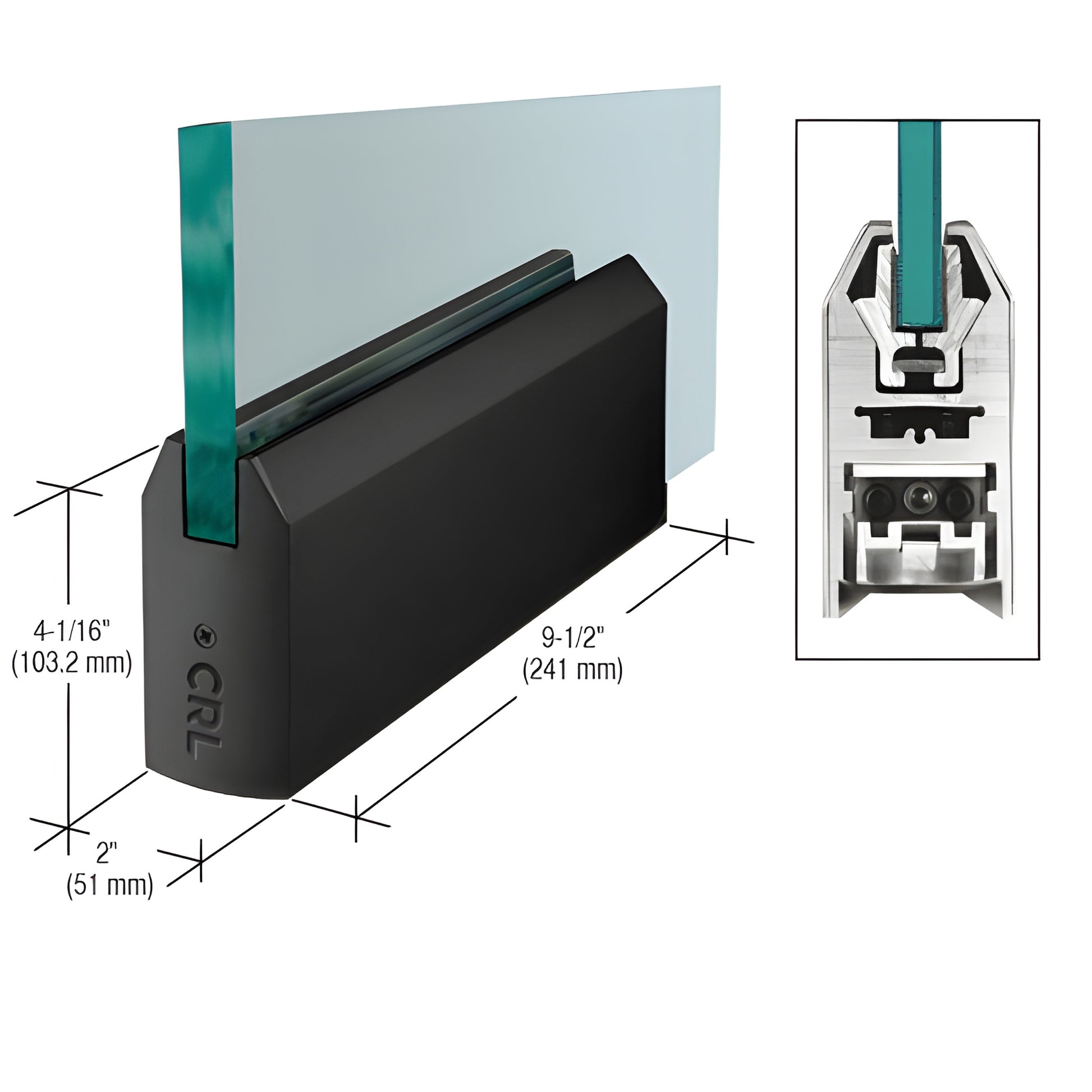

Matte Black 9.5in Tapered Glass Door Rail for 1/2in Glass - No Lock

• 9-1/2" (241 mm) Patch for 1/2" Glass (12 mm)
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

Our glass entrance solution, the CRL Wedge-Lock® Door Rail System, uses the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). The patented wedge action applies downward pressure via two aluminum glass-retaining extrusions and a flat stainless steel bar, creating exceptional holding force in the rail. This engineered system delivers secure attachment for glass door applications and is optimized for quick field installation.

NOTE: Actual Product Height: 4-1/16" (103 mm)

Key differentiators:

• Fast installation—experienced installers can prepare a door for installation in under ten minutes, reducing labor on glass door projects.
• Adjustable Door Alignment System—top and bottom rails include an adjustable slide that allows 1/8" (3.2 mm) in/out adjustment without removing the door.
• Robust, single-component housing—rigid construction resists shifting or loss of adjustment over time (not two-piece).
• Durable internal components and long-life glass securing pads designed for extreme environments.
• Available in multiple standard architectural finishes with custom finish and width quoting on request.

Installation and service notes: CRL Wedge-Lock® Door Rails ship fully fabricated with End Caps installed. After mounting the rail, attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail. To adjust the alignment after installation, remove the End Cap to access three socket head cap bolts—the center secures the slide; the outer bolts provide the 1/8" (3.2 mm) adjustment range. Low-profile slide design allows pivot positioning beyond standard setback to accommodate vertically out-of-square openings.

Ordering information:

• All Door Rails include the Kwik-Adjust™ Pivot Alignment System; closer arms and floor or overhead pivots are ordered separately.
• Models with locks include the lock mechanism; keyed cylinders or thumbturns are ordered separately in the matching finish.
• End Caps are included in stock lengths. Specify rail length (including End Caps) for custom lengths.
• Built-in Jamb Alignment Block is standard; arms and pivots must be
