Black Powder-Coated 4" Tapered Door Rail 9.5" for 1/2" Glass - No Lock

• 9-1/2" (241 mm) Patch for 1/2" Glass (12 mm)
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes — custom finishes available
• Available with and without locks
• Matching sidelite rails available

SKU: DR4TBL12P

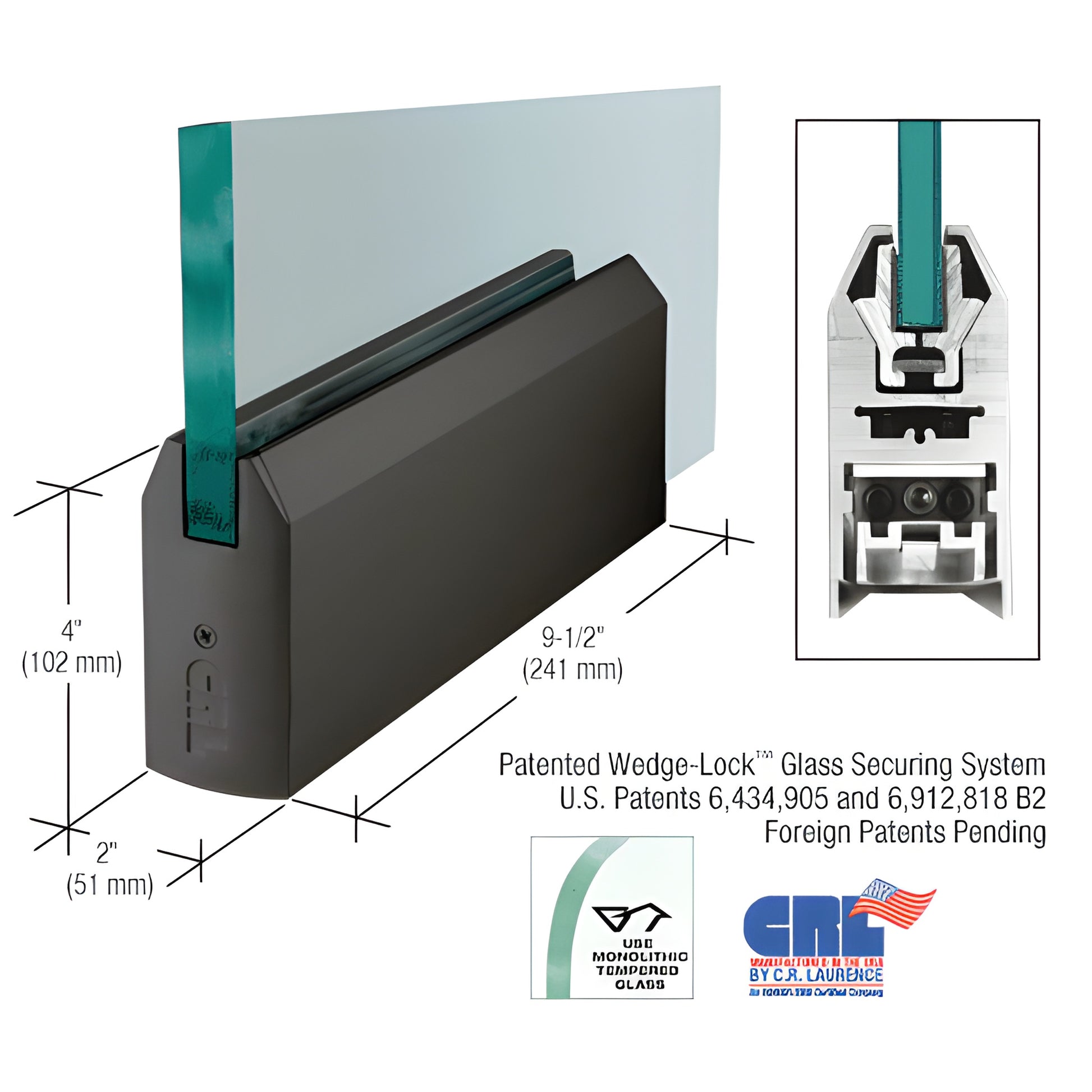

Our CRL Wedge-Lock® Door Rail System features the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2, Canadian Patent 2,419,706, European Patent EP 1 404 939 B1). This innovative door rail for glass doors secures the glass from the bottom using two glass-retaining aluminum extrusions and a flat stainless steel bar. As the bar is tightened with socket head cap bolts, the angled extrusions engage the door rail wedge, generating high clamping force (over 900 lbs. in the 9" (228.6 mm) corner rail).

NOTE: Actual product height: 4-1/16" (103 mm)

The Wedge-Lock® system delivers fast installation and reliable long-term performance for commercial glass doors. Rails ship fully fabricated and ready-to-install with end caps installed. After mounting the rail, attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail.

The standard adjustable door alignment slide provides +/-1/8" (3.2 mm) adjustment toward or away from the jamb on both top and bottom rails without removing the door. Remove the end cap to access three socket head cap bolts: the center bolt secures the slide; the outer bolts provide the 1/8" adjustment. Low-profile slides enable pivot placement other than the American Standard setback (2-3/4" / 69.8 mm), allowing fabrication for vertically out-of-square openings.

Other benefits:

• Accepts 3/8" to 3/4" (10–19 mm) glass
• Rigid single-component housing that resists shifting and stays in adjustment
• Internal components remain in place during installation
• Durable glass-securing pads designed for longevity in extreme environments
• All rails include a built-in jamb alignment block (arms and pivots ordered separately)

CRL Wedge-Lock® Door Rails are available in several standard finishes and can be quoted in custom finishes and widths. Rail specifications
