- 9-1/2" (241 mm) Patch for 1/2" Glass (12 mm)
- Use Monolithic Tempered Glass
- Patented Wedge-Lock® Glass Securing System (U.S., Canadian & European patents)
- Models to fit 3/8" to 3/4" (10 to 19 mm) glass
- Available in several stock architectural finishes — custom finishes available
- Available with and without locks
- Matching sidelite rails available
Our innovative glass entrance solution, the

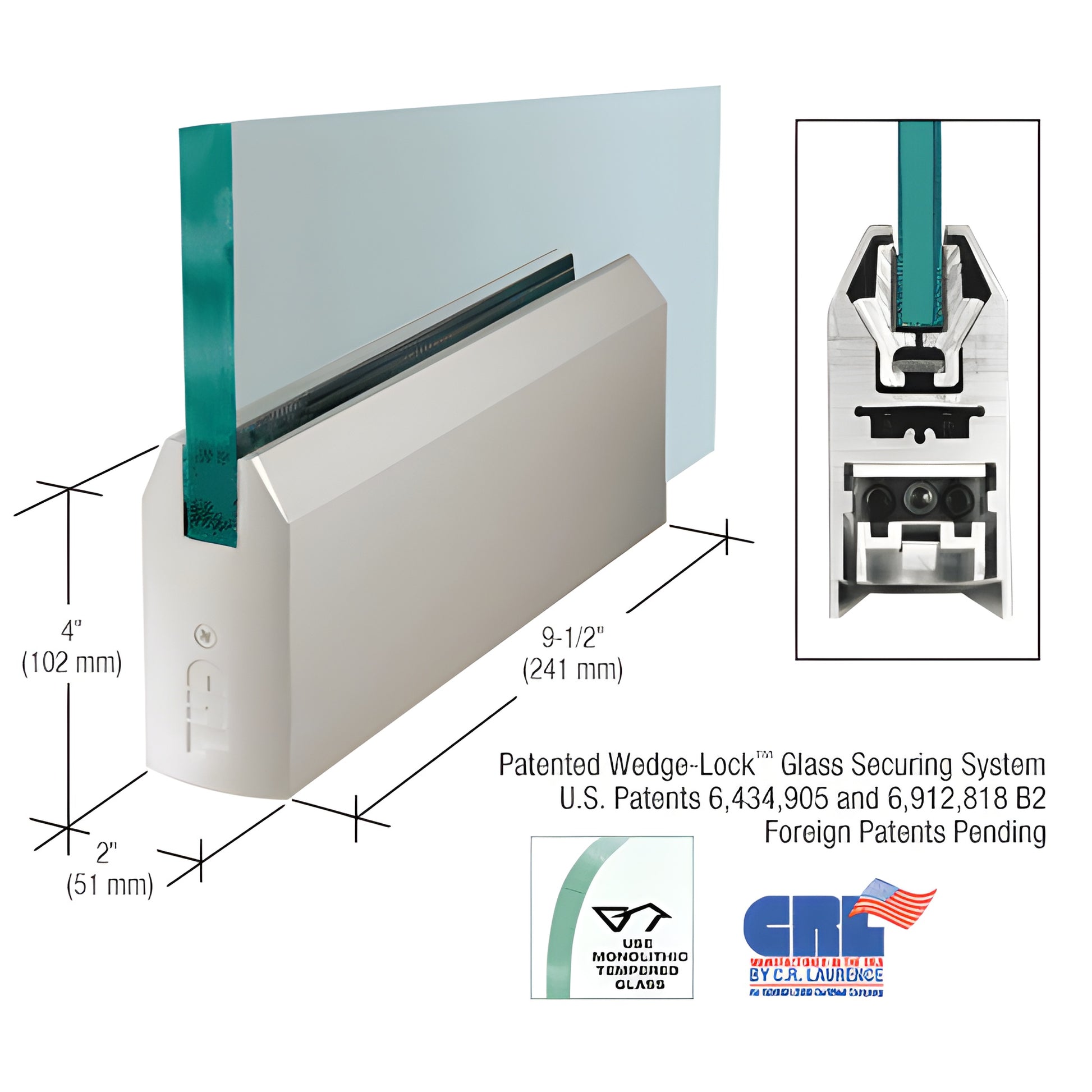

CRL Wedge-Lock® Door Rail System, features the exclusive Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). The patented wedge action applies pressure from the bottom of the door rail using two glass-retaining aluminum extrusions and a flat stainless steel bar. As the bar is tensioned with socket head cap bolts, the angled extrusions are drawn together in the rail groove, creating exceptional holding force (more than 900 lbs. in the 9" Corner Rail). This secure, mechanical clamp is ideal for frameless glass entrances and patch fittings for tempered glass doors.
NOTE: Actual product height: 4-1/16" (103 mm)
Key benefits and differentiators:
- Fast installation: experienced installers can prepare a door in under ten minutes — the fastest door rail installation time in the industry.
- Comes fully fabricated and ready-to-install with End Caps installed.
- Adjustable Door Alignment System: top and bottom rails include an adjustable slide that allows 1/8" (3.2 mm) in/out adjustment without removing the door.
- Low-profile adjustable slide accommodates pivots with slotted grooves and non-standard (vertically out-of-square) openings.
- Rigid, single-component housing resists shift and long-term misalignment (not two-piece construction).
- Internal components stay in place during installation — no disassembly required.
- Glass securing pads engineered for longevity in extreme environments.
- Models accept 3/8" to 3/4" (10 to 19 mm) glass; ideal for 1/2" tempered glass patch applications.
After installation, access three socket head cap bolts by removing the End Cap: the center bolt locks the adjustable slide; the two outer bolts provide the 1/8" (3.2 mm) adjustment. Built-in Jamb Alignment Block is standard; arms and pivots must be ordered separately to meet job requirements.
CRL Wedge-Lock® Door Rails are available in several standard finishes and can be quoted in custom finishes and widths. Rail specifications, templates and hardware packages are
