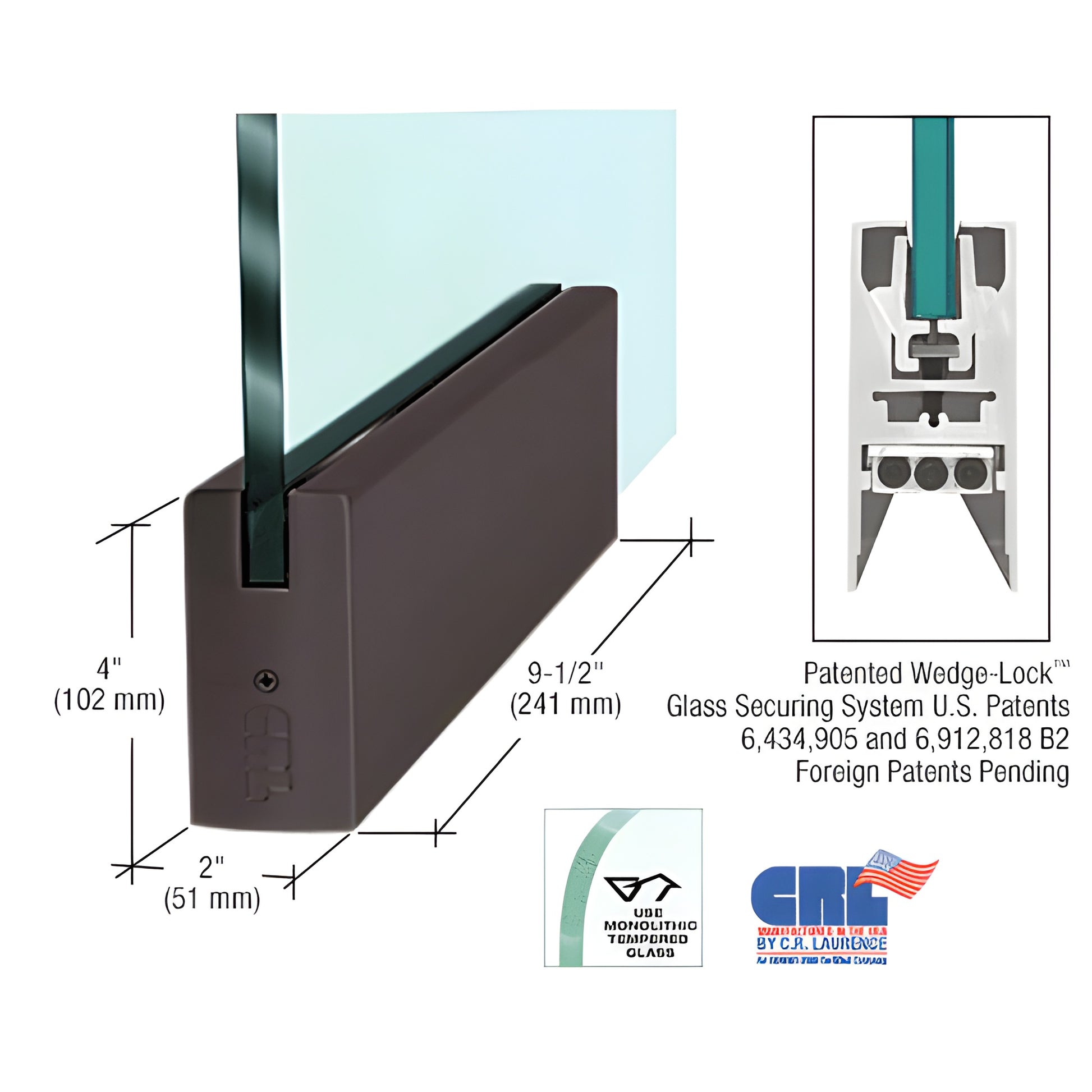

Black Bronze Anodized 4in Sq Door Rail 9.5in for 1/2in Glass - No Lock

• 9-1/2" (203 mm) length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes — custom finishes available
• Available with and without locks
• Matching sidelite rails available

SKU: DR4SDU12P

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System, provides a secure, fast-install rail for tempered glass doors. The patented Wedge-Lock® Securing System (U.S. Patents 6,434,905 & 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) applies pressure from the bottom of the door rail using two glass-retaining aluminum extrusions and a flat stainless steel bar. As the bar is tightened with socket head cap bolts, the angled extrusions wedge into the rail groove and compress the glass retaining extrusions together, creating extremely high holding force (over 900 lbs. in the 9" corner rail).

NOTE: Actual product height: 4-1/16" (103 mm)

The Wedge-Lock® system delivers more than strong glass retention — it offers the industry’s fastest installation time for a door rail. Experienced installers can prepare a door for installation in under ten minutes. Rails ship fully fabricated and ready-to-install with end caps installed. After installing the rail, attach the door arm or pivot (not included) to the pre-assembled adjustable door alignment slide. The adjustable slide allows 1/8" (3.2 mm) of inward/outward adjustment without removing the door; this feature is standard on both top and bottom rails.

Remove the end cap after installation to access three socket head cap bolts: the center bolt secures the adjustable slide and the two outer bolts provide the 1/8" adjustment. The low-profile slide permits pivot placement other than the American Standard setback (2-3/4" / 69.8 mm), enabling fabrication for vertically out-of-square openings.

Why choose Wedge-Lock® Door Rails (1/2" glass door rail, tempered glass door hardware)?

• Accepts 3/8" to 3/4" (10–19 mm) glass
• Rigid single-component housing — will not shift or fall out of adjustment
• Internal components remain installed during installation
• Durable glass securing pads designed for extreme environments
• Built-in jamb alignment block (arms and pivots ordered separately)

CRL Wedge-Lock® Door Rails are available in multiple
