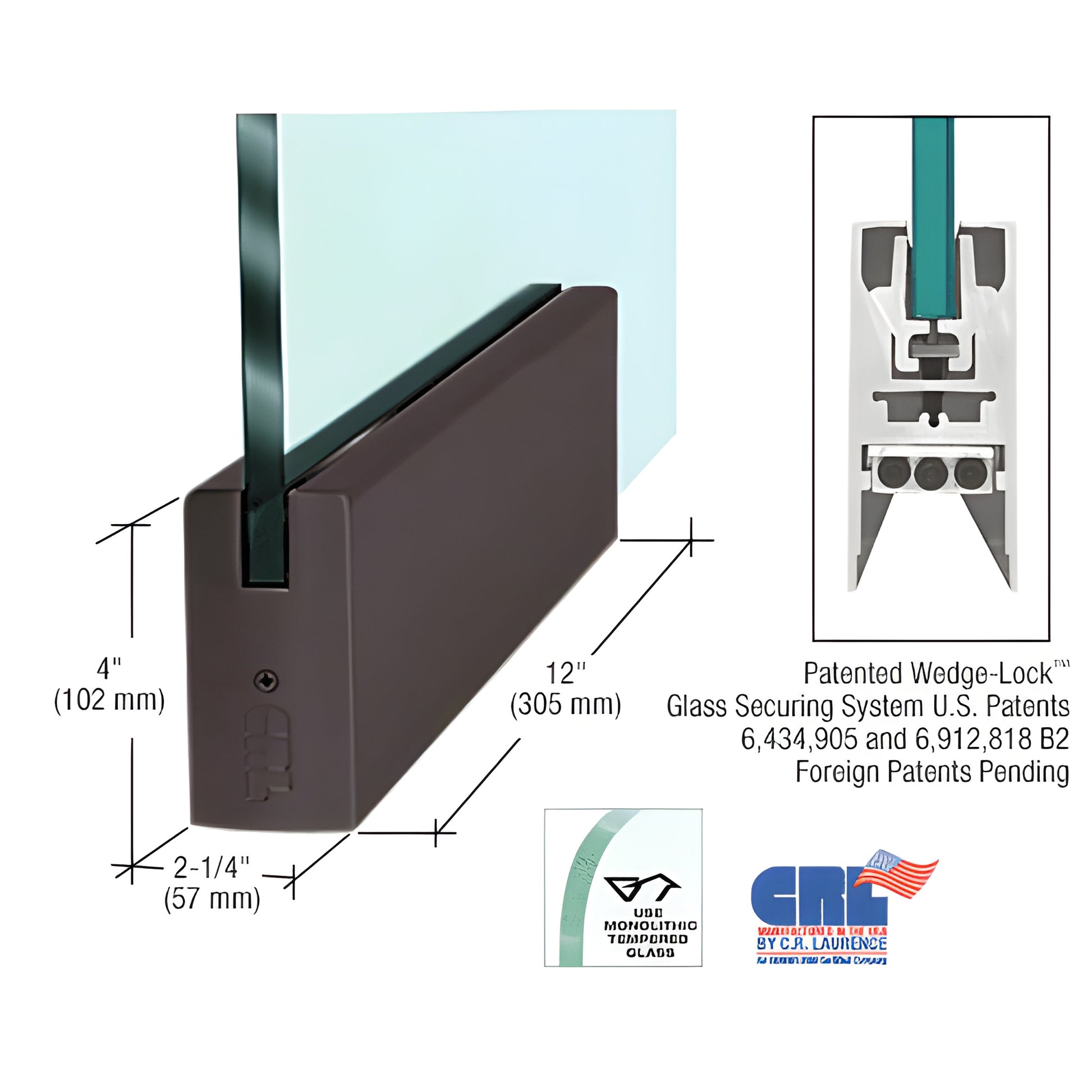

Black Bronze Anodized 4" Square DRS Rail for 5/8" Glass, 12" No Lock

• 12" (305 mm) Length for 5/8" (10 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR4SDU58P) features the exclusive Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Designed for monolithic tempered glass doors, this door rail system secures glass using two aluminum retaining extrusions and a flat stainless steel bar that, when tightened with socket head cap bolts, produces a powerful wedge action—creating tremendous clamping force for secure, long-lasting glass retention. The system delivers industry-leading holding force in corner and full-length door rails and is optimized for heavy-use commercial entrances and storefront doors.

NOTE: Actual Product Height: 4-1/16" (103 mm)

The Wedge-Lock® system provides:

• Fast installation—experienced installers can prepare a door in under ten minutes
• Pre-fabricated, ready-to-install door rails with End Caps installed
• Adjustable Door Alignment System (standard top and bottom) for ±1/8" (3.2 mm) adjustment without removing the door
• Low-profile adjustable slide allowing non-standard pivot setback positions for out-of-square openings
• Rigid single-piece housing that resists shift and maintains alignment over time
• Internal components remain in place during installation; no disassembly required
• Durable glass securing pads engineered for longevity in extreme environments

After installation, access three socket head cap bolts by removing the End Cap: the center bolt secures the slide; the two outer bolts adjust the slide in or out 1/8" (3.2 mm). Arms and pivots must be ordered separately to meet job requirements; the rails include a built-in Jamb Alignment Block.

CRL Wedge-Lock® Door Rails are offered in several standard architectural finishes and can be quoted for custom finishes and widths. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.

ORDERING INFORMATION:

• All Door Rails supplied with standard Kwik-Adjust™ Pivot Alignment System. Closer Arms and Floor or Overhead Piv
