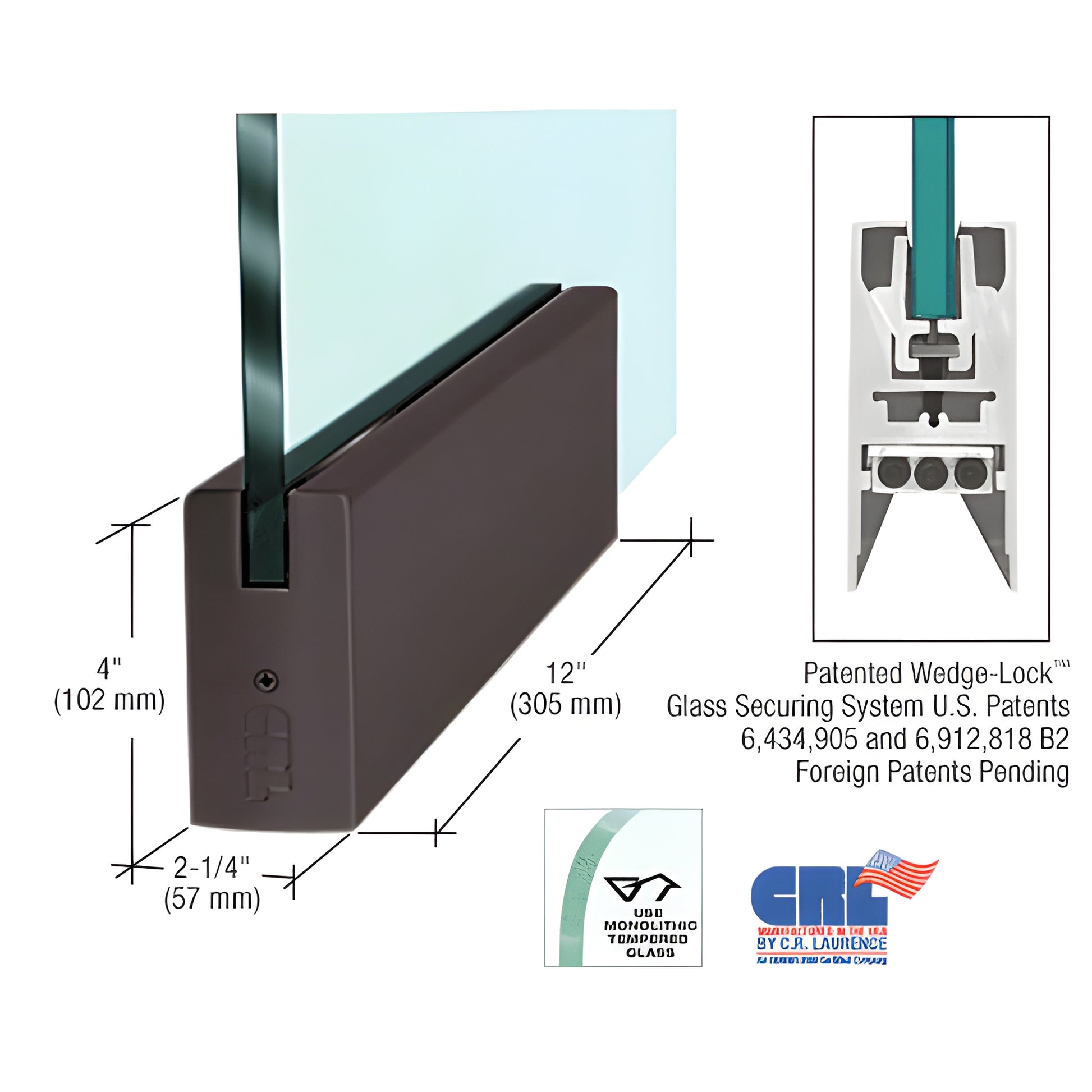

Black Bronze Glass Door Rail 4" Square DRS 12" - No Lock for 3/4" Glass

• 12" (305 mm) length for 3/4" (19 mm) tempered glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System (securely clamps glass from bottom)
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes; custom finishes available
• Available with and without locks
• Matching sidelite rails available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR4SDU34P), uses the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). This patented wedge-action system applies downward pressure from the bottom of the rail using two glass-retaining aluminum extrusions and a flat stainless steel bar tightened with socket head cap bolts, producing exceptionally high clamping force without two-piece housings or temporary disassembly during installation.

NOTE: Actual product height: 4-1/16" (103 mm)

Key benefits and features:

• Fast installation for commercial glass doors—experienced installers can prepare a door in under ten minutes
• Comes fully fabricated and ready-to-install with End Caps installed
• Adjustable Door Alignment System: built-in adjustable alignment slide (standard on top and bottom rails) allows ±1/8" (3.2 mm) adjustment toward or away from the jamb without removing the door
• Low-profile adjustable slide accommodates pivots with slotted grooves and non-standard setbacks for out-of-square openings
• Robust single-component housing resists shifting and maintains long-term alignment
• Glass securing pads designed for durability in extreme environments
• Models accept 3/8" to 3/4" (10–19 mm) glass; compatible with monolithic tempered glass

After installation, remove the End Cap to access three socket head cap bolts: the center bolt secures the alignment slide; the two outer bolts provide the ±1/8" adjustment. Arms and pivots are not included and must be ordered separately to meet job requirements.

NOTE: All Wedge-Lock® Door Rails include a built-in Jamb Alignment Block; arms, pivots, closer arms and floor or overhead pivots must be ordered separately.

Available finishes: several standard architectural finishes; custom finishes and custom widths quoted on request. Rail specifications, templates and hardware packages are available from CRL Technical Sales via e-mail.

ORDERING INFORMATION:

• All door rails ship with Kwik-Adjust™ Pivot Alignment System; closer arms and
