Brushed Stainless 4" DRS Square Door Rail 12" for 5/8" Glass - No Lock

• 12" (305 mm) length for 5/8" (10 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® Glass Securing System
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes; custom finishes available
• Available with and without locks
• Matching sidelite rails available

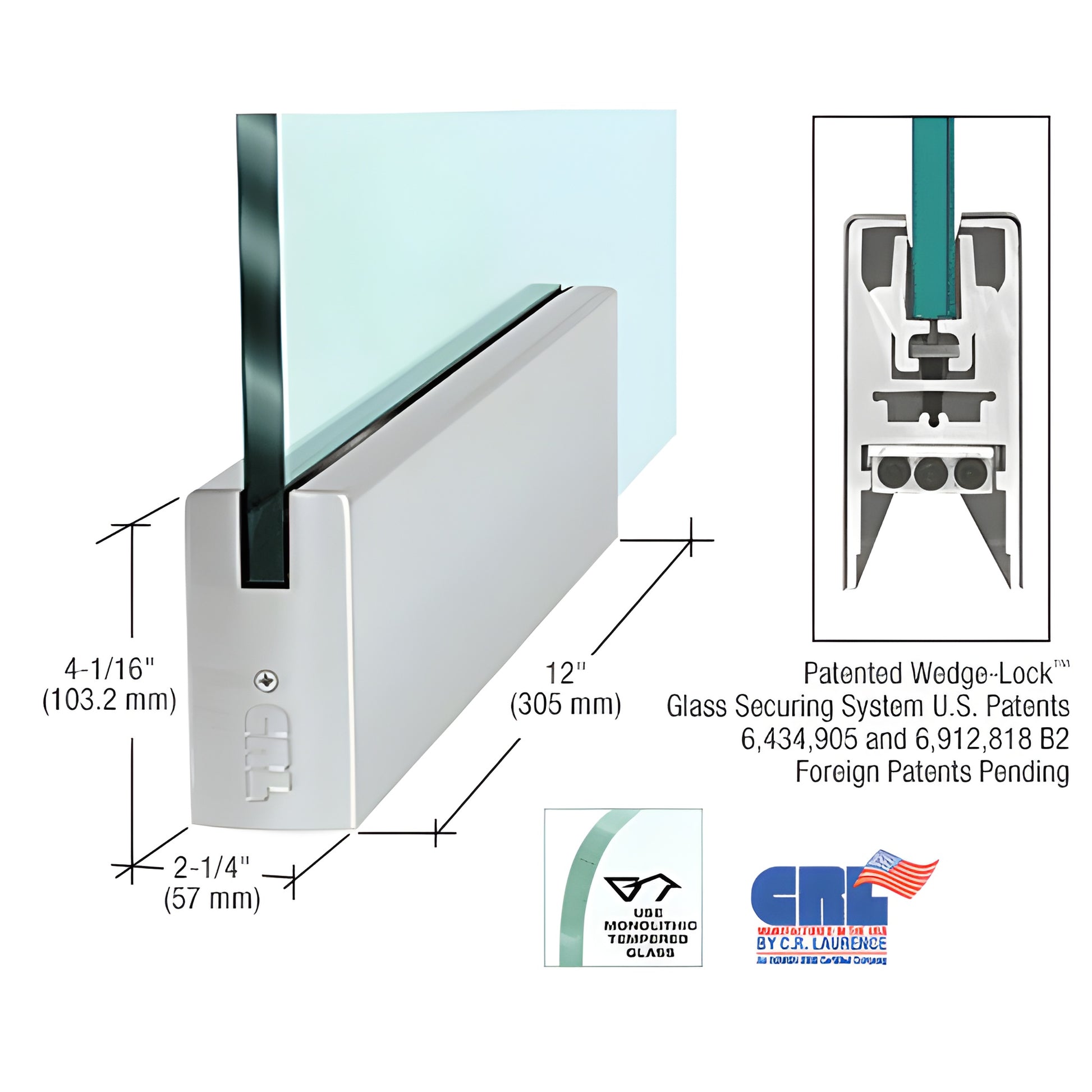

Our innovative glass entrance hardware, the CRL Wedge-Lock® Door Rail System, uses the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) to secure tempered glass in commercial and architectural doors. The system applies downward pressure through two glass-retaining aluminum extrusions and a flat stainless steel bar. As the stainless steel bar is tightened with socket head cap bolts, angled extrusions engage an angled groove in the door rail and wedge together, forming a high-force, durable glass attachment used in storefronts, frameless glass doors, and heavy-duty entrance systems.

NOTE: Actual product height: 4-1/16" (103 mm)

The Wedge-Lock® Glass Securing System delivers a secure connection plus the fastest installation time among door rails for tempered glass. Experienced installers can prepare a door in under ten minutes. CRL Wedge-Lock® Door Rails ship fully fabricated and ready-to-install with end caps installed. After mounting the rail, attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail.

The built-in Adjustable Door Alignment System allows up to 1/8" (3.2 mm) of in/out adjustment without removing the door—standard on both top and bottom rails. To Adjust: remove the end cap to access three socket head cap bolts; the center bolt secures the slide, and the two outer bolts provide the 1/8" adjustment. The low-profile slide lets pivots with slotted grooves be positioned off the American Standard setback for vertically out-of-square openings.

Key benefits and differentiators:

• Designed for monolithic tempered glass door installations and frameless glass storefront doors
• Rigid single-component housing that resists shifting or loss of adjustment over time
• Internal components remain assembled for faster install—no disassembly required before mounting
• Durable glass securing pads engineered for longevity in extreme environments
• Available with factory-installed lock mechanisms; keyed cylinders or thumbturns ordered separately
• Built-in jamb alignment block; arms and pivots must be ordered to match job requirements

Finishes, templates & hardware: Standard finishes available; custom finishes and widths quoted on request. Rail specifications, templates and hardware packages are available
