4" Square Black Powder-Coated Door Rail 9.5" for 1/2" Glass - No Lock

• 9-1/2" (203 mm) length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (U.S. Patents 6,434,905; 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1)
• Models to fit from 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes; custom finishes available
• Available with and without locks
• Matching sidelite rails available

SKU: DR4SBL12P

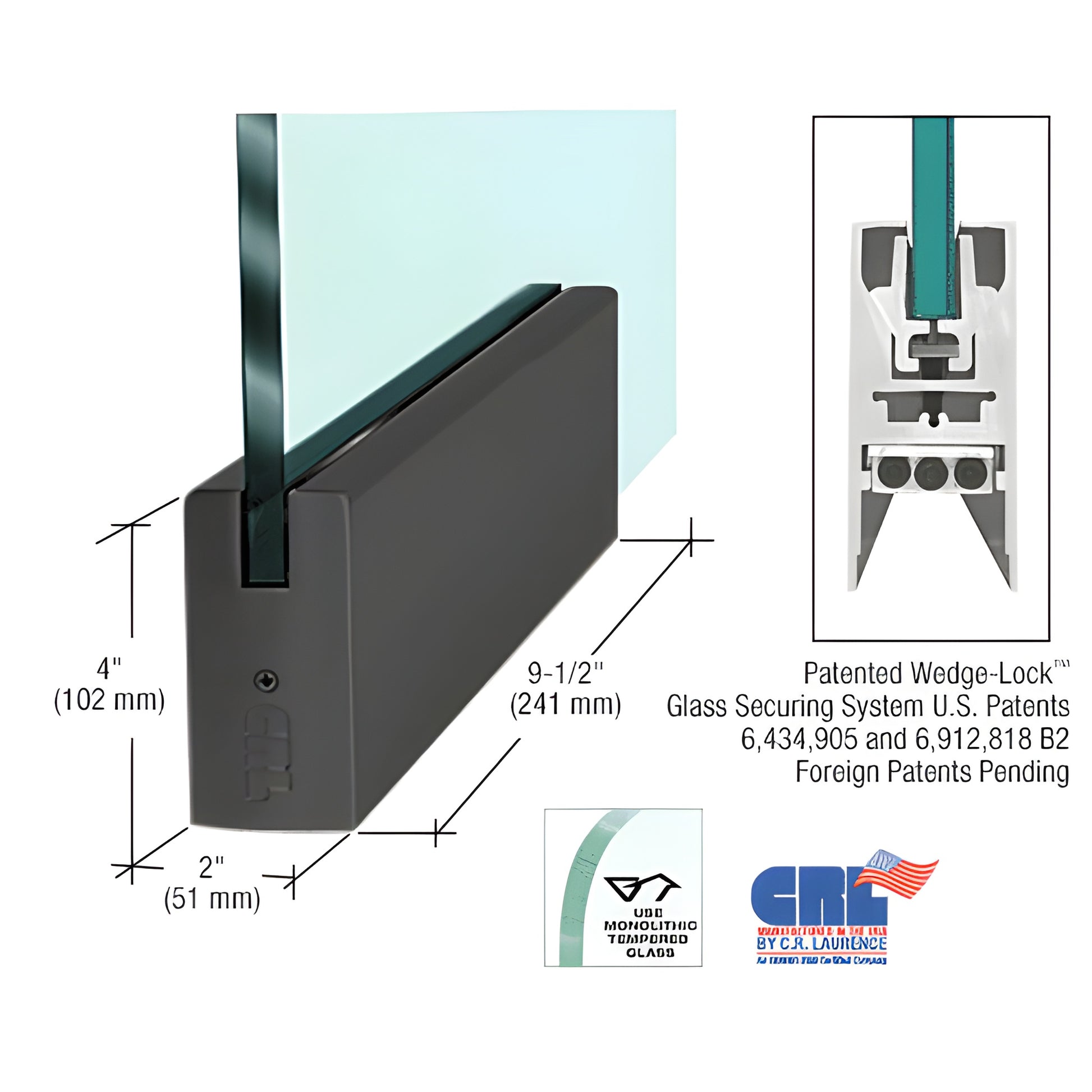

The CRL Wedge-Lock® Door Rail System is an engineered glass entrance solution that secures tempered glass with a patented bottom-wedge action. Two glass-retaining aluminum extrusions are compressed by a stainless steel bar tightened with socket head cap bolts; angled extrusions engage an angled rail groove to generate exceptional clamping force (over 900 lbs. in the 9" corner rail). This makes the system ideal as a heavy-duty Wedge-Lock door rail for 1/2" glass in commercial glass entry applications.

Key features and differentiators

• Fast installation: experienced installers can prepare a door in under ten minutes — one of the quickest tempered glass door rail installs available.
• Adjustable Door Alignment System: built-in adjustable slide provides ±1/8" (3 mm) adjustment toward/away from the jamb on both top and bottom rails without removing the door.
• Rigid single-component housing: resists shifting and maintains alignment over time (not two-piece construction).
• Internal components stay in place during installation — no disassembly required.
• Durable glass securing pads designed for longevity in extreme environments.
• End caps installed; rails ship fabricated and ready-to-install.

Installation & adjustment

After installation, remove the end cap to access three socket head cap bolts: the center bolt secures the adjustable slide; the two outer bolts provide 1/8" (3.2 mm) in/out adjustment. Low-profile slide allows pivot placement other than the American Standard setback (2-3/4" / 69.8 mm) to accommodate out-of-square openings. Note: arms and pivots must be ordered separately.

Notes

• Actual product height: 4-1/16" (103 mm)
• All Wedge-Lock® Door Rails include the built-in jamb alignment block; arms, pivots, keyed cylinders, thumbturns, and closer arms must be ordered separately.
• Rail specifications, templates, and hardware packages available from CRL Technical Sales — contact via e-mail.
