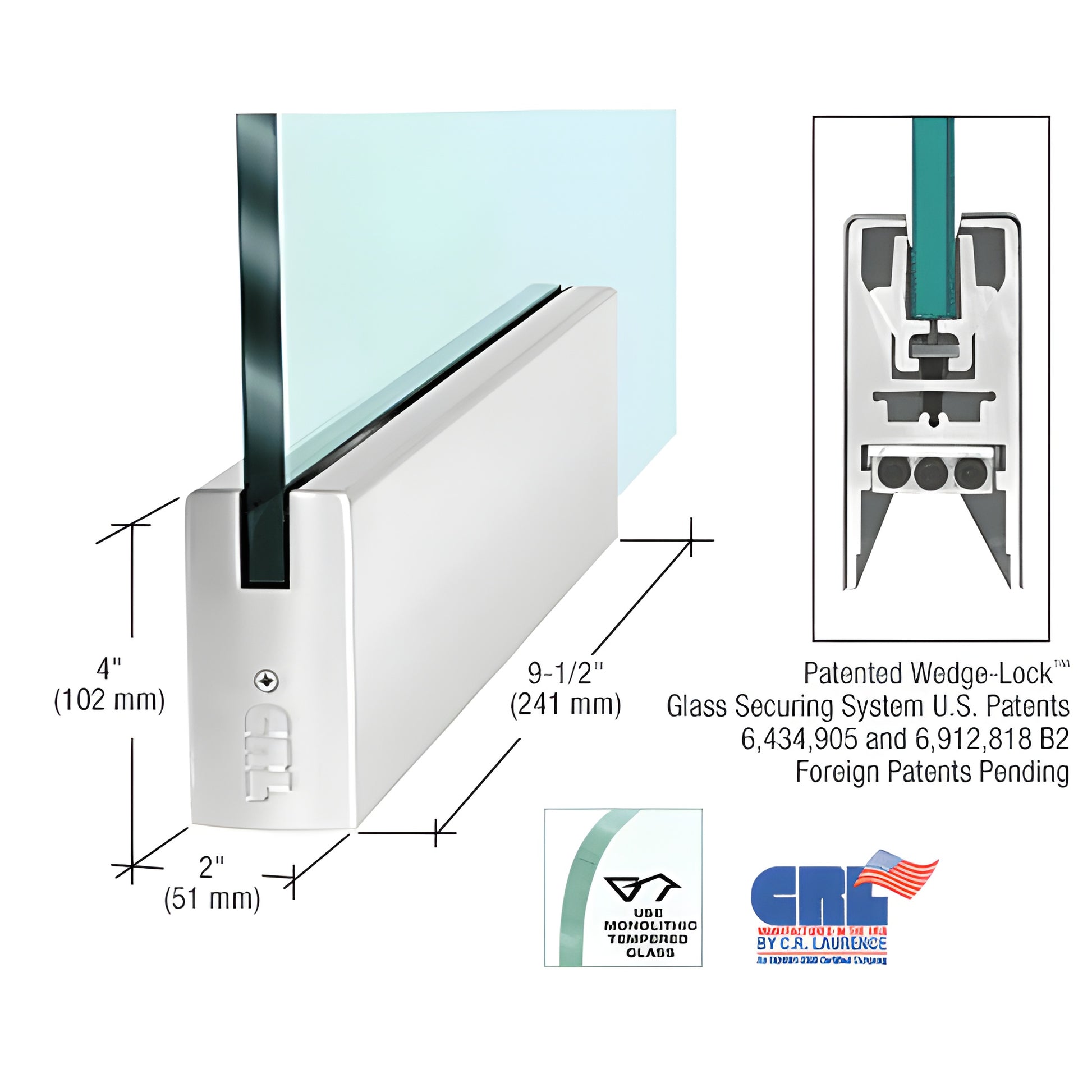

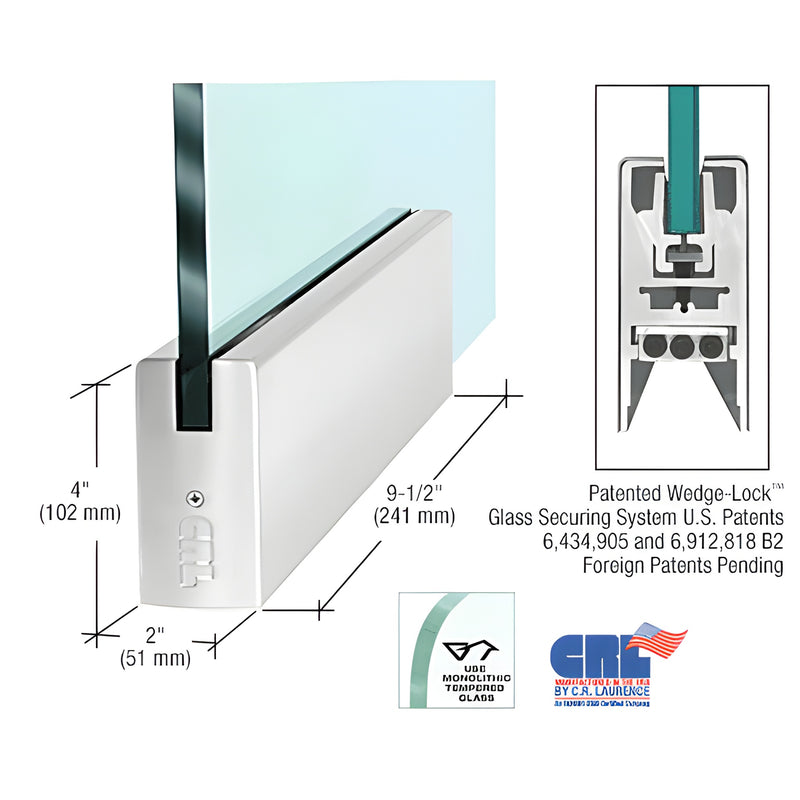

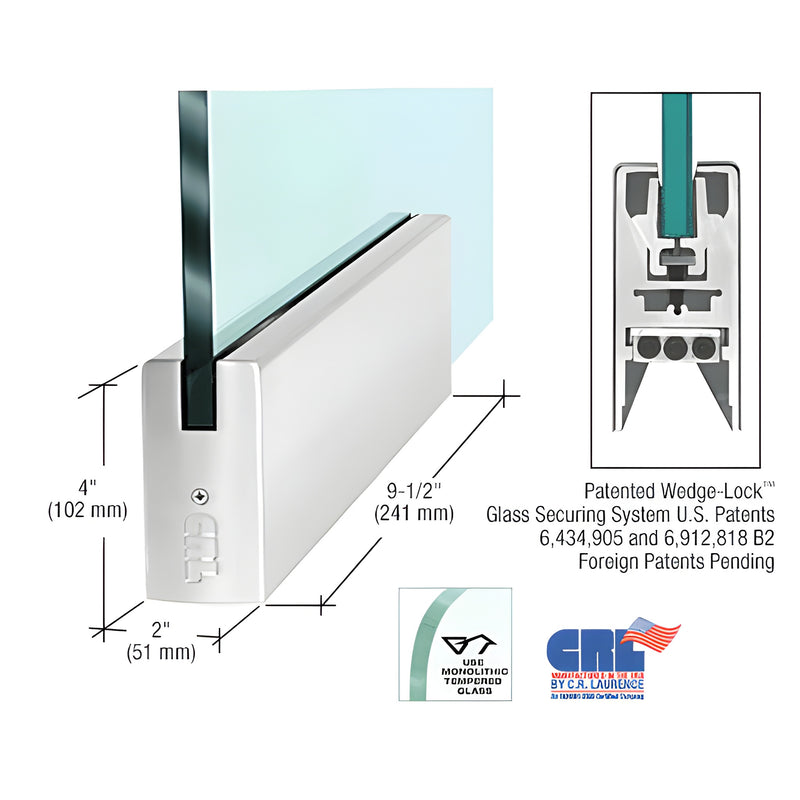

Polished Stainless 4in Sq DRS Door Rail 9.5in for 1/2in Glass No Lock

• 9-1/2" (203 mm) length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (U.S., Canadian & European patents)
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes; custom finishes available
• Available with and without locks
• Matching sidelite rails available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System, features the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Designed for monolithic tempered glass doors, the system secures glass by applying downward pressure via two retaining aluminum extrusions and a flat stainless steel bar, creating exceptional clamping force for durable, long-lasting attachment. This durable method generates more than 900 lbs. of force in the 9" (228.6 mm) corner rail and scales across full-length rails for robust performance in commercial storefronts and glass entrance systems.

NOTE: Actual product height: 4-1/16" (103 mm)

Key advantages:

• Fast installation — experienced installers can prepare a door in under ten minutes
• Comes completely fabricated and ready to install with end caps installed
• Adjustable Door Alignment System standard on top and bottom rails — +/- 1/8" (3.2 mm) without removing the door
• Rigid single-component housing resists shift and long-term misalignment
• Internal components do not require removal prior to installation
• Glass securing pads designed for longevity in extreme environments

After installation, access three socket head cap bolts behind the end cap: the center bolt secures the adjustable slide and the outer bolts adjust the slide +/- 1/8" (3.2 mm). The low-profile adjustable slide allows pivots with slotted grooves to be positioned for nonstandard setbacks and vertically out-of-square openings.

NOTE: All Wedge-Lock® Door Rails include a built-in jamb alignment block. Arms, pivots, closer arms, and floor or overhead pivots must be ordered separately to meet job requirements. Models with locks are supplied with the lock mechanism installed; keyed cylinders or thumbturns are ordered separately. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.

ORDERING INFORMATION:
• Door rails
