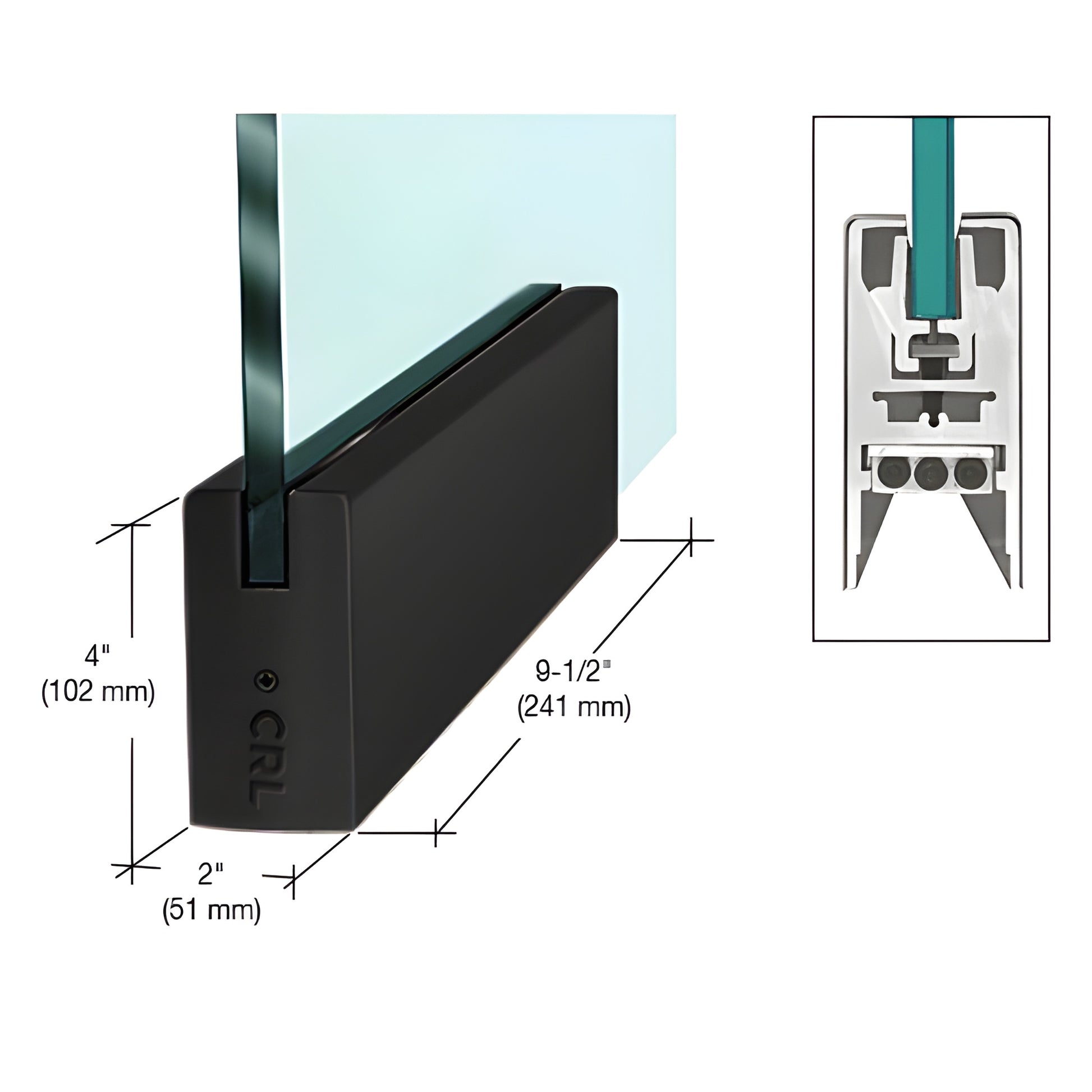

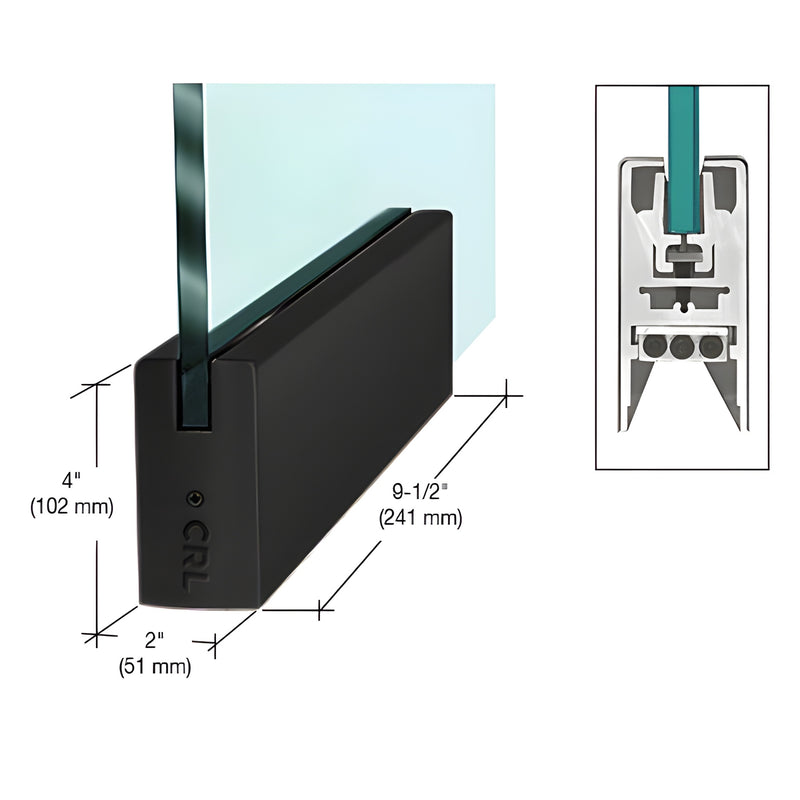

Matte Black DRS 4in sq Shower Door Rail 9.5in for 1/2in Glass - No Lock

• 9-1/2" (203 mm) Length for 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

SKU: DR4SMBL12P

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System, features the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Designed for commercial and architectural glass doors, this door rail secures 1/2" (12 mm) monolithic tempered glass by applying bottom pressure through two glass-retaining aluminum extrusions and a flat stainless steel bar. As the bar is tightened with socket head cap bolts the angled wedge action pulls the extrusions together—producing very high clamping force (more than 900 lbs. in the 9" corner rail).

Key Benefits & Differentiators

• Fast installation—experienced installers can prepare a door in under ten minutes; rails ship fully fabricated with end caps installed.
• Built-in Adjustable Door Alignment System—adjust door 1/8" (3.2 mm) toward or away from the jamb without removing the door (standard on top and bottom rails).
• Rigid single-component housing that resists shifting or falling out of adjustment over time.
• Internal components do not require removal for installation; glass securing pads engineered for longevity in extreme environments.
• Built-in Jamb Alignment Block (arms and pivots ordered separately to suit job requirements).

Product Details

Actual Product Height: 4-1/16" (103 mm). CRL Wedge-Lock® Door Rails come ready-to-install; after rail installation attach the door arm or pivot (not included) to the assembled adjustable door alignment slide. To fine-tune alignment after installation, remove the end cap to access three socket head cap bolts—the center bolt secures the slide; outer bolts adjust 1/8" (3.2 mm).

Ordering Information

• All Door Rails supplied with standard Kwik-Adjust™ Pivot Alignment System. Closer arms and floor or overhead pivots must be ordered separately.
• Models with locks include the lock mechanism; keyed cylinders or thumbturns ordered separately.
• End caps included in stock door rail lengths. Specify door rail length (including end caps) for custom length rails.

<
