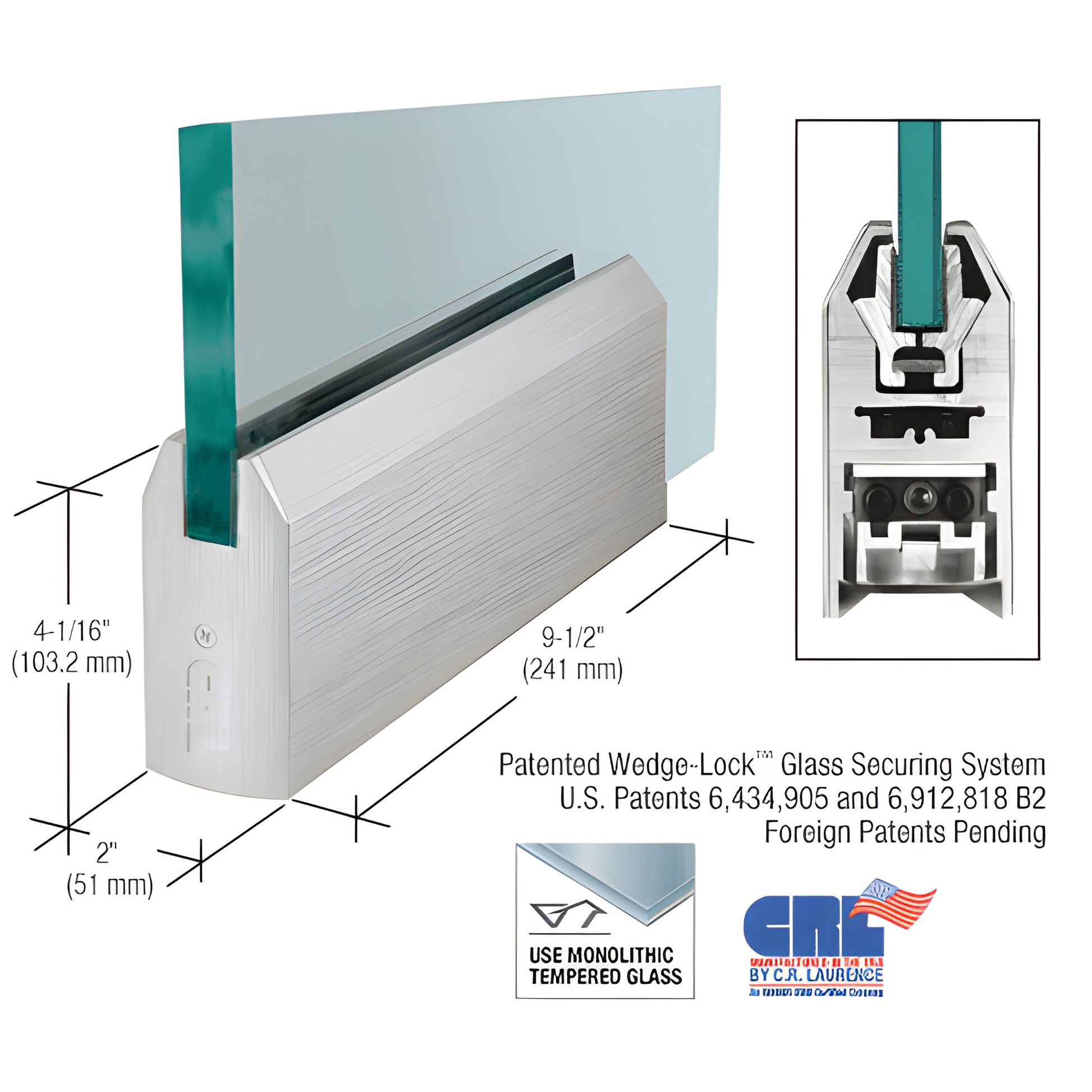

Brushed Stainless 4in Tapered DRS Door Rail 9.5in 3/8in Glass No-Lock

• 9-1/2" (241 mm) patch for 3/8" (10 mm) monolithic tempered glass
• Patented Wedge-Lock® glass securing system
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes; custom finishes available
• Available with or without locks
• Matching sidelite rails available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR4TBS38P) features the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Designed for reliable glass door installations, the system secures the glass by applying downward pressure through two glass-retaining aluminum extrusions and a flat stainless steel bar. As the bar is tightened with socket head cap bolts, the angled extrusions wedge together in the rail groove and, combined with a specially designed door-retaining gasket, generate exceptional holding force (over 900 lbs. in the 9" corner rail). This robust action scales across full-length rails for strong, durable attachment in heavy-use glass doors.

NOTE: Actual product height: 4-1/16" (103 mm)

The Wedge-Lock® system delivers secure attachment plus one of the fastest installation times among door rail systems—experienced installers can prepare a door for installation in under ten minutes. CRL Wedge-Lock® door rails ship fully fabricated and ready-to-install with end caps pre-installed. After rail installation, simply attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail. The adjustable alignment system provides ±1/8" (3.2 mm) adjustment toward or away from the jamb without removing the door; this feature is standard on both top and bottom rails.

To adjust the door after installation, remove the end cap to access three socket head cap bolts: the center secures the adjustable slide; the two outer bolts allow the ±1/8" adjustment. The low-profile slide and slotted pivot grooves permit non-standard setback positions and fabrication for vertically out-of-square openings.

Reasons to choose Wedge-Lock® door rails:

• Accepts 3/8" to 3/4" (10 to 19 mm) glass
• Rigid single-component housing that resists shifting and maintains adjustment over time
• Internal components remain in place during installation—no removal required
• Durable glass-securing pads designed for longevity in extreme environments

NOTE: All Wedge-Lock® door rails include the built-in jamb alignment block. Arms and pivots must be ordered separately to meet job requirements.

CRL Wedge-Lock® door rails are available in several standard finishes and can be quoted in custom
