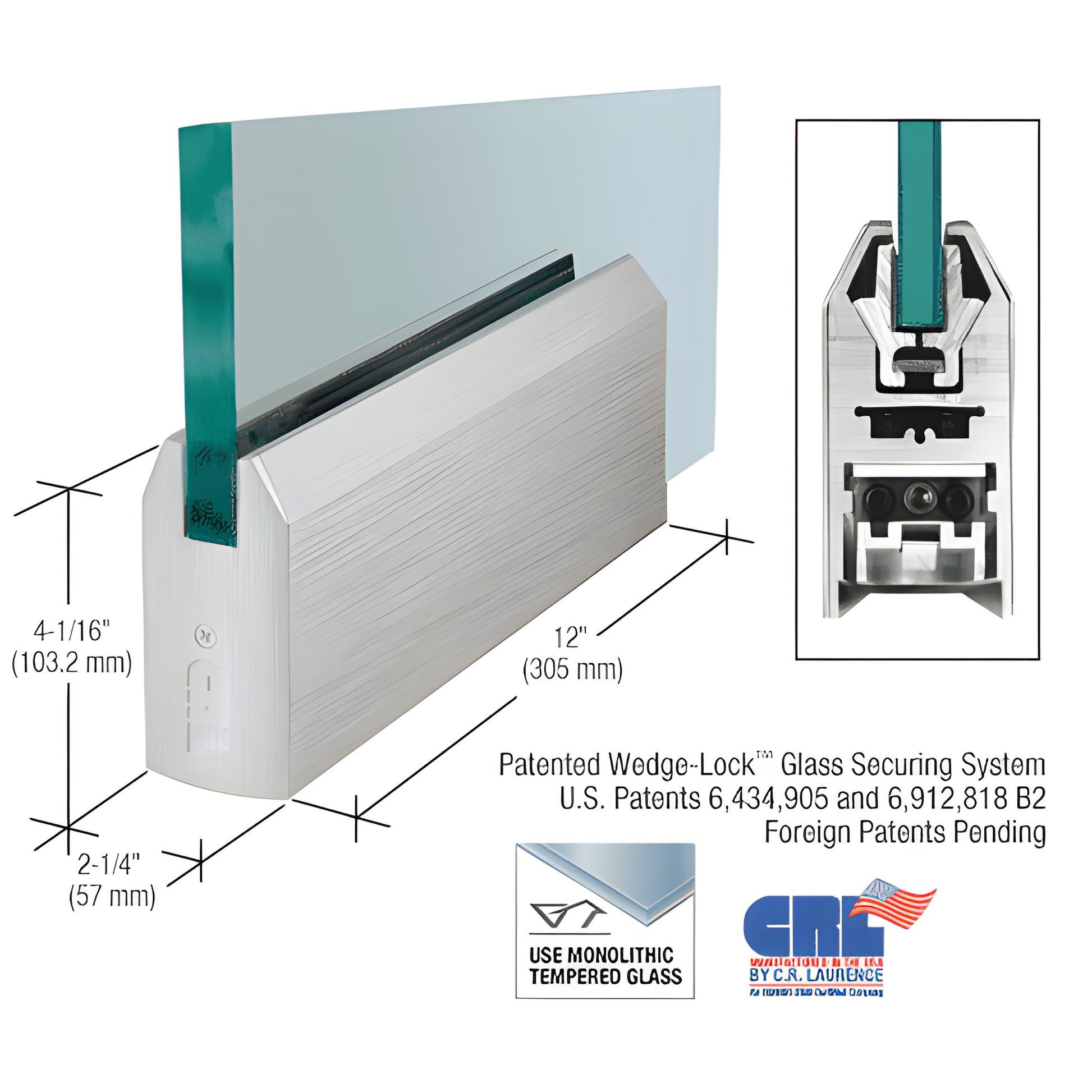

Brushed Stainless 4" Tapered DRS Glass Door Rail for 5/8" Glass - 12"

• 12" (305 mm) length for 5/8" (10 mm) tempered glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System (high-pressure wedge action)
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes — custom finishes available
• Available with and without locks
• Matching sidelite rails available

Our innovative glass entrance product, the CRL Wedge-Lock® Door Rail System (SKU: DR4TBS58P) features the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent No. EP 1 404 939 B1). This wedge-style glass securing system applies downward pressure via two glass-retaining aluminum extrusions and a flat stainless steel bar. As the bar is tightened with socket head cap bolts, angled extrusions seat into the door rail groove and pull together, producing very high clamping force (over 900 lbs. in a 9" corner rail). The same patented action scales across full-length rails for durable, secure attachment in tempered glass doors.

NOTE: Actual product height: 4-1/16" (103 mm).

The Wedge-Lock® Glass Securing System delivers fast installation and reliable long-term performance for glass entrance systems and frameless glass doors. Experienced installers can prepare a door for installation in under ten minutes. CRL rails ship fully fabricated and ready-to-install with end caps installed. After mounting the rail, attach the door arm or pivot (not included) to the adjustable door alignment slide pre-assembled in the rail. The adjustable alignment system allows ±1/8" (3.2 mm) adjustment toward or away from the jamb without removing the door — standard on both top and bottom rails.

To adjust after installation, remove the end cap to access three socket head cap bolts: the center bolt secures the slide; the outer bolts provide the 1/8" (3.2 mm) in/out adjustment. The low-profile slide and slotted pivot grooves allow fabrication for non-standard setbacks and vertically out-of-square openings.

Other reasons to choose Wedge-Lock® Door Rails: models accept 3/8" to 3/4" (10 to 19 mm) glass; a rigid single-component housing that resists shifting; internal components remain installed during mounting; and glass securing pads designed for longevity in extreme environments.

NOTE: All Wedge-Lock® Door Rails include the built-in jamb alignment block. Arms, pivots, closer arms and floor or overhead pivots must be ordered separately to meet job requirements.
