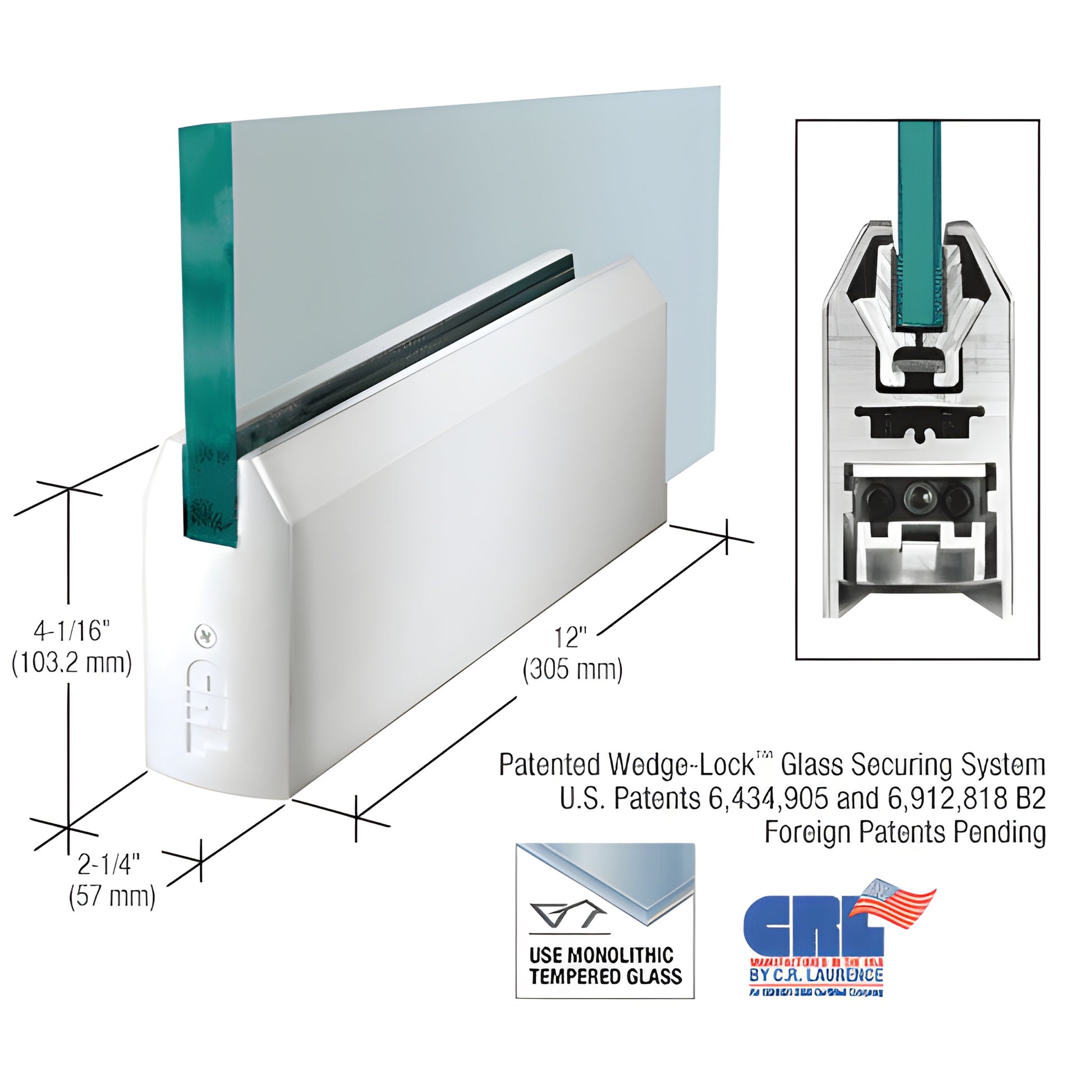

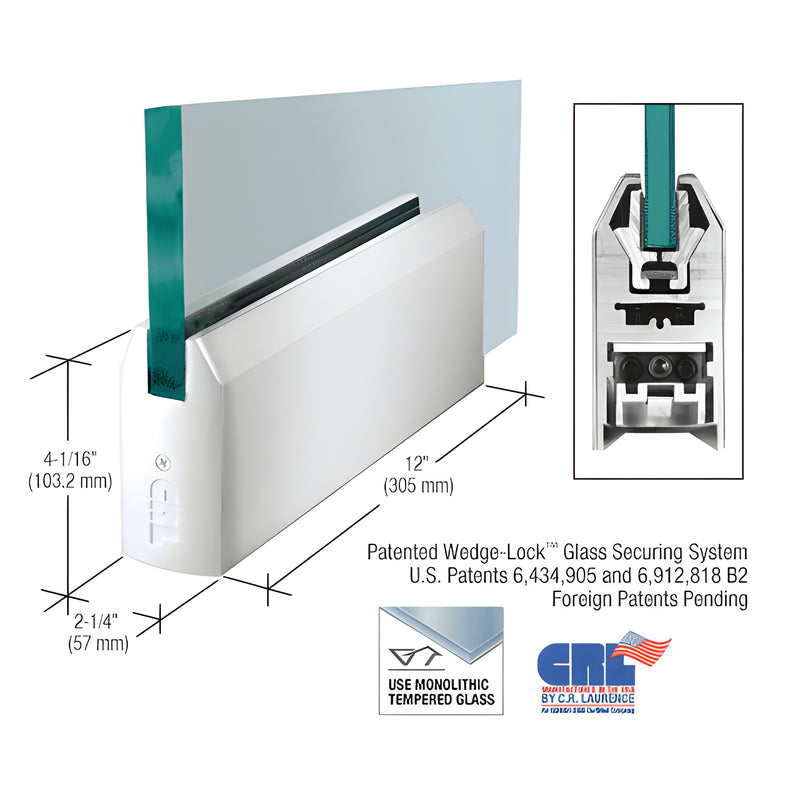

Polished Stainless 4" Tapered Door Rail No Lock for 5/8" Glass 12"

• 12" (305 mm) Length for 5/8" (10 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR4TPS58P) uses the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Designed for monolithic tempered glass doors, the system secures glass by applying downward pressure via two glass-retaining aluminum extrusions and a flat stainless steel bar tightened with socket head cap bolts. The angled extrusions engage an angled groove in the door rail, converting movement into high clamping force—over 900 lbs. in our 9" (228.6 mm) corner rail—delivering industry-leading glass retention for full-length rails as well.

NOTE: Actual Product Height: 4-1/16" (103 mm)

Key differentiators:

• Fastest installation time of any door rail system—experienced installers can prepare a door in under 10 minutes.
• Comes completely fabricated and ready-to-install with end caps installed.
• Adjustable Door Alignment Slide standard on both top and bottom rails—adjust door 1/8" (3.2 mm) toward or away from jamb without removing the door.
• Rigid single-component housing that resists shifting or loss of adjustment over time.
• Internal components do not require removal before installation; glass securing pads designed for longevity in extreme environments.

To adjust after installation, remove the end cap to access three socket head cap bolts: the center secures the slide; the outer two adjust the slide 1/8" (3.2 mm) in or out. Low-profile adjustable slides allow pivot placement other than the American Standard setback (2-3/4" / 69.8 mm) for vertically out-of-square openings.

NOTE: All Wedge-Lock® Door Rails feature the built-in jamb alignment block. Arms, pivots, closer arms, and keyed cylinders/thumbturns (if required) must be ordered separately to meet job requirements.

CRL Wedge-Lock® Door Rails are available in several standard architectural finishes and can be quoted in custom finishes and widths.
