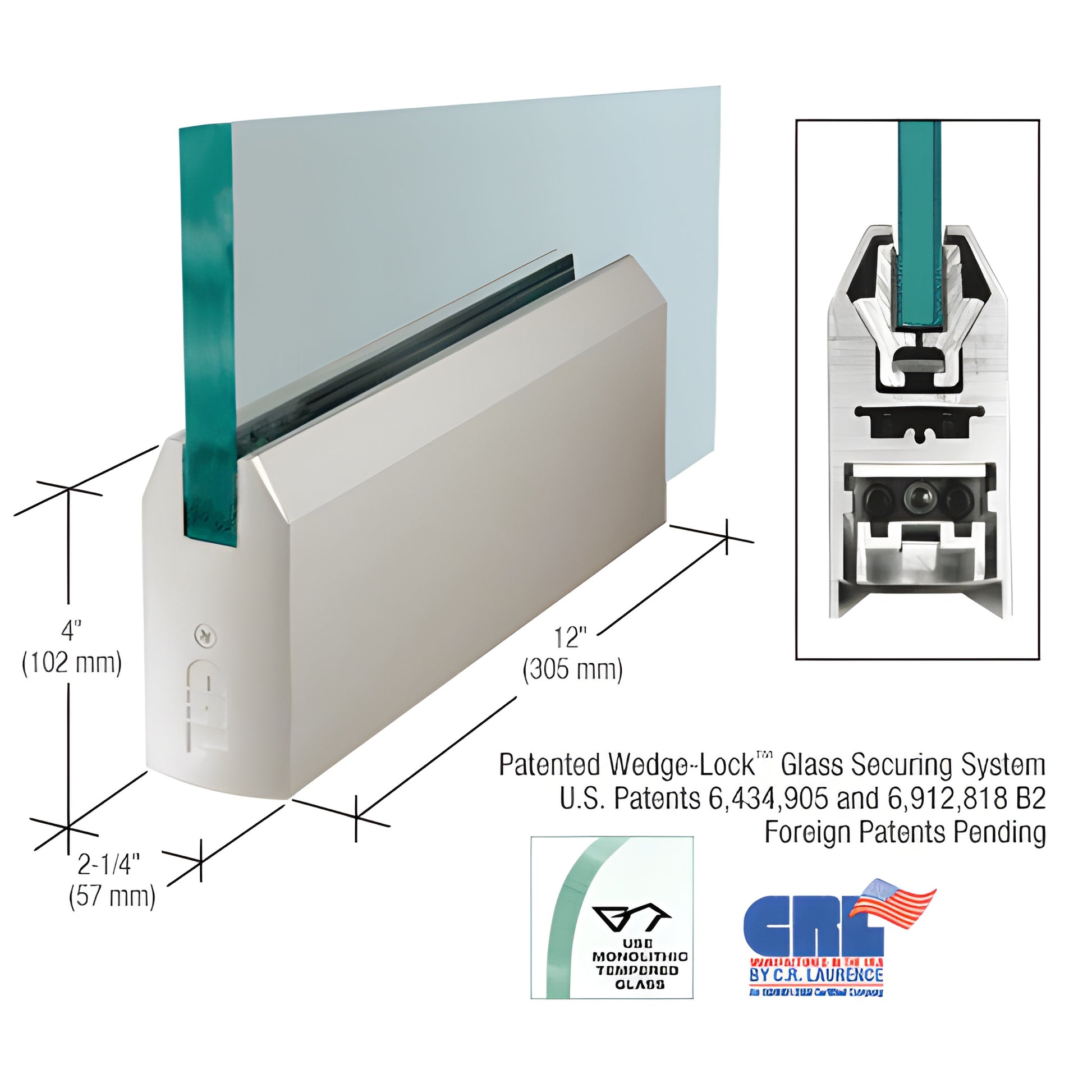

Satin Anodized 4 in Tapered DRS Door Rail 12 in for 5/8 in Glass No Lock

• 12" (305 mm) length for 5/8" (10 mm) glass
• For monolithic tempered glass
• Patented Wedge-Lock® glass securing system (secure, tool-tight wedge action)
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes; custom finishes available
• Available with and without locks
• Matching sidelite rails available

SKU: DR4TSA58P

Our CRL Wedge-Lock® Door Rail System uses the exclusive Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). This glass door rail for 5/8" tempered glass secures the glass by applying downward pressure via two aluminum glass-retaining extrusions and a stainless steel flat bar. As the bar is tightened with socket head cap bolts, angled extrusions engage an angled groove in the rail to create a high clamping force—more than 900 lbs. in the 9" (228.6 mm) corner rail—delivering proven security and stability for frameless glass doors.

Actual product height: 4-1/16" (103 mm)

The Wedge-Lock® system provides the fastest installation of any door rail in the industry—experienced installers can prepare a door in under ten minutes. Rails ship completely fabricated and ready-to-install with end caps installed. After installation, attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail.

Adjustable Door Alignment System: Standard on top and bottom rails. Allows ±1/8" (3.2 mm) adjustment toward or away from the jamb without removing the door. Access adjustments by removing the end cap to reveal three socket head cap bolts: center bolt secures the slide; outer bolts adjust position. Low-profile slide accommodates pivots set other than the American Standard 2-3/4" (69.8 mm), enabling fabrication for vertically out-of-square openings.

Other advantages of the Wedge-Lock® Door Rails:

• Accepts 3/8" to 3/4" (10–19 mm) glass
• Rigid single-component housing that resists shifting or loss of adjustment
• Internal components remain assembled—no disassembly required before installation
• Durable glass securing pads designed for extreme environments

All Wedge-Lock® Door Rails include a built-in jamb alignment block; arms and pivots must be ordered separately. Rails are available in standard architectural finishes and can be quoted in custom finishes and widths. Rail specifications, templates and hardware packages are available from CRL Technical Sales via e-mail.
