CRL 1-1/4" Tandem Steel Sliding Glass Door Roller with 3/4" Wide Housing

Roller Material (5)

Mild Steel
Nylon
Polymer
Stainless Steel
Steel

Overview

SKU	D1808
Sold as	1 Pack
Adjustable Roller	Yes
Housing Height	1
Housing Length	3-1/8
Housing Material	Steel
Housing Width	3/4
Number Of Rollers	Tandem
Roller Material	Steel
Roller Outside Dimension	1-1/4
Roller Profile	Concave
Roller Width	5/16
Weight Capacity	Not Rated

Description

Product Details

Tandem Rollers

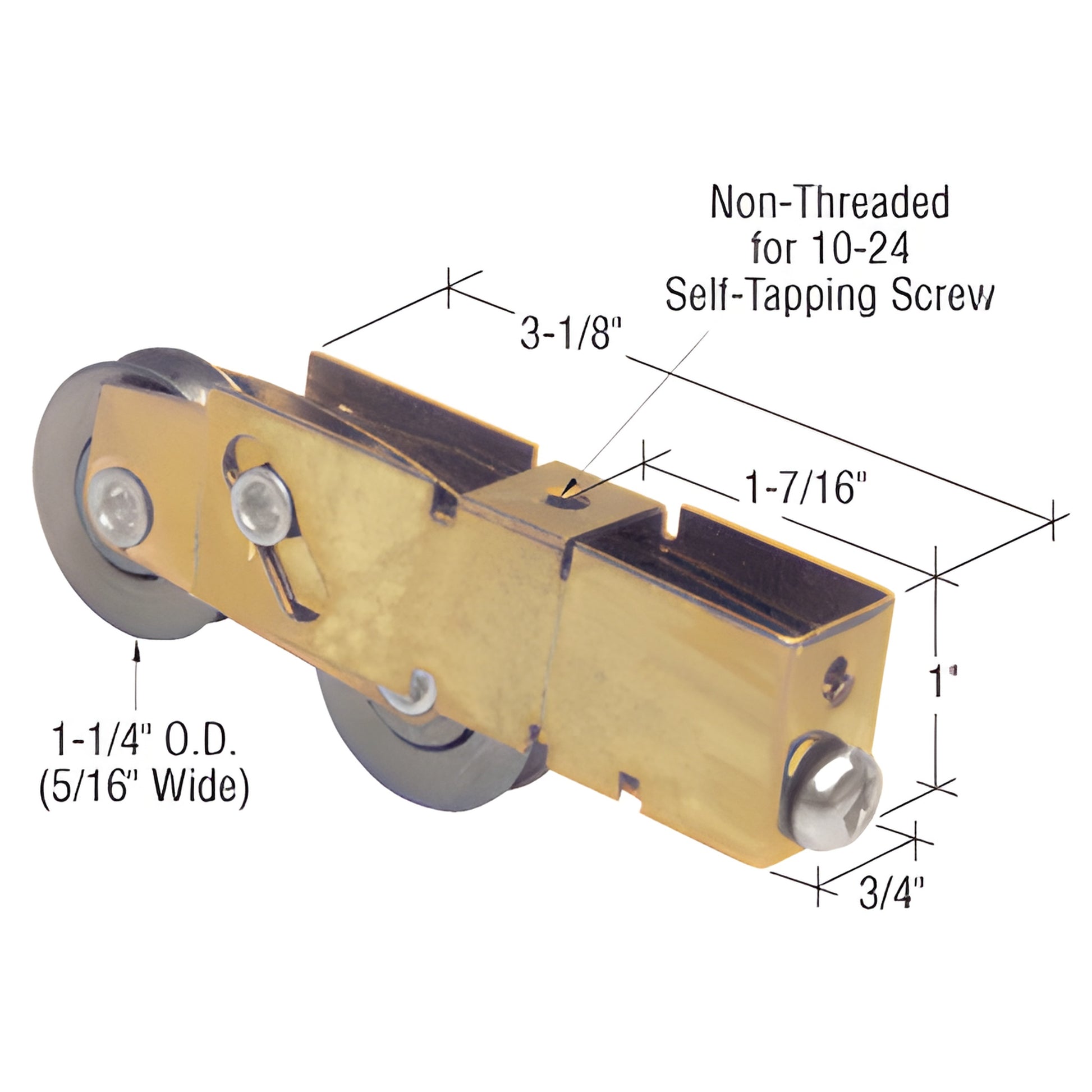

The adjustable steel housing assembly on the CRL Glass Door Roller is 3/4" (19 mm) wide and 1" (25 mm) high. The two steel ball bearing rollers are 1-1/4" (32 mm) in diameter. The top mounting hole is drilled but not tapped. The diameter is consistent for use with a #10-24 self tapping screw, not included. This assembly is used by several Canadian glass door manufacturers. One roller per package.
