Product Details
- Used to Mount Glass Panels to Walls, Brackets or Columns
- Durable High Tech Finish
- Use Monolithic Tempered Glass

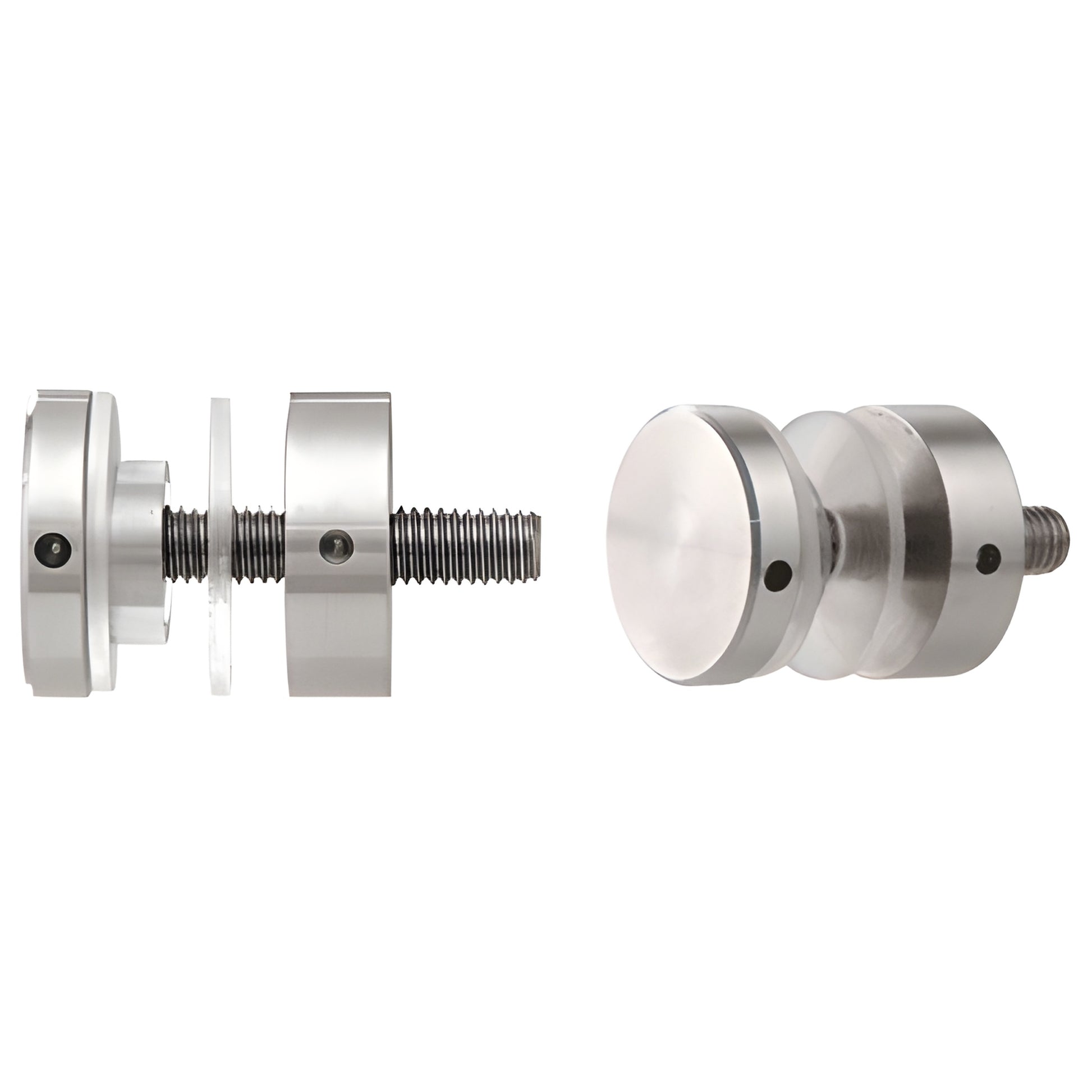

This CRL Stainless Steel Standoff Assembly is very popular in architectural applications to secure a lite of glass to a threaded metal bracket or column without the use of a frame. The glass is fabricated with the required holes, and then secured with the Standoff to create a frameless appearance. The Cat. No. SW30 Spanner Wrench is used to secure the Cap Assembly to the Standoff Base.
The 304 Grade Stainless Steel Standoff is designed to be used with panels ranging in thickness from 1/4" to 1/2" (6 to 12.7 mm). The maximum recommended panel size for 1/2" (12 mm) glass is 39" x 79" (990 mm x 2.01 m), with a maximum weight per attachment point of 55 lbs. (25 kg). A 5/8" (16 mm) drilled hole is required for installation.
NOTE: The SS30 Standoff is not compatible with other CRL Standoff Systems.
The SS30 Standoff Assembly Consists of
1 Cap - 1/4" (6 mm) Thick
1 Base - 3/8" (10 mm) Thick
1 Allen Screw - M8 Metric Thread x 1-3/4" (44 mm) Long
2 Vinyl Washers - 1-3/16" (30 mm) Diameter
1 Vinyl Sleeve - 3/16" (5 mm) Long
Product Warning:
Subject to strength of attaching substrate and glass deflection. Use additional attachment points as required.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
