CRL 105Β° Hold-Open Adjustable Spring Concealed Overhead Closer S-Pack
CRL 105Β° Hold-Open Adjustable Spring Concealed Overhead Closer S-Pack
Regular price
$262.71 CAD
Regular price
Sale price
$262.71 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL8770S
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1
Bottom Pivot Type
Dual Purpose Pivot
Closer Type
Overhead Concealed
Handing
Double Acting
Hold Open
105Β°
Includes
CRL6770, CRL8010FS, CRL8010S, CRL8010DP
Material
Aluminum
Maximum Door Weight
200
Package Type
Side Load S
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, CRL8010SCP, SLB3, SLS1
Similar
CRL8970GE
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
1/2
Type
Center Hung
UL Listed
Yes
Overview
- Suitable for doors 36"β42" to meet A.D.A. opening force requirements
- Adjustable dual-purpose bottom pivot set for floor or threshold mounting
- For doors with 1/2" (13 mm) top rail depth
- 5 Year Limited Warranty
- UL Listed

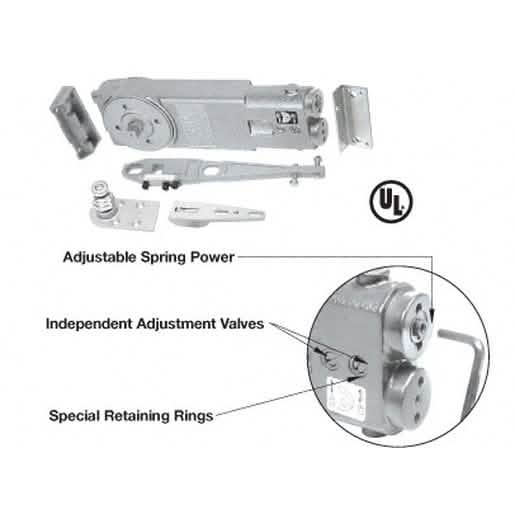

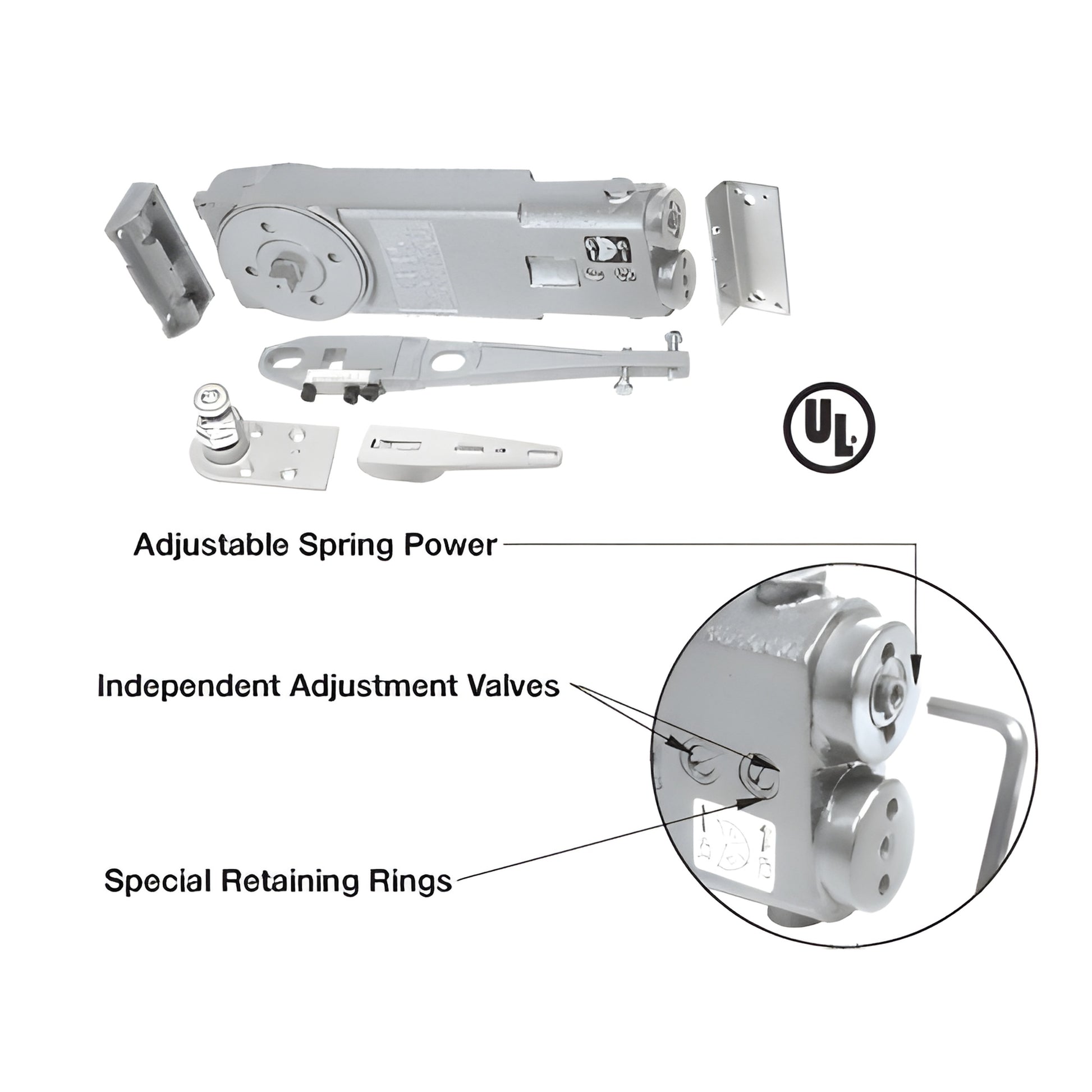

The CRL Adjustable Spring Power Overhead Concealed Door Closer (SKU: CRL8770S) is an ADA-capable, overhead concealed door closer engineered for retrofit and new installations. Available as a body-only unit with mounting clips to replace non-adjustable closers or as a complete package including door closer body, mounting clips, Type S side-load or Type A end-load arm, and your choice of DP-adjustable dual-purpose bottom pivot set or GE-pivot set. Ideal long-tail use cases: "ADA adjustable concealed door closer for storefronts", "overhead concealed door closer with adjustable spring power", and "retrofit concealed door closer for 1/2 inch top rail".
Adjustable Spring Power
Adjustable spring tension from a minimum 8-1/2 lb opening force up to medium spring sizes to match site conditions and ADA requirements.
Independent Adjustment Valves
Dual-action, non-critical valves let you independently set closing speed and latching speed for reliable door control.
Hold-open Options
Available in both 90Β° and 105Β° hold-open and no-hold-open models to suit traffic flow and security needs.
Compact, Standard Fit
Door closer bodies fit into standard 1-3/4" x 4" (44 x 102 mm) or larger extrusions for easy installation and retrofit.
Special Retaining Rings
Retaining rings prevent adjustment valve screws from being backed completely out of the body, improving serviceability and safety.
Important Notes
An auxiliary floor or overhead door stop is recommended to prevent damage from over-extension of maximum door swing. Closers set to comply with ADA opening forces may not provide sufficient spring power to control and close larger or unusually heavy doorsβverify site conditions and door size before final configuration.
