CRL 105Β° Hold-Open Concealed Overhead Door Closer, End-Load ADA
CRL 105Β° Hold-Open Concealed Overhead Door Closer, End-Load ADA
Regular price
$193.12 CAD
Regular price
Sale price
$193.12 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL8970A
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Arm Type
End Load
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1
Bottom Pivot Type
Dual Purpose Pivot
Closer Type
Overhead Concealed
Handing
Double Acting
Hold Open
105Β°
Includes
CRL6970, CRL8010FS, CRL8010A, CRL8010DP
Material
Aluminum
Maximum Door Weight
200
Package Type
End Load ADA A
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, ELB2, ELS1
Similar
CRL8770A
Spindle
1/2
Spring Size
8.5
Top Rail Depth
1
Type
Center Hung
UL Listed
Yes
Overview
- Center-hung end-load hardware package for doors with 1" deep top rails (1" / 25 mm)
- Adjustable dual-purpose bottom pivot set for floor or threshold mounting
- U.L. listed; Five Year Limited Warranty

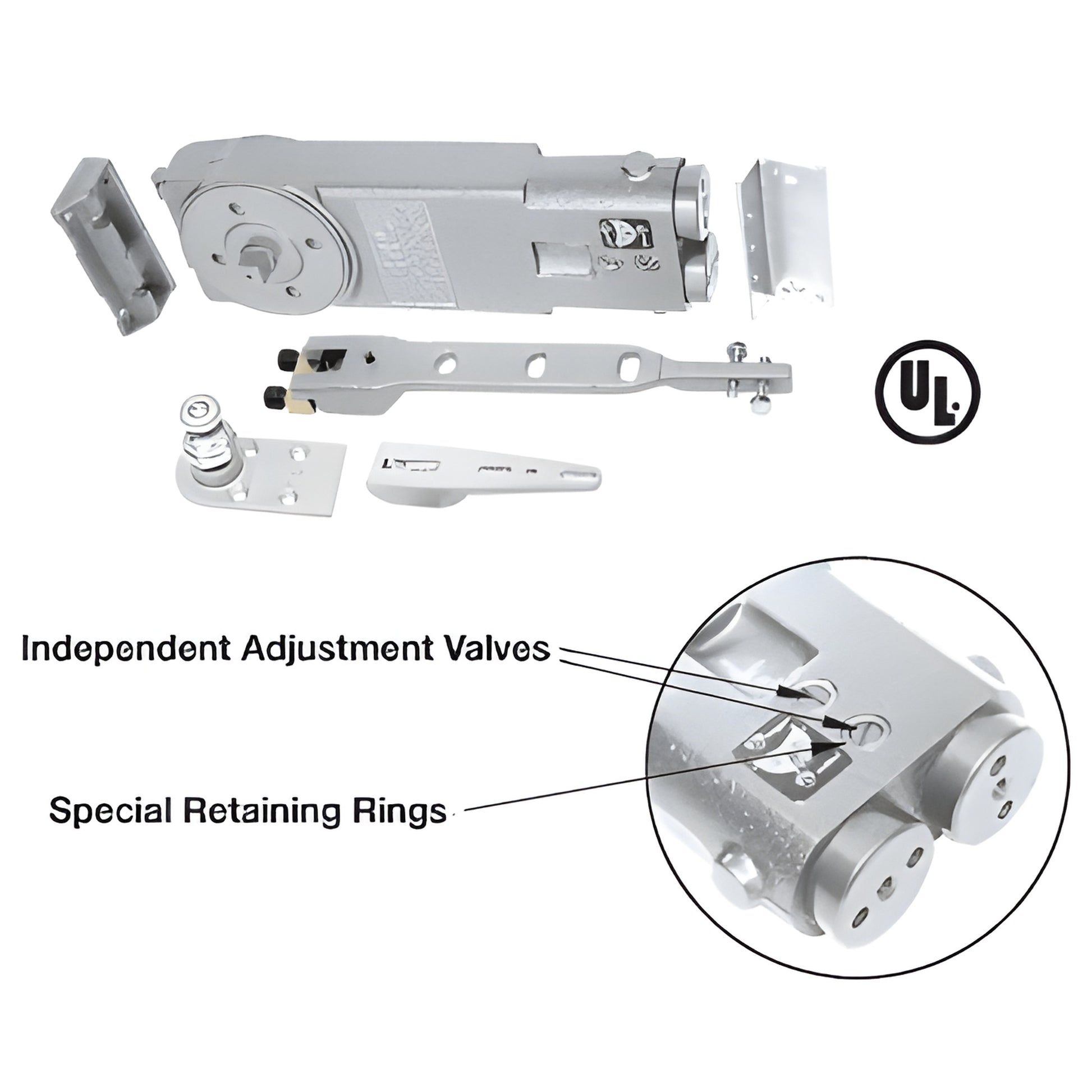

These CRL Overhead Door Closer Kits (SKU: CRL8970A) include a medium-spring door closer body, mounting clips, a Type "A" end-load arm, and a "DP" adjustable dual-purpose bottom pivot set. The closer features independent, dual-action adjustment valves to separately control closing and latching speeds. Available with 90Β° and 105Β° hold-open or no hold-open options. Door closer bodies fit standard 1-3/4" x 4" (44 x 102 mm) or larger extrusions. Additional spring sizes, hardware options, and concealed overhead accessories are available from CRL.
Independent Adjustment Valves
Non-critical valve control lets you adjust closing speed and latching speed independently for precise door control.
Special Retaining Rings
Retaining rings prevent adjustment valve screws from backing completely out of the door closer body, improving reliability.
Notes
An auxiliary floor or overhead door stop is recommended to prevent damage from over-extension of maximum allowable door swing. Although A.D.A. Series door closers meet A.D.A. opening force specifications, they may not provide sufficient spring power for some door sizes or site conditions.
Product Warning
Closers adjusted to meet A.D.A. opening forces may not control and close doors under all site conditions. Not for use on doors weighing over 200 lbs (91 kg) or wider than 36" (914 mm).
Order CRL8970A today to get a UL-listed center-hung overhead door closer kit with adjustable dual-purpose bottom pivot set β contact us or add to cart now.
